Atomos Ninja V Thin 5 inch 4Kp60 HDR Monitor Recorder

SKU: NINJAV
UPC: 814164021173
Inventory: 100+ In Stock
MPN: ATOMNJAV01
$599.00 MSRP
$599.00 MAP

Atomos Ninja V Thin 5 inch 4Kp60 HDR Monitor Recorder

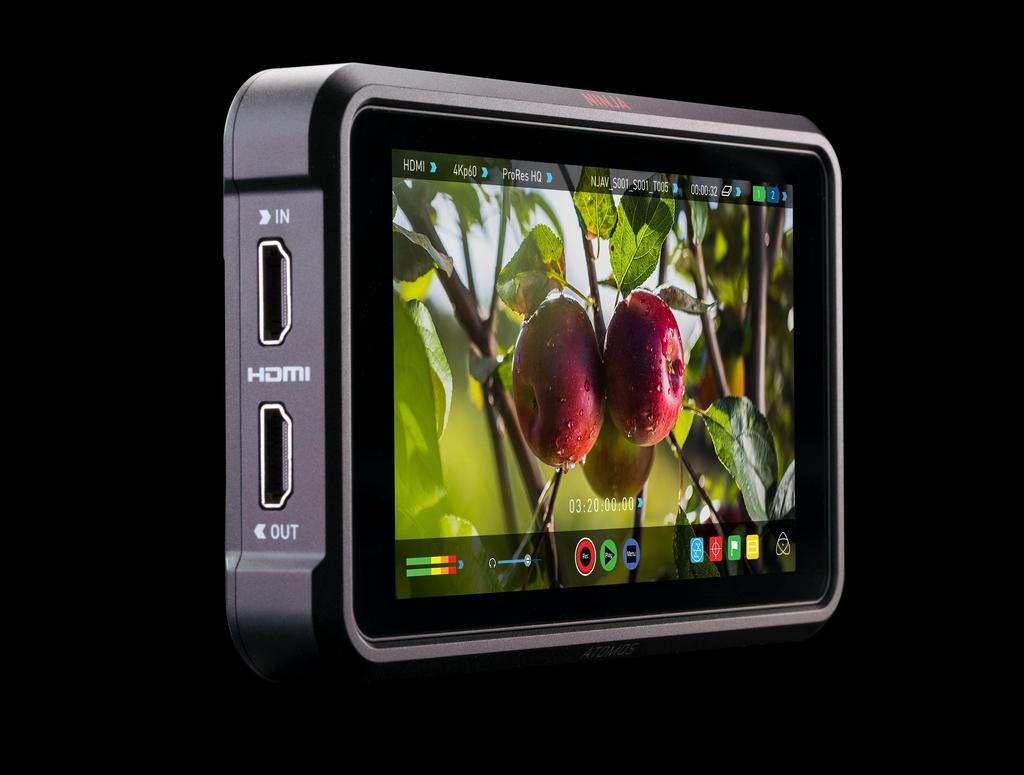

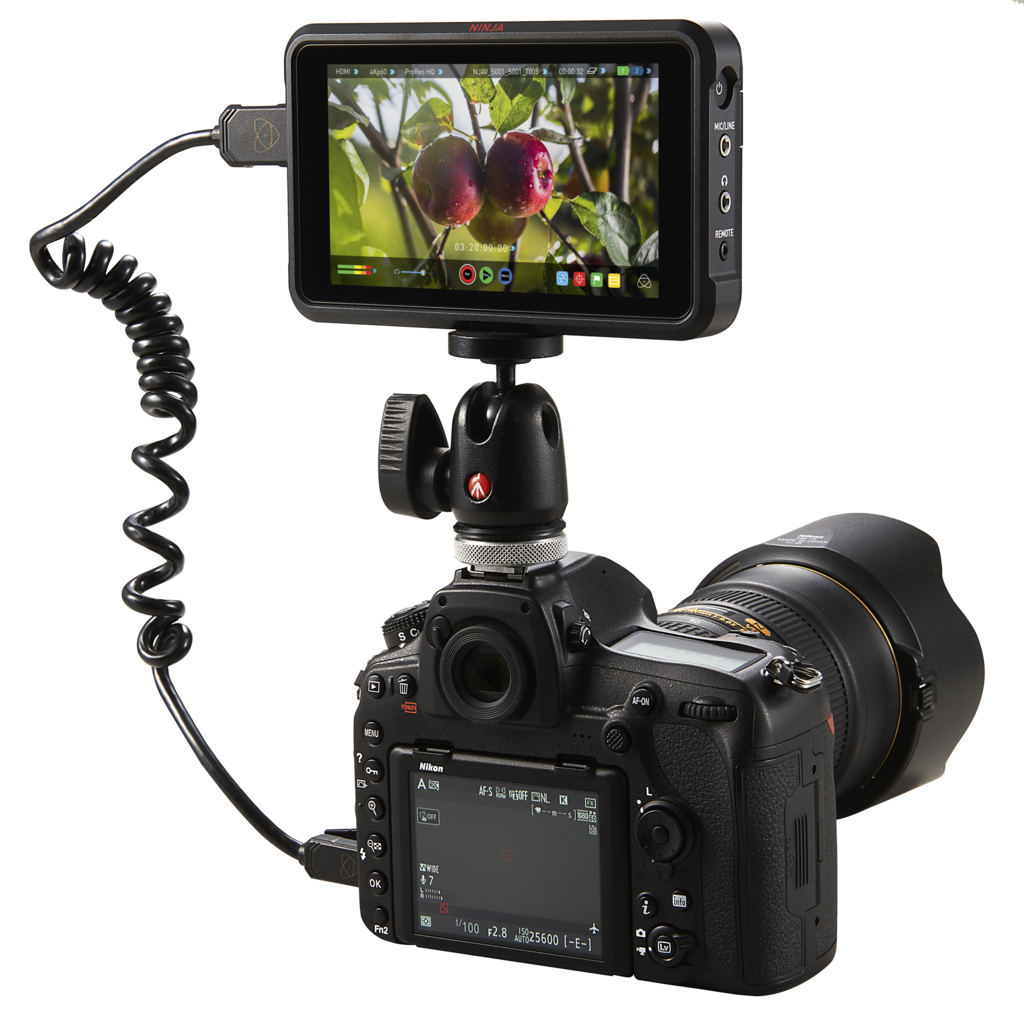

Ninja V is a small form factor, 1 in. thick 5 in. monitor recorder that offers amazing features to DSLR/Cinema users.

Record up to 4Kp60 10-bit HDR video direct from your camera's sensor, over HDMI 2.0. Store edit-ready ProRes or DNxHR on affordable SSD drives and bypass your cameras internal compression and record time limits. 1TB will give you 2.5hrs 4K on tiny AtomX SSDmini

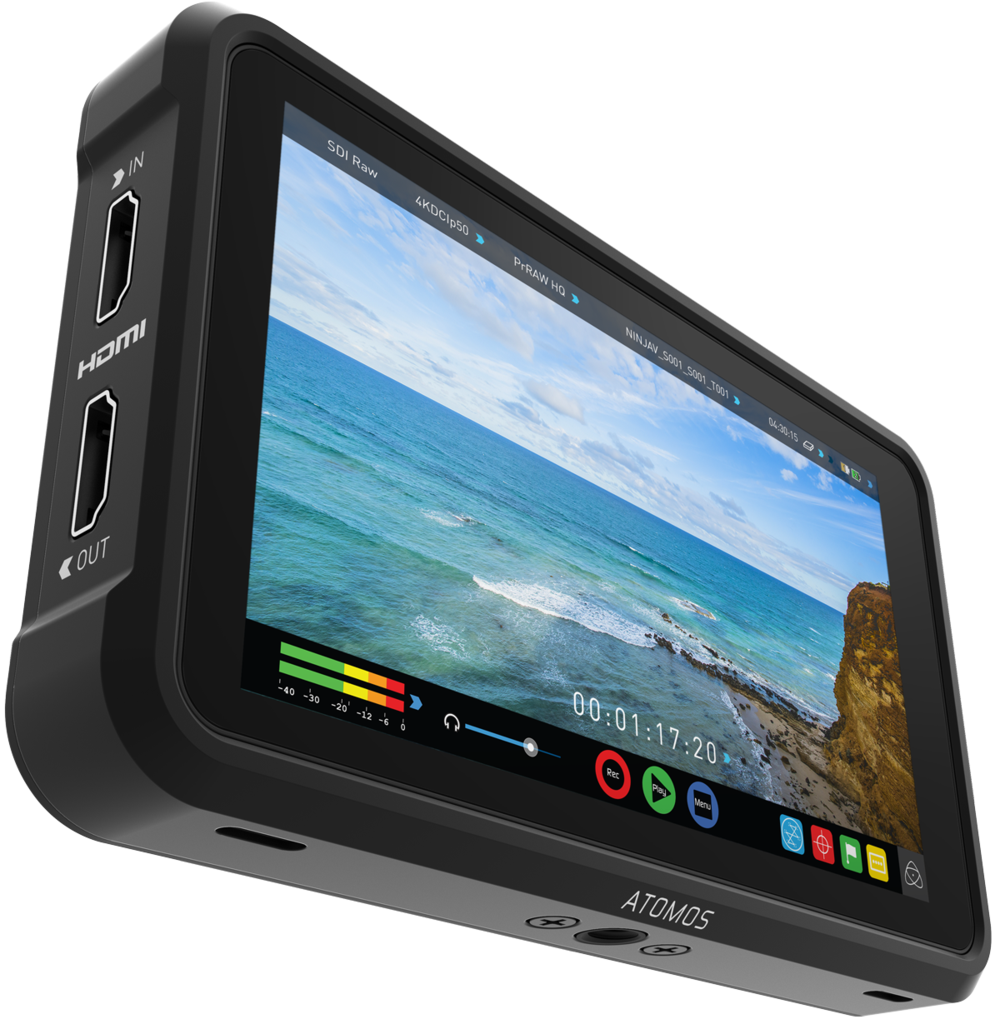

The stunningly bright 5.2-inch 10-bit HDR monitor has an astounding 1,000 nits of output. It’s a sleek 1” (2.5cm) aluminium body, is crafted for maximum durability, weighs in at just 11oz (320g), and attaches to any camera rig easily.

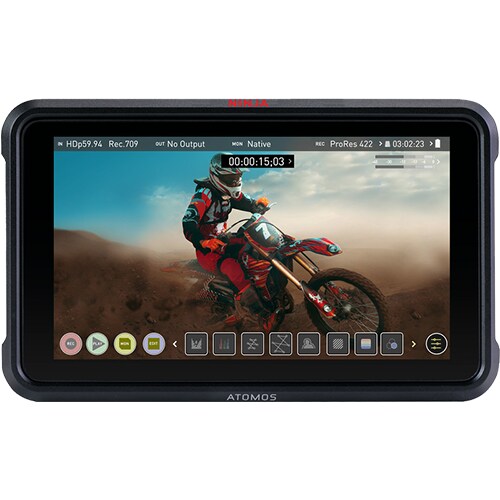

The Ninja screen displays a stunning 10+ stops of dynamic range in realtime from Log/ PQ/HLG signals. Clearly see your images in daylight on the near edge-to-edge anti-reflection screen. The display can be calibrated for perfect color accuracy every time, with playout to HDR or SDR TV sets.

4kp60 or HDp240 Game Recording just became fun and simple from any HDMI gaming unit. Place the Ninja V in-between your unit and the TV, and record for hours to off-the-shelf SSD drives. Auto HDR flags mean perfect TV set up every time! Show off your skills or check your game development on the most stunning video recorder ever built!

AtomOS gives simple tools for accurate set up and one-touch operation ensuring a great record each take. Recording isn't complete until checked. AtomOS gives speedy playback, slow motion and frame by frame analysis for instant review.

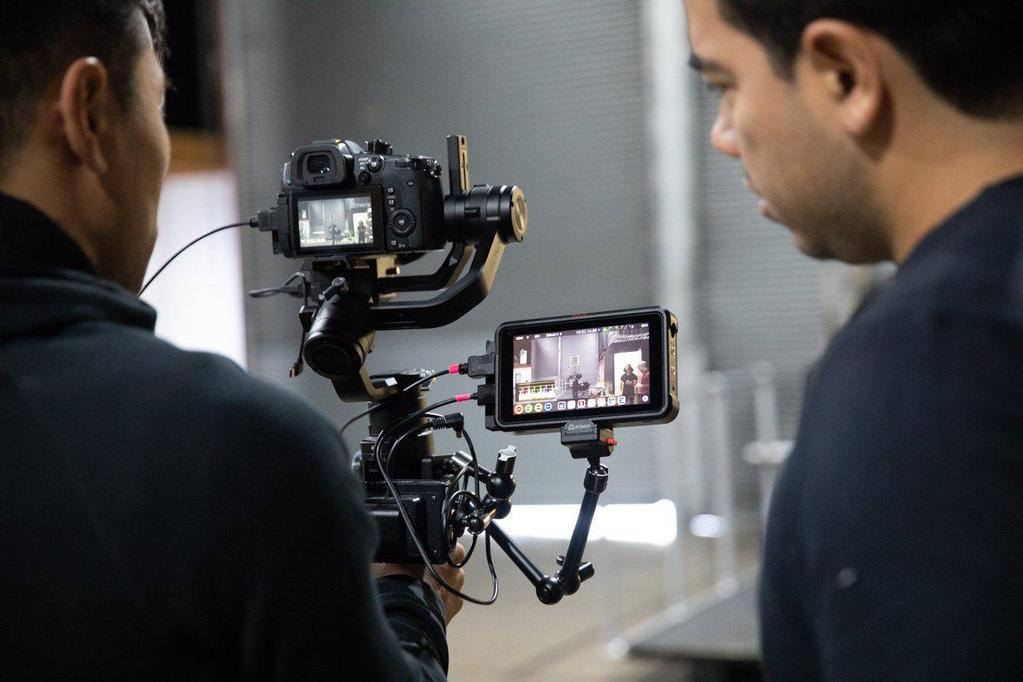

Any production large or small needs high quality viewing. Even if you aren’t recording, the Ninja V is the best monitor available today. Audio can be input directly from the camera digitally via HDMI, or fed in analogue via a stereo 3.5mm line/mic socket – especially useful for cameras that do not have a mic input.
Weight
  • Without batteries & media - 320g / 11.28oz
  • With batteries, media & stand - 6.0kg / 13.2lb
  • Dimensions (W x H x D mm) - 151 x 91.5 x 31mm
Construction
  • Aluminum alloy chassis with ABS polycarbonate back plate
  • Mounting points1/4-20 UNCscrew mount; 1x top, 1x bottom
Power
  • Operating power - 10 - 19W
  • Compatible batteries - NP-F series and supporting accessories
  • Input voltage (battery) - 6.2V to 16.8V
  • Battery time (based on 2 x 7.4V)5200mAh - up to 2hrs (monitor & record 4K +60p)
  • 7800mAh - up to 3hrs (monitor & record 4K 60p)
  • DC In
  • Continuous power
Touchscreen
  • Size - 5”
  • Resolution - 1920 x 1200
  • PPI - 427
  • Aspect ratio - 16:9 native
  • Color Gamut - REC709 HDTV
  • Look up table (LUT) support - 3D LUT (.cube format)
  • Anamorphic de-squeeze - 2x, 1.5x, 1.33x, Panasonic 8:3
  • Technology - SuperAtom IPS panel (capacitive touch), calibration to Rec.709 with optional calibration unit
HDR
  • AtomHDR - Yes
  • Supported Log formats - Sony SLog2 / SLog3, Canon CLog / CLog 2, Arri Log C,
  • Panasonic Vlog, JVC JLog, Red LogFilm
  • HDR Recording (Gamut)Sony SLog / SLog2 / SLog3, Canon CLog / CLog2 / Clog3,
  • Arri Log CEI160 / LogCEI200 / LogCEI250 / LogCEI320
  • / LogCEI400 / LogCEI500 / LogCEI640 / LogCEI800 /
  • LogCEI1000 / LogCEI1280 / LogCEI1600, Panasonic Vlog,
  • JVC JLog1, Red LogFilm / Log3G10 / Log3G12, FujiFilm
  • Flog, PQ10k, HLG
  • HDR Monitoring (Gamma)Sony SGamut / SGamut3 / SGamut3.cine / BT2020
  • Canon Cinema / DCI P3 / DCI P3+ / BT2020
  • Panasonic V Gamut
  • Arri Alexa Wide Gamut
  • Rec709
  • JVC LS300
  • Red DragonColor / DragonColor2 / RedColor2 /
  • RedColor3 / RedColor4 / RedWideGamut
  • HDR Monitoring (Gamut)Wide Color Gamut (SGamut / SGamut3 / SGamut3.cine / Canon Cinema / BT2020 / DCI P3 / DCI P3+ / Panasonic V Gamut / Arri Alexa Wide Gamut) mapping to Rec709 on screen Wide Color Gamut (SGamut / SGamut3 / SGamut3.cine / Canon Cinema / BT2020 / DCI P3 / DCI P3+ / Panasonic V Gamut / Arri Alexa Wide Gamut) mapping to Rec709 / BT2020 / DCI P3 on loop out
  • Bit depth10-bit (8+2 FRC)
  • Brightness1000nit (+/- 10% @ center)
  • HDR input (PQ/HLG)
  • HDR output (PQ/HLG)Yes / Yes
Video Input/Loop Out
  • HDMI - 1 x HDMI (2.0)
  • Signal - Uncompressed true 10-bit or 8-bit 422
  • (camera dependent)
Video Output (Play Out)
  • HDMI - 1 x HDMI (2.0)
  • Signal - Uncompressed true 10-bit or 8-bit 422
  • (playback file dependent)
  • Supported Loop Out Formats
  • HDMI to HDMI720p 50/60, 1080i 50/60,
  • 1080p 24/25/30/50/60/100/120
  • 2160p 24/25/30/50/60

AtomXpansion Video Audio Power Extender In/Out
  • Video - Up to 4Kp60
  • Audio - 12 channels digital 24-bit 96KHz
  • Power - 5V-16.6V
  • Supported Codecs & Frame Rates (Record & Playback)
  • Video to
  • ProRes / DNxHR

  • (DNx utilizes a .MOV wrapper)

  • Apple ProRes HQ, 422, LT AVID DNxHR HQX. HQ, SQ, LB
  • 4K DCI; 24/25/30/50/60p
  • 4K UHD; 24/25/30/50/60p
  • 2K
  • 1080p; 24/25/30/50/60/100^/120^
  • 1080i; 50/60i, 720p; 50/60p
  • Onboard Processing
  • Pulldown removal24/25/30pSF > 24/25/30p (2:2 pulldown)
  • 60i > 24p (3:2 pulldown)
  • 4K UHD downscale for HD monitoringYes - Loop-out and playback
  • Audio In/Out (48kHz PCM Audio)
  • HDMI2 or 8ch 24-bit, camera dependent
  • AudioLine in / Mic in / Headphone out 2ch 48kHz 24-bit
  • Headphone out3.5mm
  • Built-in speakers - Yes
  • Remote Start/Stop
  • HDMI - Auto HDMI Trigger
  • Supported Protocols - Canon, Sony, Atomos Open Standard
  • Other - LANC control - Slave
  • Playback
  • Playlist / Genlock / LTCYes / - / -
  • CDNG (Recorded content)N/A
  • ProRes (Recorded content)All recorded files can playback. Playback in slow motion.
  • DNxHR / DNxHD (recorded content)All recorded files can playback. Playback in slow motion.
  • Recording
  • Pre-roll recordYes (HD 8s, 4K 2s)
  • Custom timelapse - Yes
  • Meta data tagging - Yes (10 tags available)
  • Supported media - 2.5” SSD/HDD compatibility depends on recording format, resolution and frame rate.
  • Master caddy case - Master Caddy II (included)
  • 75mm x 105mm x 12mm
  • Master caddy dock - 2.5” SATA to USB 2.0/3.0
  • Supported applicationsSupported Applications FCPX/FCP7+ / Media Composer
  • 5.0+ / Premiere 5.5+
  • EDIUS 6.0+ / Vegas Pro 10+ / Lightworks /
  • Autodesk Smoke 2015
  • XML support - FCPX XML native, FCPX/Adobe limited supported with 3rd party conversion tools
  • Ninja V
  • 1 x Battery eliminator
  • 1 x international DC power supply
  • 1 x Master Caddy II
  • Quick Start Guide
