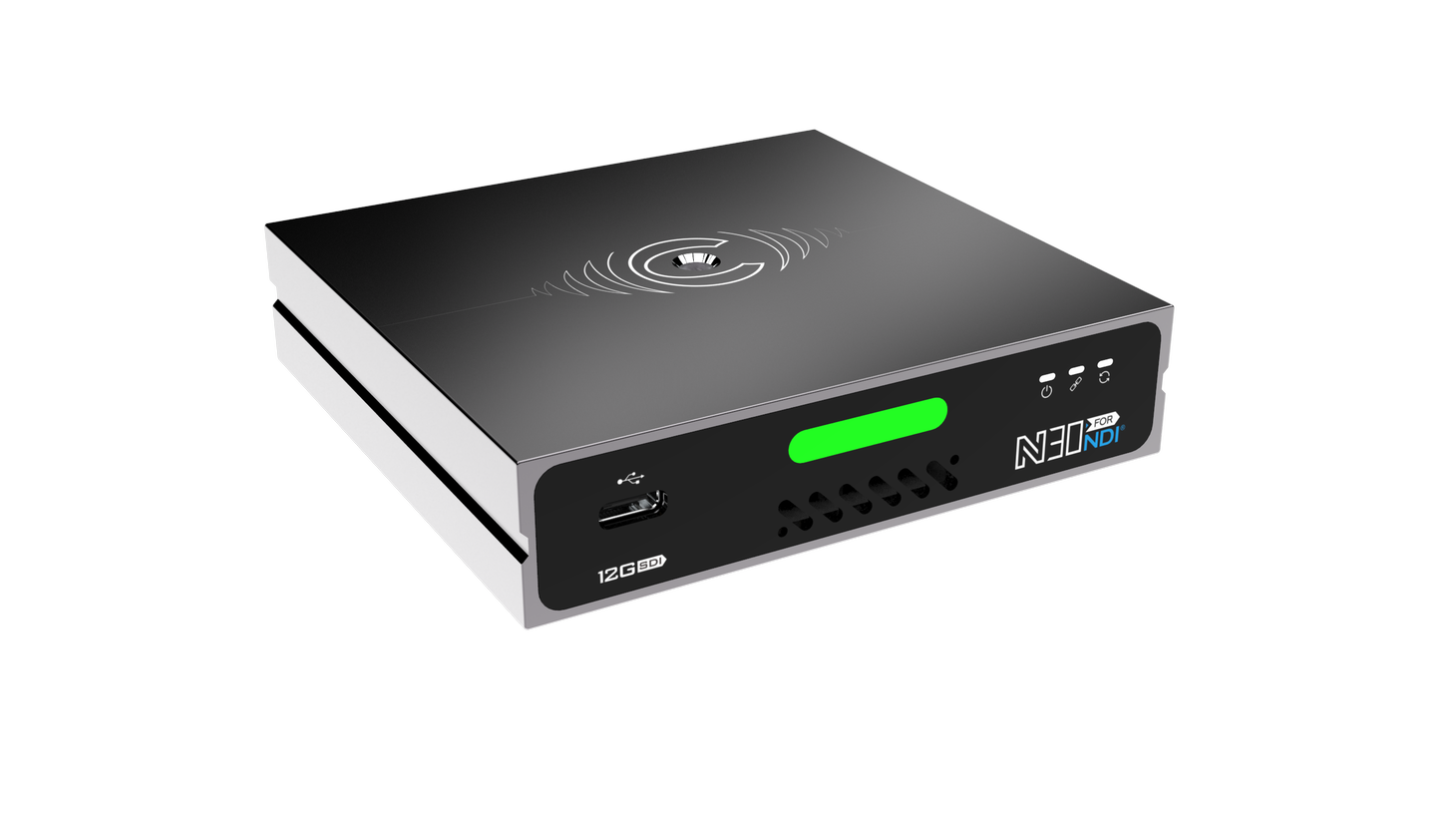

Kiloview N30 12G SDI Full NDI Encoder or Decoder
A Real Professional Broadcast-Grade NDI Converter

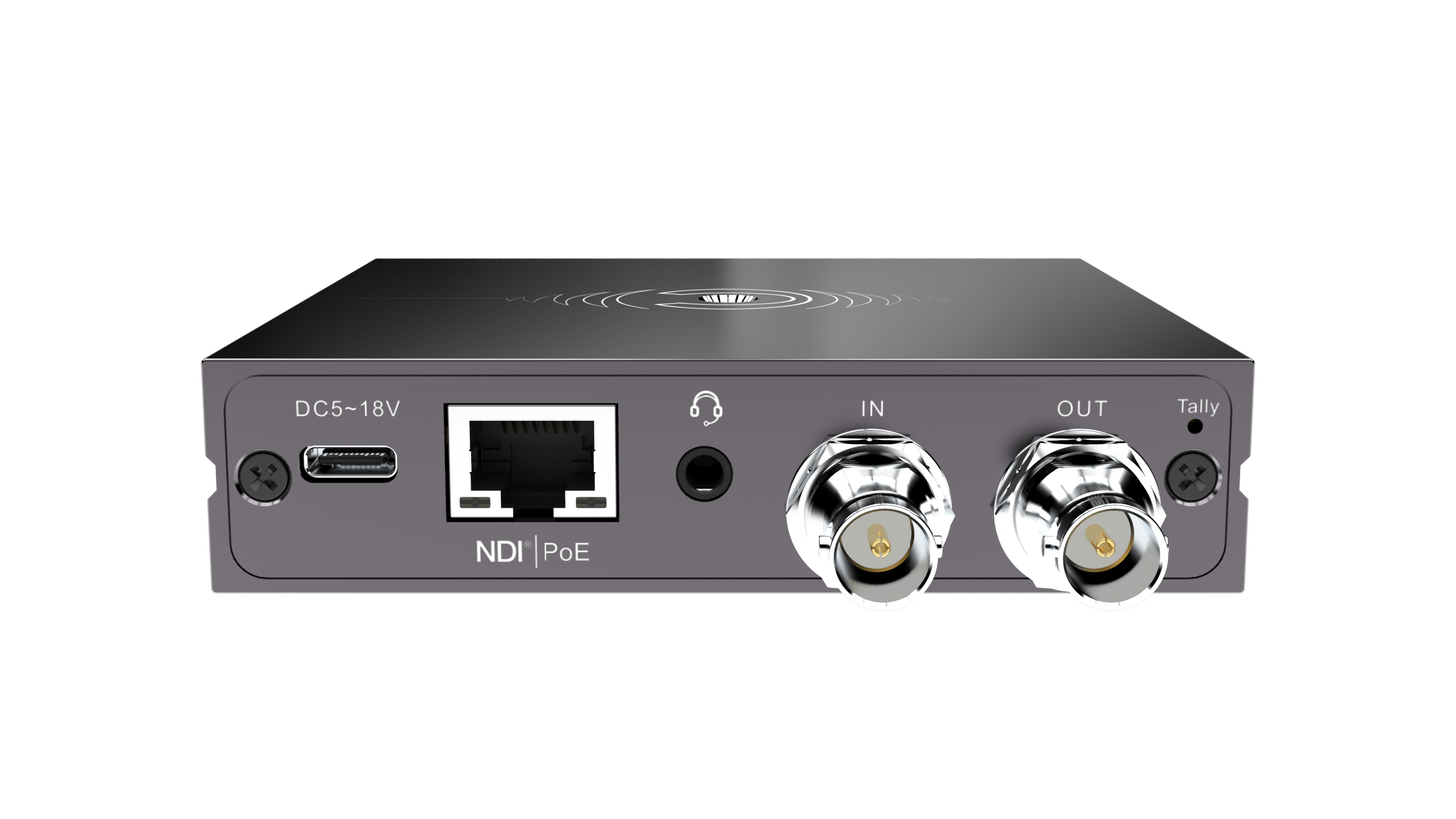

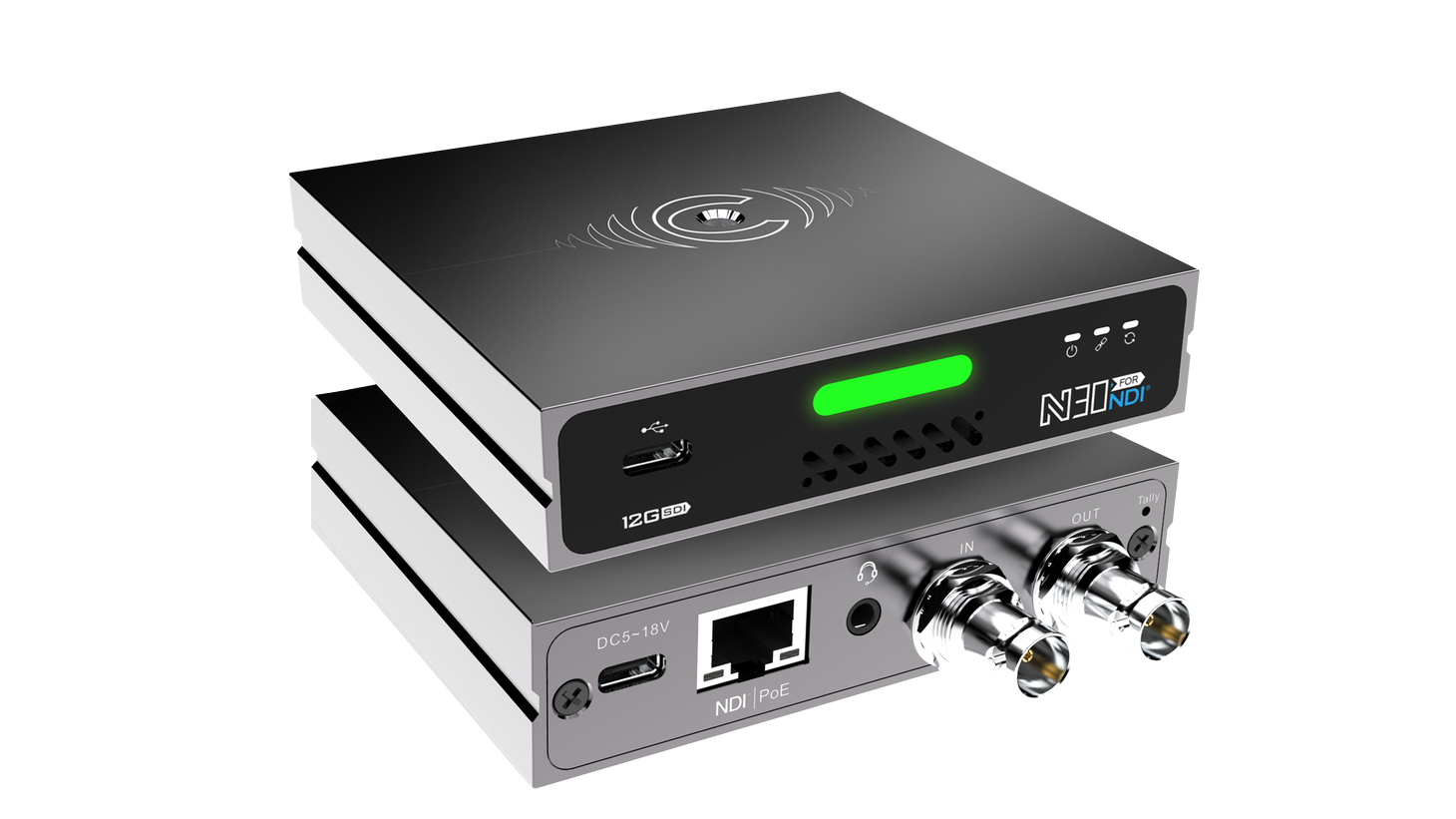

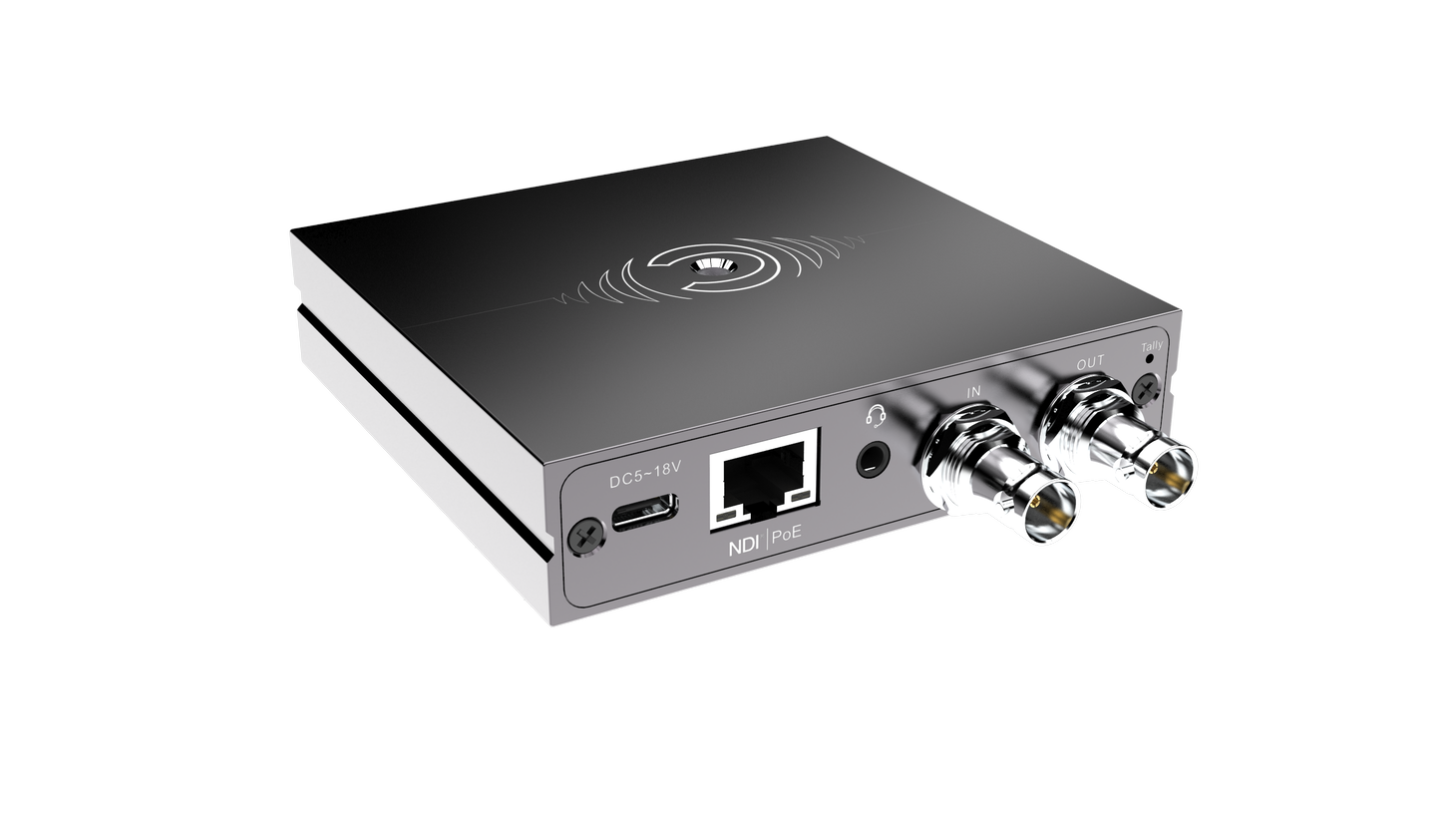

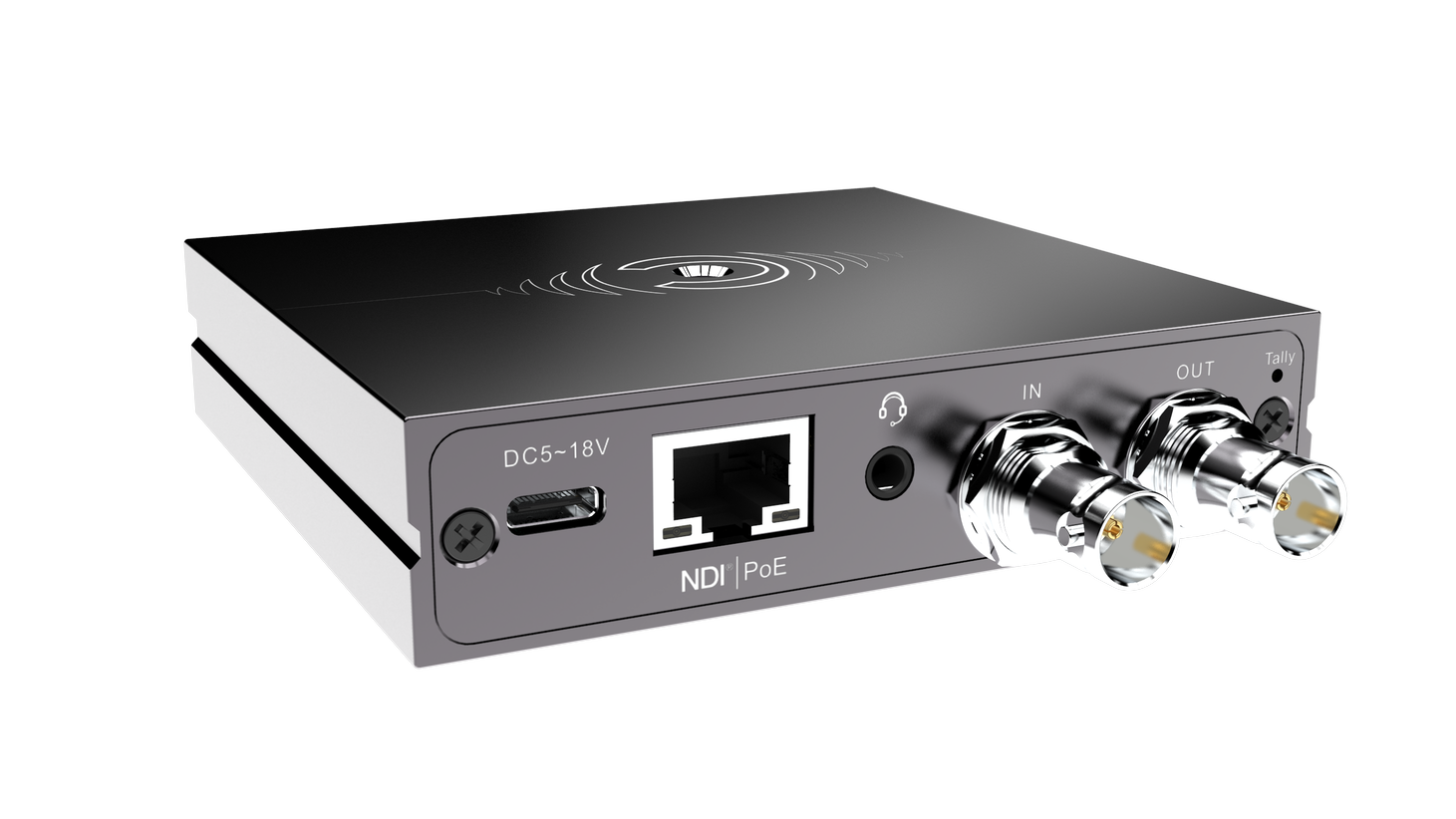

Kiloview N30 12G-SDI/Full NDI converter is a bi-directional converter that supports 12G-SDI video input (encoder) to Full NDI with 12G-SDI loop through for view on monitor, or 12G-SDI video output (decoder) from Full NDI.
Featured with powerful functions such as PoE, built-in big tally light, PTZ control, 3.5mm audio line in/out, multi-channel audio, intercom functions, the N30 is your best choice to get access to the fabulous NDI world for professional broadcast-grade IP production.
Why NDI?
The NDI protocol is a high-performance standard that enables anyone to use real-time, ultra-low-latency video on existing IP video networks.
NDI Webcam Input
Easily designate Kiloview NDI encoders as the video input source in popular desktop video applications like Google Hangouts, GoToMeeting, Skype, Skype for Business, WebEx, Zoom, Teams and more using the free NDI® webcam input tool.
Real Professional Broadcast-Grade NDI Converter
The N30 supports up to 12G-SDI 4K video input to Full NDI and loop through for monitoring, at the same time it supports full NDI to 12G-SDI output. It’s a real broadcast-grade NDI converter.
It's an NDI encoder, it's also an NDI decoder
Both NDI encoding and decoding can work on this device, you got two in one. Switching the working mode on the UI to choose the mode you need; it can easily meet all your different workflows.
*N30’s encoding and decoding functions are mutually exclusive, and cannot be used at the same time
Seamless Switching without Lagging
When decoding NDI sources, with Kiloview unique technology, there will be no lag when switching the output NDI videos.
Control with a USB keypad
In decoder mode, you can preset the NDI sources from number 0~9. Connect the decoder with a USB keypad, you can easily choose the output source by a single press.
Or you can even use the USB Keypad to control a PTZ camera- the cheapest PTZ Keyboard you can get.
Audio and Intercom
Kiloview N30 supports 3.5mm analog audio line in/out or embedded audio. Up to 16CH audio can be supported. It also supports voice intercom by USB headset between devices directly, or with Kiloview Intercom server.
Video Source Auto-detecting
Thanks to the NDI discovery server, your video can be easily found and connected by users from another network when registered to the designated server.
PTZ Control and Big-sized Tally
Kiloview N30 supports PTZ control through USB to serial RS232/485/422. It also supports PTZ control over IP, no extra cable required.

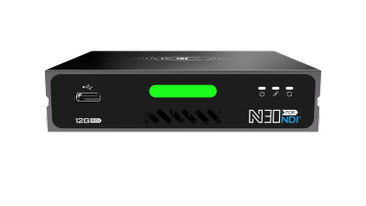

N30 has a big-sized while bright and distinct Tally for PVW/PGM indication – all is to make perfect cooperation for your team.
Power it as you wish
With PoE, the N30 can be powered with a single cable connection. With the design of wide DC input range from 5V to 18V, it can also be easily powered by USB power or camera battery.
Various mounting methods
Exquisite design, small and light-weight, which can be easily attached to the camera by a threaded screw.
Rack mounted NDI Converter
The groove design on both sides facilitates the rackmount installation in 1U/3U
Kiloview N30 12G-SDI/Full NDI converter is a bi-directional converter that supports 12G-SDI video input (encoder) to Full NDI with 12G-SDI loop through for view on monitor, or 12G-SDI video output (decoder) from Full NDI.
Featured with powerful functions such as PoE, built-in big tally light, PTZ control, 3.5mm audio line in/out, multi-channel audio, intercom functions, the N30 is your best choice to get access to the fabulous NDI world for professional broadcast-grade IP production.
Why NDI?
The NDI protocol is a high-performance standard that enables anyone to use real-time, ultra-low-latency video on existing IP video networks.
NDI Webcam Input
Easily designate Kiloview NDI encoders as the video input source in popular desktop video applications like Google Hangouts, GoToMeeting, Skype, Skype for Business, WebEx, Zoom, Teams and more using the free NDI® webcam input tool.
Real Professional Broadcast-Grade NDI Converter
The N30 supports up to 12G-SDI 4K video input to Full NDI and loop through for monitoring, at the same time it supports full NDI to 12G-SDI output. It’s a real broadcast-grade NDI converter.
It's an NDI encoder, it's also an NDI decoder
Both NDI encoding and decoding can work on this device, you got two in one. Switching the working mode on the UI to choose the mode you need; it can easily meet all your different workflows.
*N30’s encoding and decoding functions are mutually exclusive, and cannot be used at the same time
Seamless Switching without Lagging
When decoding NDI sources, with Kiloview unique technology, there will be no lag when switching the output NDI videos.
Control with a USB keypad
In decoder mode, you can preset the NDI sources from number 0~9. Connect the decoder with a USB keypad, you can easily choose the output source by a single press.
Or you can even use the USB Keypad to control a PTZ camera- the cheapest PTZ Keyboard you can get.
Audio and Intercom
Kiloview N30 supports 3.5mm analog audio line in/out or embedded audio. Up to 16CH audio can be supported. It also supports voice intercom by USB headset between devices directly, or with Kiloview Intercom server.
Video Source Auto-detecting
Thanks to the NDI discovery server, your video can be easily found and connected by users from another network when registered to the designated server.
PTZ Control and Big-sized Tally
Kiloview N30 supports PTZ control through USB to serial RS232/485/422. It also supports PTZ control over IP, no extra cable required.
N30 has a big-sized while bright and distinct Tally for PVW/PGM indication – all is to make perfect cooperation for your team.
Power it as you wish
With PoE, the N30 can be powered with a single cable connection. With the design of wide DC input range from 5V to 18V, it can also be easily powered by USB power or camera battery.

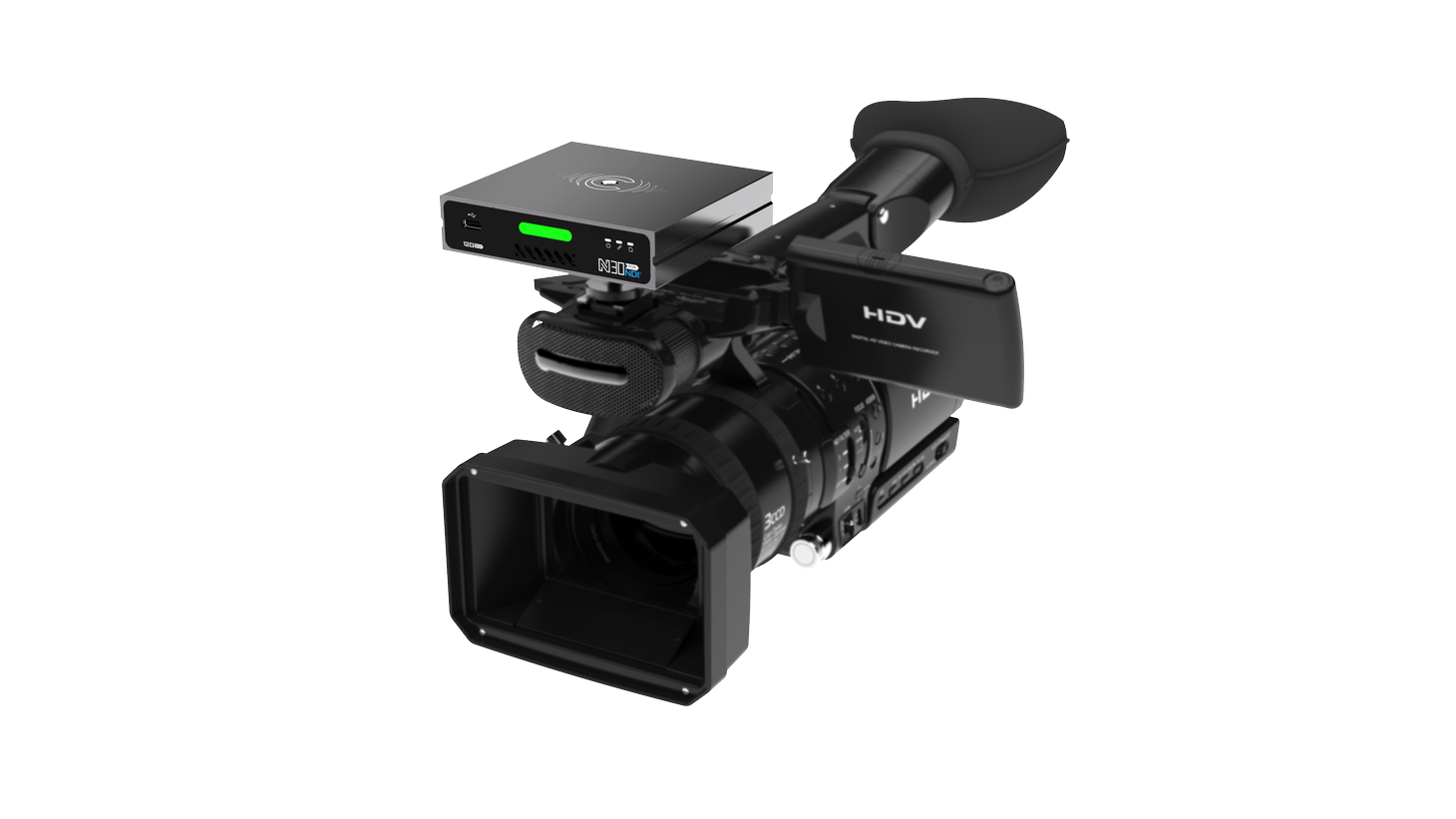

Various mounting methods
Exquisite design, small and light-weight, which can be easily attached to the camera by a threaded screw.
Rack mounted NDI Converter
The groove design on both sides facilitates the rackmount installation in 1U/3U
Compatible with TriCaster, vMix, OBS and other platforms, so your video production can be carried out anytime, anywhere.
Full NDI Bandwidth Requirement
Resolution
Parameters
Video input
Full NDI Bandwidth Requirement
Resolution
- Default Bitrate
- 250Mbps
- 200Mbps
- 125Mbps
- 90Mbps
Parameters
Video input
- 1*12G-SDI
- 1*12G-SDI（Loop or decoding output）
- 1*3.5mm
- 1*RJ45 1000Mbps Ethernet port (with PoE)
- Up to 4Kp60 (backward compatible with SD/HD/VESA)
- 1*NDI® encoding or 1x NDI® decoding
- FULL NDI HD encoding, typical bitrate: 250Mbps@4K60 ,125Mbps@1080p60
- Tally light, power light and status connection light
- PoE, DC, D-Tap (camera) optional. 5-18V wide range supported
- Customization
- Network PTZ and Serial Port
- Support
- Web UI and remote management with KILOVIEW KiloLink Server
- 6w
- -20~40℃ (Storage temperature: -20~70℃)
- 110*95*23 mm (4.33”*3.74”*0.91”)
