PTZOptics Studio Pro 12x Camera

SKU: PTSTUDIOPRO

PTZOptics Studio Pro 12x Camera
Create Content Your Way
The Studio Pro is an all-in-one content creation and livestreaming solution featuring 12X optical zoom, 72.5° FoV, a portrait and landscape toggle switch, empowering users to connect with their audiences however they watch. The camera’s time-of-flight sensor gives the camera quick focus capabilities, while its advanced focus settings allow users to achieve a bokeh effect for a more unique and creative visual experience.

Versatile Output Options

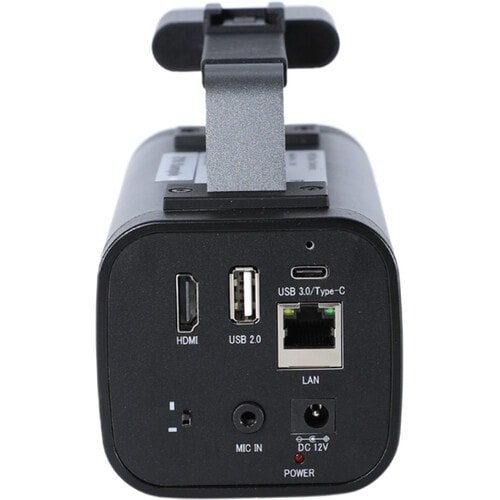

With simultaneous HDMI, USB, and IP output capabilities, the Studio Pro can integrate into even the most complex setups—much more than your typical DSLR can do. The camera comes native with NDI®|HX, so no additional license is needed to access your camera over the network.

All-in-One Solution

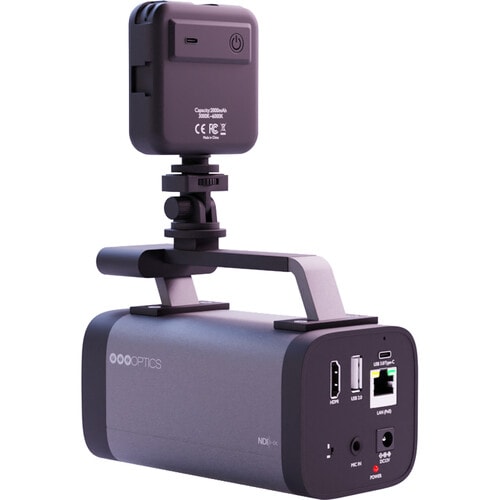

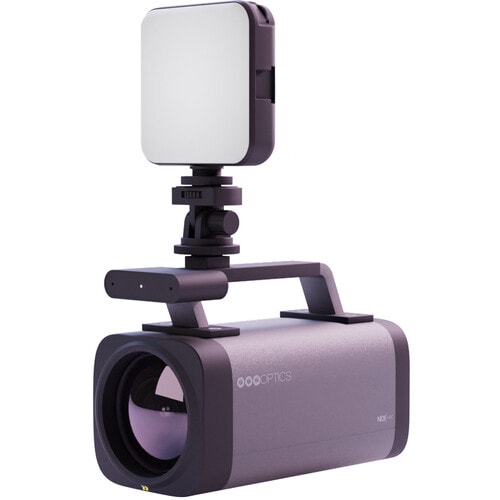

The Studio Pro includes an IR remote and a USB-powered premium lighting solution that offers 3000-6000k temperatures—soft white all the way up to crisp daylight. It also features a noise canceling microphone array, as well as a cold shoe. For flexible deployment, the Studio Pro is PoE capable and can also be powered by USB or standard 12VDC power supply.

Features and Benefits
  • Full Featured USB Interface
  • Advanced Focus Features, including Time-of-Flight
  • 1080p@60fps HD Image
  • Built-In Cold Shoe Mount for Lighting, Mics, and More
  • HDMI 1.4b
  • 72.5° Wide Angle Lens
  • Portrait and Landscape Modes
  • 3 Power Supply options: USB 5V, DC 12V and PoE

A camera geared to fit the needs of any content creator, from novice to expert, the Studio Pro is an all-in-one content and livestreaming solution. Featuring 12X optical zoom, 16X digital zoom, 72.5° FoV, a portrait and landscape toggle switch, the Studio Pro empowers users to connect with their audiences however they watch. The Studio Pro comes native with NDI®|HX, so no additional license is needed to access your camera over the network.


Studio Pro is great for:

  • Influencers & Youtubers
  • UGC Creators (user-generated content)
  • TikTok & Instagram (vertical video)
  • More professional looking corporate conferencing
  • Professional Telepresence (Doctors, Lawyers, Professors, etc)
Image Sensor & Lens
Video Sensor
1/2.8” CMOS, 2.07 Mega Pixel
Resolution
1920x1080p @ 60fps
Lens Zoom
12x Optical, 16x Digital
Horizontal Field of View
6.9⁰ ~ 72.5⁰
Vertical Field of View
3.9⁰ ~ 44.8⁰
Min. Illumination
0.5 Lux
Scanning Mode
Progressive
H/V Flip / Image Freeze
Supports

Electronic Index
Input Voltage
5V (USB Power), DC 12v, PoE (802.3af)
Power Consumption
6W
Working Environment
Indoor

Physical Specifications
Material
Plastic
Dimensions
L-147 x H-113 x D-77 (mm)
Weight
1.54 lbs
Operating Temperature
32° F ~ 104° F
Storage Temperature
-40° F ~ 140°F

Connections
Color System
H.264 / H.265 / MJPEG / YUY2
Video Format
YUY2 (ISOC), H.264 SVC, MJPEG: Max. 1080p@60fps
USB Video Communication Protocol
UVC 1.5
Video Bit Rate
32 ~ 102400
Audio
AAC, 96 Kbps, 128 Kbps, 256 Kbps
Protocols
TCP/IP, HTTP, RTMP, ONVIF, DHCP, RTSP, NDI, Multicast, SRT
What’s in the Box
  • Camera
  • Power Supply
  • IR Remote
  • 2 AAA Batteries
  • USB-A to USB-C Screw Locking Cable
  • LED Panel Light
