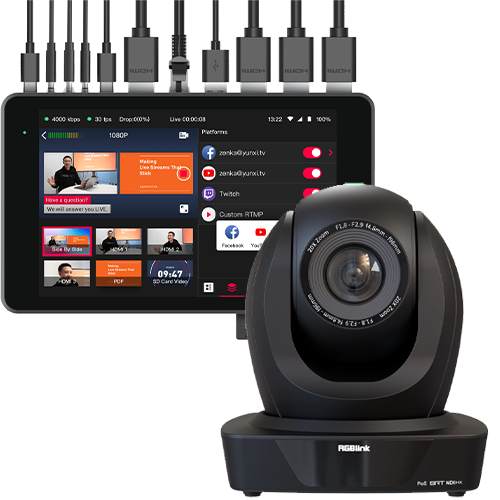

YoloLiv YoloBox Pro and RGBlink VUE 20x PTZ Camera Bundle
YoloLiv YoloBox Pro and RGBlink VUE 20x PTZ Camera Bundle
YoloBox Pro is a video switcher, encoder/streamer, monitor, recorder and audio mixer all in one. With built-in restreaming service, native support integrates directly with YouTube/Facebook/Twitch, adding graphic overlays (logos, lower-thirds, picture in picture, scoreboard, rolling captions) and featuring comments to the stream, Side-By-Side, Split-View and much more.
YoloBox Pro Key Features:
RGBlink VUE 20x PTZ camera adds a whole new dimension to capturing video presentations. Pan, Tilt, Zoom to capture all the action – get in even closer with 10X digital zoom, and the best video with auto focus, dynamic level adjustment (WDR) and 2D/3D Dynamic Noise Reduction (DNR) all at up to 60fps. All vue models feature the unique TALLY crown light indicator, integrated right into the housing for 360-degree viewing. The innovative and patented RGBlink vue camera design is at home in every environment.
VUE PTZ Camera Key Features
YoloBox Pro is a video switcher, encoder/streamer, monitor, recorder and audio mixer all in one. With built-in restreaming service, native support integrates directly with YouTube/Facebook/Twitch, adding graphic overlays (logos, lower-thirds, picture in picture, scoreboard, rolling captions) and featuring comments to the stream, Side-By-Side, Split-View and much more.
YoloBox Pro Key Features:
- 3 x HDMI, 1 x USB In, 1 x SD card, 1 x PDF; 1 x HDMI out; 1 x SIM card; Mic-in/Line-in;
- Live switch up to 8 sources
- Direct integration with YouTube/Facebook/RTMP(s)
- Built-in simultaneously streaming
- Stream via Ethernet, Wi-Fi, LTE 4G
- Import pictures/videos from SD card
- Add logos/watermarks/rolling captions to the stream
- Feature comment overlays to the Stream
- Add and edit customizable scoreboard, built-in lower-thirds
- Load PDF as an extra source locally
- Records internally to SD card
- Battery life up to 3 hours
RGBlink VUE 20x PTZ camera adds a whole new dimension to capturing video presentations. Pan, Tilt, Zoom to capture all the action – get in even closer with 10X digital zoom, and the best video with auto focus, dynamic level adjustment (WDR) and 2D/3D Dynamic Noise Reduction (DNR) all at up to 60fps. All vue models feature the unique TALLY crown light indicator, integrated right into the housing for 360-degree viewing. The innovative and patented RGBlink vue camera design is at home in every environment.
VUE PTZ Camera Key Features
- High speed optical zoom
- Low-Latency SRT Upload to Cloud
- High performance in low light scenarios with Wide Dynamic Range
- Full 1920×1080p HD resolutions up to 60 frames per second
- H.265/H.264 dual stream output adapted to different network environments
- Pan and Tilt Control
- Optional interface
- 20Xoptical zoom
- Wide application
- Low-power sleep function
YOLOBOX PRO
Ports
· HDMI IN: Video input
· USB IN: Video input
(Please note in some usb webcams, only video can be captured.)
· HDMI OUT: Video input
· Ethernet: Connect to Internet by Ethernet cable
· AUDIO IN: Connect with lavalier microphone or mixer
· TYPE-C 3.0: A fully functional interface supports input/output
· TYPE-C: Power connector
· LINE IN: Stereo, connect to electric guitar or synthesizer
· MIC IN: Mono, connect to microphone for recording
· AUDIO OUT: Connect with headphone for sound monitor
· Sim Card Slot: Insert SIM Card to get into Internet
· HOTSHOE: Mount YoloBox with camera
· SD Card: Insert SD card for local assets
· Power Button: Turn on and turn off
Encoded Format
· Video Encoded Format：H.264
· Audio Encoded Format：AAC (44.1k)
· Video Recorded format：MP4
· Audio Input Format：32kHz/44.1kHz/48kHz/16-bit/16kHz
· Video Input Format：1080i/ 720p/ 1080p
· Live Broadcast Resolution：540P/720P/1080P
Video Storage
· Storage Card Type：SD Card
· Storage Card Capacity：Expanded to 128G in FAT32, exFAT, NTFS format
Network Connection
· WiFi：2.4G/5G
· 4G Network Countries & Frequency Band For
· Users：[NA：Variant for North America（US/Canada/Mexico）]
· B2/B4/B5/B7/B12/B13/B14/B17/B25/B26/B41/B66/B71
· Notes：Mexico B4
· For Non-US/Canada/Mexico Users：（EM:Variant for EMEA/India/Korea/Taiwan/South Asia/Latin America/Australia/New Zealand）Users：
· B1/B2/B3/B4/B5/B7/B8/B20/B28/B38/B39/B40/B41
· Notes：Thailand B7
· Please note that the Yolobox complete machine certification corresponds to the mainstream frequencies and wavelengths of the local mainstream telecom operators.
· SIM Card Size：Nano card
Power
· Power Interface：Type C, Quick Charge 3.0
· Battery Capacity：10000mAh
· Rated Voltage: 5V-3A; 9V-2A; 12V-1.5A
Transmission
· Network Protocol：RTMP(S)
Working Environment
Operating Temperature：-10℃-40℃
Storage Temperature：5℃-40℃
VUE PTZ CAMERA
Interface
Output
Camera
Input Voltage
Temperature
Weight
Ports
· HDMI IN: Video input
· USB IN: Video input
(Please note in some usb webcams, only video can be captured.)
· HDMI OUT: Video input
· Ethernet: Connect to Internet by Ethernet cable
· AUDIO IN: Connect with lavalier microphone or mixer
· TYPE-C 3.0: A fully functional interface supports input/output
· TYPE-C: Power connector
· LINE IN: Stereo, connect to electric guitar or synthesizer
· MIC IN: Mono, connect to microphone for recording
· AUDIO OUT: Connect with headphone for sound monitor
· Sim Card Slot: Insert SIM Card to get into Internet
· HOTSHOE: Mount YoloBox with camera
· SD Card: Insert SD card for local assets
· Power Button: Turn on and turn off
Encoded Format
· Video Encoded Format：H.264
· Audio Encoded Format：AAC (44.1k)
· Video Recorded format：MP4
· Audio Input Format：32kHz/44.1kHz/48kHz/16-bit/16kHz
· Video Input Format：1080i/ 720p/ 1080p
· Live Broadcast Resolution：540P/720P/1080P
Video Storage
· Storage Card Type：SD Card
· Storage Card Capacity：Expanded to 128G in FAT32, exFAT, NTFS format
Network Connection
· WiFi：2.4G/5G
· 4G Network Countries & Frequency Band For
· Users：[NA：Variant for North America（US/Canada/Mexico）]
· B2/B4/B5/B7/B12/B13/B14/B17/B25/B26/B41/B66/B71
· Notes：Mexico B4
· For Non-US/Canada/Mexico Users：（EM:Variant for EMEA/India/Korea/Taiwan/South Asia/Latin America/Australia/New Zealand）Users：
· B1/B2/B3/B4/B5/B7/B8/B20/B28/B38/B39/B40/B41
· Notes：Thailand B7
· Please note that the Yolobox complete machine certification corresponds to the mainstream frequencies and wavelengths of the local mainstream telecom operators.
· SIM Card Size：Nano card
Power
· Power Interface：Type C, Quick Charge 3.0
· Battery Capacity：10000mAh
· Rated Voltage: 5V-3A; 9V-2A; 12V-1.5A
Transmission
· Network Protocol：RTMP(S)
Working Environment
Operating Temperature：-10℃-40℃
Storage Temperature：5℃-40℃
VUE PTZ CAMERA
Interface
Output
- 3G SDI: 1xBNC
- HDMI: 1xHDMI-A
- USB: 1xUSB-A
- LAN : 1xRJ45
- 20x
- IN: 1x3.5mm Stereo Jack
- RS232 IN/OUT: 2xDIN8
- RS485: 1x4pin Terminal
- 1xDC12V Jack
Camera
- Optical Zoom: f＝5.05～91.50mm
- View Angle: 3.45°～ 60.04°
- AV: F1.8 ～ F2.9
- Digital Zoom: 10X
- Minimum Illumination: 0.5Lux (F1.8, AGC ON)
- DNR: 2D & 3D DNR
- White Balance: Auto/Manual/One Push/3000K/3500K/4000K/4500K/5000K/5500K/6000K/6500K/7000K
- Focus: Auto/Manual
- Aperture/Electronic Shutter: Auto/Manual
- BLC: ON/OFF
- WDR: OFF/Dynamic Level Adjustment
- Video Adjustment: Brightness/Color/Saturation/Contrast/Sharpness/B/W mode/Gamma curve
- SNR: >55dB
- Effective Pixels: 2.07m,16:9
- Pan/Tilt Movement: -170°～+170°/'-30°～+90°
- Pan/Tilt Control Speed: 0.1～60°/S；0.1～30°/S
- Preset Speed/Quantity: Pan:60°/S, Tilt:30°/S; Up to 255 preset positions (10 remote control)
- 360° TALLY: full 360° view of TALLY
- AAC | MP3 | G.711A
- H.264 | H.265 | Dual Streaming Output
- 720p50/59.94/60 | 1080p25/29.97/30/50/59.94/60 | 1080i50/59.94/60
- VISCA | Pelco-D | Pelco-P
- 115200 | 9600 | 4800 | 2400bps
- RTSP | RTMP | SRT | ONVIF
- SDI: SMPTE 425M (Level A & B) | SMPTE 424M | SMPTE 292M | SMPTE 259M-C | DVB-ASI
Input Voltage
- DC12V/1.5A
- 12W
Temperature
- -10℃～50℃
- 20%～80%
Weight
- Net: 1.7kg
- Net: 180mm(front)×188mm(side)×198mm(height)
YoloBox Pro
RGBlink VUE PTZ Camera
- Screen Protector
- Quick Start Guide
- Instruction Booklet
- Hot Shoe Mount
- Pocket Wrench
- Sim Card Ejector
- USB-C Charging Cable
- USB-C Cable
RGBlink VUE PTZ Camera
