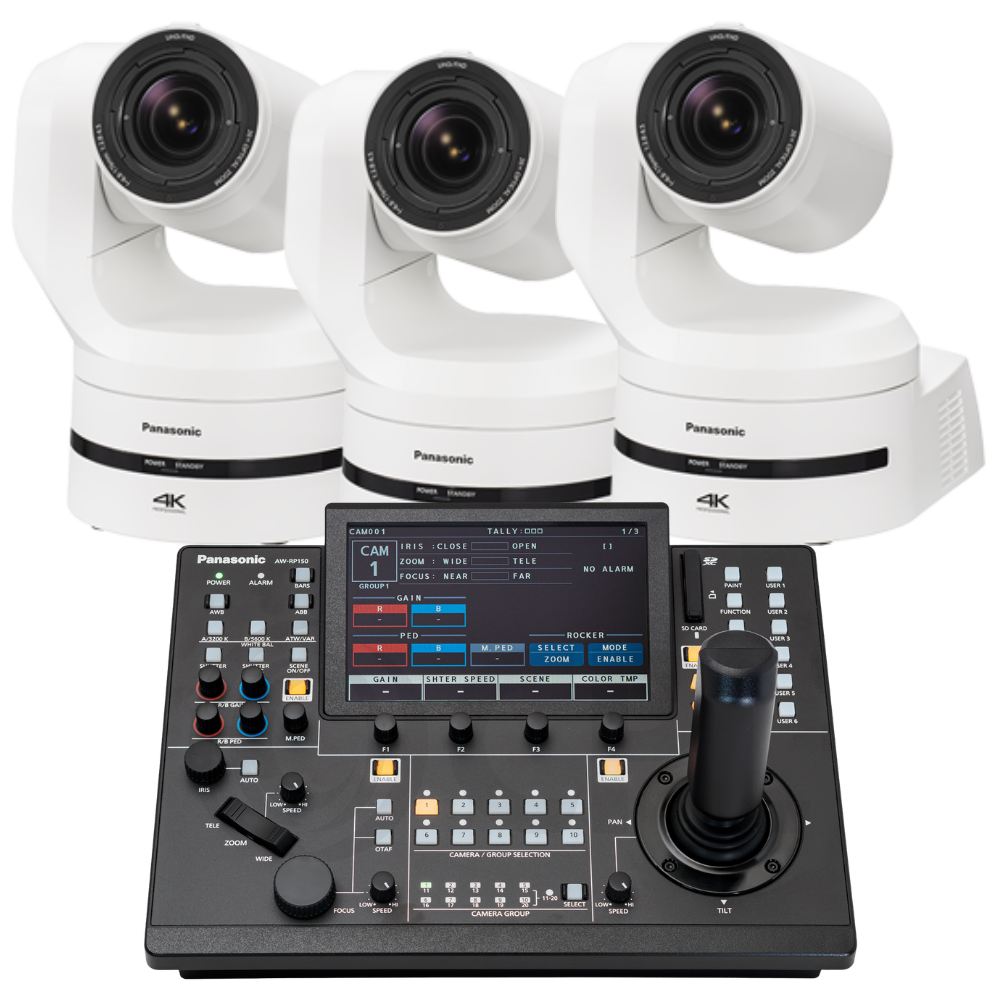

Panasonic 3x AW-UE160 PTZ Cameras (White) w/ FREE AW-RP150 Controller

(0)No Reviews yet
SKU: AWUE160WPJBUN

Panasonic 3x AW-UE160 PTZ Cameras (White) w/ FREE AW-RP150 Controller

Back

Panasonic 3x AW-UE160 PTZ Cameras w/ FREE AW-RP150 Controller
Bundling three Panasonic AW-UE160 PTZ cameras with the Panasonic AW-RP150 controller gives you a powerful, professional-grade production setup designed for smooth multi-camera control. With one operator, you can easily manage camera angles, focus, and movement, ensuring consistent, broadcast-quality results. This streamlined workflow reduces setup time, increases efficiency, and delivers stunning visuals for live events, houses of worship, sports, and studio productions. It’s the smart way to get the most out of your PTZ investment.

Panasonic AW-UE160 20x NDI 4K PTZ Camera w/ OLPF
The AW-UE160 4K PTZ camera features a newly developed 4K 1” MOS sensor that offers the highest sensitivity of Panasonic’s entire PTZ lineup. Production teams shooting in a concert venue or a church can easily capture clear images even in the most challenging lighting conditions. Meanwhile, the UE160’s new optical low pass filter reduces the effect of moiré for clearer picture quality when shooting against an LED wall, which is especially important for rental and staging or worship environments. Its high-speed frame rate will help sports broadcasters capture slow motion shots in HD for replays, while seamless integration with the robotic camera system brings live broadcast-style movements to the PTZ, resulting in a dynamic and highly engaging video production.

Panasonic RP150 Advanced Joystick Controller
The Panasonic RP150 Joystick Controller has the same great functionality of the AW-RP120 and AW-RP50, and joins the lineup with significant improvements over those models, including a new one-hand operation joystick (controlling PTZ or Focus) and a large touch-panel LCD screen for monitoring and menu setting. The Panasonic RP150 Joystick Controller is a full-featured camera controller, allowing camera operators to get the most out of their Panasonic robotic cameras. This controller is the perfect choice for large multi-camera video productions, such as live TV broadcasts and livestreams. A range of advanced features make the RP150 the flagship camera controller in the lineup, and an ideal companion to the PRO PTZ performance camera model.

Back

Optical Zoom

  • 20x

NDI

  • AW-UE160:High Bandwidth NDI, NDI|HX Ver.2 included as standard


Current consumption

  • 5.0 A (XLR IN connector), 1.5A (PoE++ power supply)

Power Requirements

  • 12VDC±10%(10.8V to 13.2V)

Ambient Operating Temperature

  • 0 °C to +40 °C (32 °F to +104 °F)

PoE++

  • IEEE802.3bt standard :DC 42 V to 57V (Camera Input)*Limited in function when PoE used.(Software authentication (LLDP) is supported))

Storage Temperature

  • –20 °C to +50 °C (–4 °F to +122 °F)

Ambient Operating Humidity

  • 20 % to 90 % (no condensation)

Mass

  • Approx. 4.6kg (10.14lbs) (excluding mount bracket)

Controller Supported

  • AW-RP150，AW-RP60，AK-HRP1010，AK-HRP1015，AK-HRP250
    *Other ROP will be compatible in the future.

LENS

  • Motorized Optical 20xZoom F2.8 to F4.5(f=8.8 mm to 176.0 mm,35mm equivalent:24.5 mm to 490.0 mm)i.Zoom, D.Extender

Imaging Sensors

  • 1-type (1") 4K MOSx1
  • Effective Pixels: Approx. 9,620,000 pixels

Optical Filter

  • Through、1/4, 1/16, 1/64 *equipped with Low pass filter(Through is used as "night mode")

Focus

  • Switching between auto and manual

Conversion Lens

  • Not Supported

Angle of View Range

  • Horizontal: 75.1°(wide) to 4.0°(tele)
  • Vertical: 46.7°(wide) to 2.3°(tele)
  • Diagonal: 82.8°(wide) to 4.6°(tele)

MINIMUM ILLUMINATION

  • 2lx(F2.8, 59.94p, 50IRE, +42dB, without accumulation)

Focus Distance

  • Entire zooming range: 1000 mm, Wide end: 100 mm

Standard Sensitivity

  • F11/2,000lux (Normal), F14/2,000lux

Color Separation Optical Systems

  • 1MOS

Horizontal Resolution

  • 1,600 TV Typ (center area, UHD Mode, Wide)

Gain Selection

  • Auto, 0dB to 36dB *1 dB step increments can be set.

Frame Mix

  • Auto, 0dB, 6dB, 12dB, 18dB, 24dB*If format is set in 2160/29.97p, 2160/23.98p, 2160/24p, 2160/25p, 1080/29.97p, 1080/25p, it cannot be set.

Electronic Shutter Speed

  • 60p/59.94p/59.94i:
    1/100, 1/120, 1/125, 1/250, 1/500, 1/1,000, 1/1,500, 1/2,000
  • 29.97p:
    1/48, 1/50, 1/60, 1/96, 1/100, 1/120, 1/125, 1/250, 1/500, 1/1,000, 1/1, 500, 1/2,000
  • 23.98p/24p:
    1/48, 1/50, 1/60, 1/96, 1/100, 1/120, 1/125, 1/250, 1/500, 1/1,000, 1/1,500, 1/2,000
  • 50p/50i:
    1/60, 1/100, 1/125, 1/250, 1/500, 1/1,000, 1/1,500, 1/2,000
  • 25p:
    1/48, 1/50, 1/60, 1/96, 1/100, 1/125, 1/250, 1/500, 1/1000, 1/1,500, 1/2,00
  • 59.94p･120fps:
    1/125, 1/250, 1/500, 1/1,000, 1/1,500, 1/2,000
  • 50p･100fps:
    1/125, 1/250, 1/500, 1/1,000, 1/1,500, 1/2,000

Synchro scan

  • 60p/59.94p/59.94i:60.00Hz to 7,200Hz
  • 29.97p:30.00Hz to 7,200Hz
  • 23.98p:24.00Hz to 7,200Hz
  • 50p/50i:50.00Hz to 7,200Hz
  • 25p:25.00Hz to 7,200Hz
  • 59.94p･120fps:120Hz to 7,200Hz
  • 50p･100fps:100Hz to 7,200Hz

WHITE BALANCE

  • ATW､3200K, 5600K
  • ATW Speed : Normal / Slow / Fast
  • AWB-A､AWB-B
  • VAR (selectable between 2000 K and 15000 K by designating a value)

Gamma

  • HD/NORMAL/CINEMA1/CINEMA2*HLG is set in other menuMASTER GAMMA (0.15~0.75)R GAMMA (-75~+75)B GAMMA (-75~+75)

Scene File

  • Scene 1 to 8

Chroma Amount Variability

  • OFF, -100% to 40%

Output Format (UHD/FHD SDI)

  • 4K2160/59.94p, 2160/50p, 2160/29.97p(Native), 2160/25p(Native), 2160/24p(Native), 2160/23.98p(Native) HD1080/119.88p, 1080/100p, 1080/60p, 1080/59.94p, 1080/50p, 1080/29.97p(Native), 1080/25p(Native), 1080/24p(Native), 1080/23.98p(Native), 1080/59.94i, 1080/50i, 720/59.94p, 720/50p*1080/119.88p and 1080/100p use two 3G/SDI OUTPUT1/2 channels.*No output from 12G/SDI.

Output Format (HDMI)
4K

  • 2160/59.94p, 2160/50p, 2160/29.97p(Native), 2160/25p(Native),
  • 2160/24p(Native), 2160/23.98p(Native)


HD

  • 1080/119.88p, 1080/100p, 1080/60p, 1080/59.94p, 1080/50p, 1080/29.97p(Native),
  • 1080/25p(Native), 1080/24p(Native), 1080/23.98p(Native),
  • 720/59.94p, 720/50p)


Output Format (Fiber(Only Video))
4K

  • 2160/59.94p, 2160/50p, 2160/29.97p(Native), 2160/25p(Native),
  • 2160/24p(Native), 2160/23.98p(Native)

HD

  • 1080/60p, 1080/59.94p, 1080/50p, 1080/29.97p(Native), 1080/25p(Native),
  • 1080/24p(Native), 1080/23.98p(Native), 1080/59.94i, 1080/50i,
  • 720/59.94p, 720/50p

Output Format (ST2110)
HD

  • 1080/60p, 1080/59.94p, 1080/50p, 1080/29.97p(Native), 1080/25p(Native),
  • 1080/24p(Native), 1080/23.98p(Native), 720/59.94p, 720/50p

HDMI

  • HDMI 2.0 connector
  • 4:2:2/10bit
  • HDCP is not supported.
  • Viera Link is not supported.

Synchronization System

  • Internal/External synchronization (BBS/Tri-level sync)

INPUT

  • DC 12 V IN, G/L IN(BNC)

G/L IN

  • BBS (Black Burst Sync), tri-level sync supported)


AUDIO INPUT 1/2

  • XLR(2ch) or MIC/LINE Input compatibles /HDMI /IP)AAC compatibility (compatible with IP only)XLR3 female balanced input 2chDuring MIC inputInput level: -50dBu or -60dBu/-40dBu(0 dB=1 V/Pa, 1 kHz)Phantom power compatible､Supply voltage:47 V±2 VInput impedance:Approx. 10kΩDuring LINE inputInput level :0 dBu ( or +4dBu/-20dBu)Input impedance:Approx. 10kΩInput volume variable range: -40 dB ~0dB~+20 dB(1 dBstep)Embedded audio output level:-12 dBFS/-18dBFS/-20dBFS Sampling frequency:48 kHz Quantization bit rate : 24 bit(SDI, HDMI), 16bit(IP)

12G SDI OUT

  • SMPTE2082-1, SMPTE424M /SMPTE292M / 75 Ω(BNC×1)
    *Level-A/Level-B supported

3G SDI OUT1

  • SMPTE424M /SMPTE292M / 75 Ω(BNC×1)
    *Level-A/Level-B supported

3G SDI OUT2/PM

  • SMPTE424M /SMPTE292M / 75 Ω(BNC×1)
    *Level-A/Level-B supported

SFP+

  • SFP+ standard (Single Fiber)
    *This unit does not support input by optical signals

LAN

  • LAN connector for IP control (RJ-45)

USB

  • USB3.0 HOST(5G mobile router with USB tethering support)

RS-422

  • CONTROL IN RS422A (RJ-45)

SFP+ (ST2110)

  • ST2110-10/-20/-21/-30

IP connecting cable

  • if you have PoE++ ethernet hub
  • LAN cable *1( category 5e or above､straight cable)Max100 m
  • If you don't have PoE++ ethernet hub
  • LAN cable *1( category 5e or above､straight cable)Max100 m
  • *1 STP(Shielded Twisted Pair) is recommended
  • *2 Category 6 or above is used for 4K video transmission.

SFP+(ST2110)
compatible protocol:

  • -ST2110-10/-20/-21/-30
  • -PTP ST2059-2
  • -NMOS IS-04/IS-05

output number:video

  • x3(Full, Crop, Monitor), Audio x2

Input number:video

  • x1(RETURN)

Video format:

  • FHD *Same as system format

AW protocol connecting cable

  • LAN cable* (category 5e or above, straight cable) Max1000 m
    *STP (Shielded Twisted Pair) is recommended

Pan/Tilt Operation Speed

  • Speed range:0.08 °/s ~1800°/s( Normal mode) *3 speed modes installe
  • Normal:~60°/s,Fast1:~90°/s,Fast2:~180°/s

Quietness

  • NC35 or less *When standing still, NC25 or less

Tilting Range

  • -30°~ 210

Panning range

  • ±175°

Installation Method

  • Stand-alone (Desktop) or suspended (Hanging)

Windows

  • Windows®10
  • Microsoft Edge
  • Google Chrome

Image Resolution

  • 3840x2160, 1920x1080, 1280x720, 640x360

Mac

  • macOS 10.13 / Safari 13
  • macOS 10.14 / Safari 13
  • macOS 10.15 / Safari 13
  • macOS 10.15 / Google Chrome

Android

  • Android OS
  • Google Chrome


Image Streaming Mode

  • JPEG(MJPEG), H.264, H.265, NDI|HX Ver2, High Bandwidth NDI

Image Transmission setting (JPEG)

  • Frame rate : Max 30fps
    *No bit rate specified
    *JPEG and H.264, JPEG and H.265 simultaneous operation depends on bit rate
  • Image quality(Fine/Normal)

Image Transmission Setting (H.264)

  • Transmission Type : Unicast port (AUTO)
  • Unicast port (MANUAL)
  • Multicast port
  • Transmission mode :CBR, VBR
  • Frame Rate
  • [60Hz]
  • 5fps/15fps/30fps/60fps (UHD : 30fps,60fps)
  • [50Hz]
  • 5fps/12.5fps/25fps/50fps (UHD : 25fps,50fps)
  • Max to Min Bit Rate
  • 2048kbps/4096kbps/8192kbps/10240kbps/12288kbps/14336kbps/20480kbps/24576kbps/51200kbps/76800kbps

iPhone / iPad / iPod touch

  • iOS, Safari, iPadOS

Image Transmission Setting (H.265)

  • Transmission Type : Unicast port (AUTO)
  • Unicast port (MANUAL)
  • Multicast port
  • Transmission Mode :CBR,VBR
  • Frame Rate
  • [60Hz]
  • 30fps / 60fps
  • [50Hz]
  • 25fps / 25fps
  • Max to Min Bit Rate
  • 2048kbps/4096kbps/8192kbps/10240kbps/12288kbps/14336kbps/20480kbps/24576kbps/51200kbps/76800kbps

Supported protocol
Network Protocol:

  • ICMP, ARP, GARP, MLD
  • Transmission Protocol:
  • TCP/IP, UDP/IP

Application Protocol:

  • IPv4 : HTTP, HTTPS, DNS, NTP, DHCPv6,MDNS, SNMP, 802.1X
  • IPv6 : HTTP, HTTPS, DNS, NTP, DHCPv4, MDNS, SNMP, 802.1X

Video Streaming Protocol:

  • RTP/RTCP over RTSP, RTMP, RTMPS, SRT, MPEG2-TS over UDP,
  • NDI|HX version 2, High bandwidth NDI
  • External Device Cooperation Protocol:FreeD, TSL5.0, SNMP

Audio Compression Type

  • AAC-LC, 48kHz/16bit/2ch

Output Format

  • Video Format(Full x1, MONI x1.Crop x1, all of these same format)1080/60p(Just), 1080/59.94p, 50p, 1080/59.94i, 50i, 1080/29.97p(Native)25p(Native), 1080/24p(Just), 1080/23.98p(Native), 720/59.94p, 50pAudio Specification MIC1/2PCM/48khz/24bit/1ch x2

NDI (High Bandwidth NDI,NDI|HX Ver.2)
-

Output Format (High bandwidth NDI)
4K

  • 2160/59.94p, 2160/50p, 2160/29.97p, 2160/25p, 2160/24p, 2160/23.98p

HD

  • 1080/60p, 1080/59.94p, 1080/50p, 1080/29.97p, 1080/25p, 1080/24p, 1080/23.98p､720/59.94p, 720/50p

Image Resolution (NDI|HX Ver.2)

  • 1920x1080, 1280x720

Image Streaming Setting

  • High Bandwidth NDI
  • Transmisiion Type : TCP /UDP
  • Unicast/Multicast
  • Bit Rate : Max 250Mbps

NDI|HX version.2:

  • Transmission Type : TCP/UDP
  • Unicast/Multicast
  • Frame Rate
  • [60Hz]
  • 5fps/15fps/30fps/60fps
  • [50Hz]
  • 5fps/12.5fps/25fps/50fps
  • Max Bit Rate
  • 512kbps/768kbps/1024kbps/1536kbps/2048kbps/3072kbps/
  • 4096kbps/6144kbps/8192kbps/10240kbps/12288kbps/14336kbps/
  • 16384kbps/20480kbps/24576kbps

Audio Compression Type 2

  • High Bandwidth NDI:AAC, 48kHz, 2ch
  • NDI|HX Ver.2:AAC-LC, 48kHz/16bit/2ch

ST2110
-

Number of Output (TX)

  • Video:3 line (Full x1, MONI x1.Crop x1)
  • Audio:2 line
  • Auxiliary data:No output

Number of Input (RX)

  • Video:1 line(RETURN) *Out from 3G SDI OUT2(Video is changed in the OSD menu)
  • Audio:No input
  • Auxiliary data:No input

Cropping

  • Select from 3 types of images from 3G/SDI_OUTPUT2, Crop_Zoom available

Image Stabilization

  • OIS 2-axis + Hybrid method of roll direction correction
  • MENU switching :select between OFF/OIS/Hybrid(Stable)/Hybrid(Pan/Tilt)

Power LED

  • ON/OFF control

Tripod Screw Penetration Measures

  • Yes

Privacy Mode

  • The lens surface faces downward when standing by (ON/OFF)

Input Format

  • Video Format (Full x1, MONI x1.Crop x1, all of these same format)1080/60p(Just), 1080/59.94p, 50p, 1080/59.94i, 50i, 1080/29.97p(Native)25p(Native), 1080/24p(Just), 1080/23.98p(Native), 720/59.94p, 50p

HDR/SDR

  • HLG/BT.2020 compatible, SDR/BT.709 compatible

F Number Display

  • Displayed on the AW-RP150 and AW-RP60 sides


IP menu display

  • supported *Non-synchronous with SDI-OUT

VR (FreeD) (IP/RS422)

  • supported

Yellow Tally

  • supported

PTP

  • supported

5G/WiFi 6

  • Compatible with recommended products only

WFM display

  • Output with video superimposed from 3G/SDI_OUTPUT2

Return Video Output

  • Output return video input from ST2110, NDI via SDI_OUT2

Horizontal Level Gauge

  • ON/OFF control in OSD MENU

Wireless Remote Controller

  • AW-RM50AG（Size "AA" dry battery x 2, obtained separately）

Dimensions (W x H x D)

  • 213.0 mm x 277.0 mm x 240.0 mm(8.39inches x 10.91inches x 9.45inches)
    [excluding protrusions, cable cover, ceiling mount bracket]

Supported Format

  • ST2110:10/20/21/30
  • PTP:ST2059-2
  • NMOS:IS-04/IS-05
Back
  • 3x AW-UE160 PTZ Cameras
    • Ceiling Mount Bracket
    • Cable Cover
    • Safety Wire with Screw
  • AW-RP150 Controller
