Panasonic AW-UB10 4/3" MOS Sensor 4K Multipurpose Box Camera

Flexible Options for Expressing Your Creativity

• High-sensitivity, large-format sensors realize exceptional detail for vibrant expression. The AW-UB50 boasts a 24.2M full-size MOS sensor and the AW-UB10 features a 10.2M 4/3-inch MOS sensor.
• Common IP control protocols enable seamless operation of multiple Panasonic PTZ cameras, and compatibility with various IP transmission standards makes it easy to build streaming or IP-based systems.
• A variety of system interfaces simplify integration with professional video equipment, and PoE+ compatibility allows convenient power supply via a LAN cable.

High Sensitivity, Large-Format Sensors
The AW-UB50 boasts a 24.2-megapixel full-size MOS sensor and the AW-UB10 features a 10.2-megapixel 4/3-inch MOS sensor, both realizing high-quality video with excellent color reproduction and resolution. The high-sensitivity, large-format sensors achieve a shallow depth of field for emotional expressiveness with beautifully blurred backgrounds. In addition, detailed expressions can be captured even in low-light environments thanks to wide dynamic range
(AW-UB50: 14+ stops / AW-UB10: 13 stops).

Color Profile Compatible with AW-UE160
Offers a color profile that is highly compatible with the AW-UE160 4K integrated camera to ensure consistency, even in systems using different types of cameras.

NDI|HX2 Support
Compatible with the NDI® HX2 IP standard for sharing high-definition video data with networked equipment, making it easy to build IP-based systems incorporating other NDI®-compatible devices.

Various IP Streaming Protocols
Planned support for RTMPS and SRT*2 will make network-based video distribution easy, including for live streaming services.

Integration with Panasonic PTZ Cameras
Common IP control protocols ensure seamless integration with Panasonic PTZ cameras, allowing cameras and tallies to be controlled from a remote operation panel (ROP) *3, Remote Camera Controller*4 or live switcher. Also, the Media Production Suite*5 software platform enables the creation of multi-camera systems, including for PTZ cameras

Multiple I/O Terminals

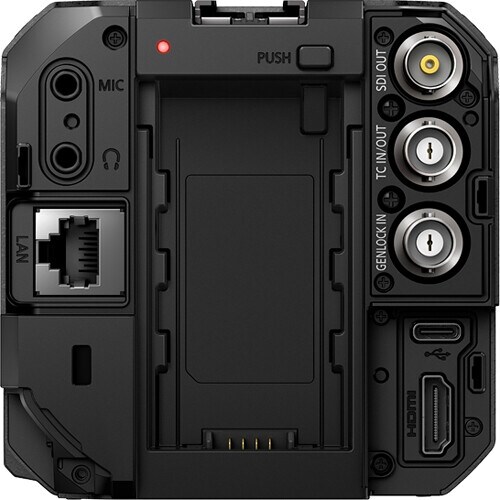

The camera is equipped with terminals including 3G-SDI OUT, TC IN/OUT, GENLOCK IN, HDMI Type A, LAN, USB Type-C, 3.5 MIC, and headphone. LAN is PoE+ compliant for power supply, allowing video transmission, control and power supply over a single LAN cable to significantly simplify on-location wiring.

Functional Box-Style Design for Excellent Expandability
The compact, lightweight box-style body facilitates installation in diverse locations. Handheld shooting using a gimbal is also possible

Real-Time Recognition AF
Highly accurate autofocus tracking of subjects is ensured with Real-time Recognition AF.
