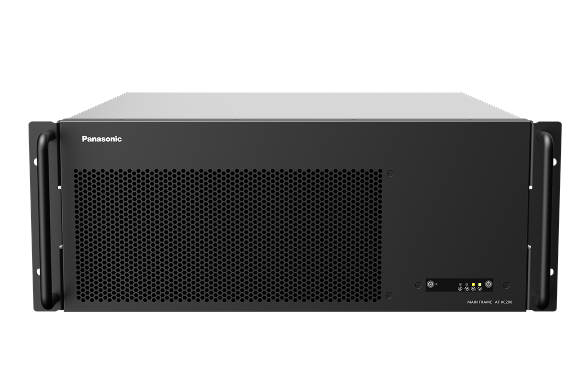

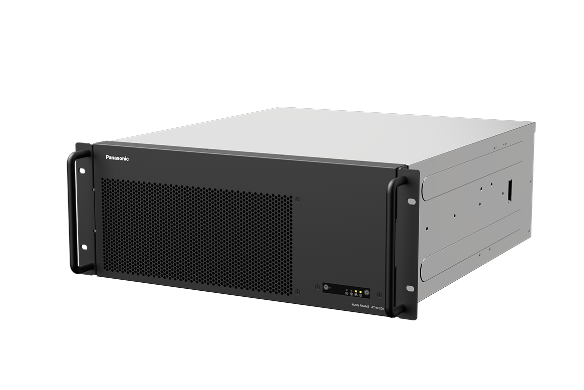

Panasonic KAIROS 200 Core
The KAIROS Core 200 (AT-KC200) mainframe option offers a higher performance CPU and GPU thereby increasing the system’s video processing capacity and expanded HD and 4K inputs/outputs, and enabling the platform to be utilized in a wider range of more complex productions. Compared to current Cores, AT-KC200 has increased capacity with 32GB RAM Player, 7GB Stills and 400GB Clip Player. In addition, ST2110 and SDI sources can be recorded for RAM and Still.
KEY FEATURES
- The 4RU Chassis offer significantly reduced noise levels appropriate to run in venue or studio
- The KC200 will offer the most capacity yet, boasting 150% of video processing power compared to current Cores
GENERAL
Power Requirement
AC IN ×2, 100-127 V/200-240 V, 50/60 Hz
Current Consumption
10.0 A / 5.0 A
Operating/Storage Temperature
5 to 35 ˚C / –20 to 60 ˚C
Operating Humidity
10% to 90%, no condensation
Weight, without accessories & options
Approx. 17 kg / 37.47 lb
Rack Mount Size
4 RU
Dimensions (W x H x D)
430 mm × 176 mm × 505 mm / 16-15/16" x 6-15/16" x 19-7/8"
OS
Linux
Redundant Power Supply
Yes
NUMBER OF VIDEO I/O
Agile Input Routing
Yes
Smart Routing
Yes
ST2110
1.5G - 64 in / 40 out
3G - 32 in / 40 out
4K - 8 in / 10 out
ST 2022-7 Redundancy
No halving of input, halving out output
SDI
1.5G- Max 32 in / 16 out
3G- Max 32 in / 16 out
4K- Max 16 in / 8 out
NDI High Bandwidth (HD Only)
2 in / 2 out, 16CH audio for each
SRT/RTSP/RTP/RTMP (HD Only)
8 in / 2 out (only input for RTSP)
CONNECTORS
QSFP (ST2110, PTP sync)
100G QSFP28 x 2
DisplayPort (for multiview output)
DisplayPort 1.4 x 4
LAN
RJ-45 x 2, 1 GbE
SDI IN/OUT
Micro BNC x Max 48
REF IN/OUT
Micro BNC x Max 8
HDMI IN/OUT
Use external converters
DisplayPort
-
VGA (for system installation)
Dsub-15pin
USB (for system installation)
USB3.2 Gen1 Type-Ax4
VIDEO FORMAT
4K
2160/60p, 59.94p, 50p, 30p, 29.97p, 25p, 24p, 23.98p
FHD
1080/60p, 59.94p, 50p, 30p, 29.97p, 25p, 24p, 23.98p
HD
1080/59.94i, 50i, 720/60p, 59.94p, 50p
Signal Processing
Y/PB/PR, 4:2:2 10 bit
ST 2110-20
Yes
AUDIO FORMAT
ST 2110-30 (AES67)
48 kHz/24 bit
SYNCHRONIZATION
PTP Sync
QSFP and GbE, both ports supported (QSFP is a future option for AT-KC200L1.)
FS (Frame Synchronizer)
All input channels, always ON (without ON/OFF)
Frame Delay
0 frame to 12 frame, by 1-frame step
Latency Min.
1-frame
MULTIVIEWER/CANVAS
Multiviewer Output Format, Display
HD/4K × 4 out, max. 36 PiP for each
Canvas
Up to 8K (32 M-pixels)
LAYERS
Number of Layer, Scene (ME) and Key
No restriction, depend on GPU performance, Visible usage with GPU meter
PLAYER
Still Store
7 GB storage, up to 4K
RAM Player (uncompressed)
8 CH, 32 GB storage
Clip Player (compressed)
2 CH, 400 GB storage (share with audio player), AVC-Intra/H.264/DN×HD/ProRes
Audio Player (compressed)
4 CH, 400 GB storage (share with clip player), WAV/MP3/Ogg/FLAC/AIFF
TALLY, EXTERNAL DEVICE SUPPORT
6-color Independent Tally Indicators
Yes
NDI® Tally
Yes
Supported Tally Protocol
Yes - TSL 5.0, Compatible with Panasonic PTZ Camera and AK-UC4000 4K Studio Camera.
Compatible External Tally Box
Yes
Connectable Control Panel
Total 16 units (AT-KC10C1G or AT-KC10C2G, each up to 8 units)
PTZ Control of Panasonic PTZ Camera
Yes
SUPPORTED STANDARDS AND PROTOCOLS
REST API
Yes - Protocol, The command table is available from the PASS KAIROS Website.
Ross Talk
Yes - Optional AT-SFE01 is required.
TSL 5.0
Yes
NMOS
Yes - Optional AT-SFE03 is required.
AMP (Advanced Media Protocol)
Yes
ST 2110
ST 2110-10, ST 2110-20, ST 2110-30
COMMON FEATURES
Effect
Luminance Key, Chroma Key, DVE (2D/2.5D), Soft Border, Corner Fix , Color Correction, Crop
Transition
Multimix, Offset Transition, Transition Effects
Macro
Scene-Specific Macros, LUA Script Support
Color Mat
Bicolor Wash Mat, Test Pattern
Other Functions
Audio Mixer, Title Generator, Snapshot, Multiviewer Display (GPU Meter, Audio Level Meter, Clock, etc.), User Management Function
