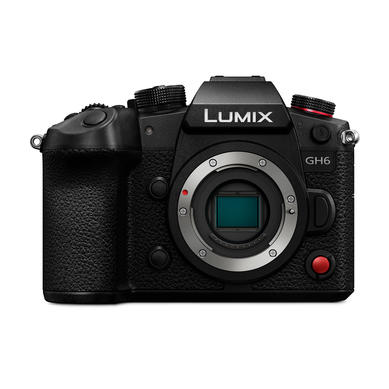

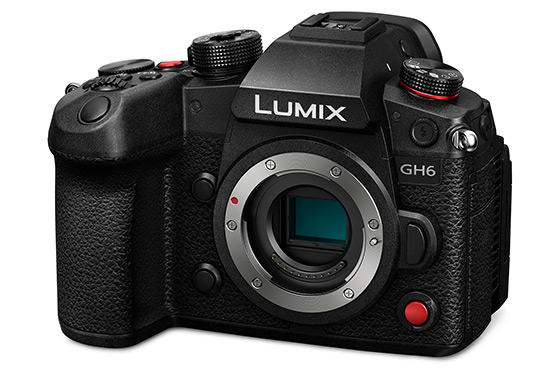

Panasonic LUMIX GH6 Camera Body
Meet the New LUMIX GH6
The category-defining camera—powerful, reliable, unlimited—now with higher resolution and bit rates than ever before, even more robust image stabilization, and other important upgrades for pro-level quality.
PRODUCT DETAILS
The LUMIX GH6 with a 25.2-MP Live MOS Sensor without LPF (low-pass filter) increases effective pixel count by more than 20% for high-resolution, high-speed signal readout and wide dynamic range. The image processor with doubled processing speed integrates New Intelligent Detail Processing, New 2D Noise Reduction, and High Precision 3D Noise Reduction for video.
KEY FEATURES
- The category-defining camera—powerful, reliable, unlimited—now with higher resolution and bit rates than ever before, even more robust image stabilization, and other important upgrades for pro-level quality
- Higher Resolution and Bit Rates than Ever Before: 25MP Sensor and Venus Engine with 100MP Hand-Held High Resolution Shot; 5.7K 60p, 4K 120p 10-bit video and all recording modes are no time limit
- Incredible Image Quality and Versatility: Internal recording in Apple ProRes 422 HQ and 422 to deliver high image quality at low compression; Pre-installed V-Log/V-Gamut and +13-stops of dynamic range with Dynamic Range Boost
- Unbelievably Stable, Even in Low Light: Powerful 5-axis Dual I.S. 2 provides up to 7.5-stops of correction; Full-HD High frame rate video at 300fps (12.5x) slow motion
- New 25MP Sensor and Venus Engine
- 100MP Hand-Held High Resolution Shot
- 5.7K 60p, 4K 120p 10-bit video and no time limit1 for C4K/4K 60p
- Internal recording in Apple ProRes 422 HQ and 422
- Pre-installed V-Log/V-Gamut and +13–stops of dynamic range with Dynamic Range Boost2
- Full-HD High frame rate video at 300fps (12.5x) slow motion
- Powerful 5-axis Dual I.S. 2 provides up to 7.5-stops of correction3
TYPE
Type: Digital Single Lens Mirrorless camera
Lens mount: Micro Four Thirds mount
IMAGE SENSOR
Type: Live MOS sensor (17.3 x 13.0 mm)
Camera effective pixels / Total pixels: 25.21 megapixels / 26.52 megapixels
AR (Anti Reflection) coating: Yes
Aspect ratio / Color filter: 4:3 / Primary color filter
Dust reduction system: Image sensor shift type
LATITUDE
Dynamic Range Boost ON: 13+ stops (V-Log)
Dynamic Range Boost OFF: 12+ stops (V-Log)
STILL IMAGE
MP4 (*1)
50.00Hz
[5.7K] 5728x3024 (17:9)
-25.00p, 1.6Gbps (ProRes 422 HQ) / 1.1Gbps (ProRes 422) (H.264/MPEG-4 AVC, LPCM)
24.00Hz
[5.7K] 5728x3024 (17:9)
-24.00p, 1.5Gbps (ProRes 422 HQ) / 1.0Gbps (ProRes 422) (H.264/MPEG-4 AVC, LPCM)
*When Image Area of Video is set to FULL.
[C4K] 4096x2160
-59.94p (Maximum output of sensor is 120fps), 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
-29.97p (Maximum output of sensor is 60fps), 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
-29.97p (Maximum output of sensor is 120fps), 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
-23.98p (Maximum output of sensor is 60fps), 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
-23.98p (Maximum output of sensor is 120fps), 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
*Maximum output of sensor is 60fps when Dynamic Range Boost is set to ON.
[4K] 3840x2160
-59.94p (Maximum output of sensor is 120fps), 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
-29.97p (Maximum output of sensor is 60fps), 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
-29.97p (Maximum output of sensor is 120fps), 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
-23.98p (Maximum output of sensor is 60fps), 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
-23.98p (Maximum output of sensor is 120fps), 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
*Maximum output of sensor is 60fps when Dynamic Range Boost is set to ON.
[FHD] 1920x1080
-59.94p (Maximum output of sensor is 240fps), 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)*
-59.94p (Maximum output of sensor is 300fps), 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
-29.97p (Maximum output of sensor is 240fps), 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)*
-29.97p (Maximum output of sensor is 300fps), 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
-23.98p (Maximum output of sensor is 240fps), 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)*
-23.98p (Maximum output of sensor is 300fps), 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
*Maximum output of sensor is 60fps when Dynamic Range Boost is set to ON.
*Maximum output of sensor is 120fps when Image Area of Video is set to PIXEL/PIXEL.
50.00Hz
[5.7K] 5728x3024 (17:9)
Type: Digital Single Lens Mirrorless camera
Lens mount: Micro Four Thirds mount
IMAGE SENSOR
Type: Live MOS sensor (17.3 x 13.0 mm)
Camera effective pixels / Total pixels: 25.21 megapixels / 26.52 megapixels
AR (Anti Reflection) coating: Yes
Aspect ratio / Color filter: 4:3 / Primary color filter
Dust reduction system: Image sensor shift type
LATITUDE
Dynamic Range Boost ON: 13+ stops (V-Log)
Dynamic Range Boost OFF: 12+ stops (V-Log)
STILL IMAGE
Recording file format: JPEG (DCF, Exif 2.31), RAW
Aspect ratio: 4:3 / 3:2 / 16:9 / 1:1
Image quality: RAW / RAW+Fine / RAW+Standard / Fine / Standard
Color space: sRGB, AdobeRGB
Color space: sRGB, AdobeRGB
File size (Pixels):
4:3: 5776x4336(L) / 4096x3072(M) / 2944x2208(S) / 11552x8672(XL)* / 8192x6144(LL)*
*High Resolution Mode.
3:2: 5776x3848(L) / 4096x2728(M) / 2944x1960(S) / 11552x7696(XL)* / 8192x5464(LL)*
*High Resolution Mode.
16:9: "5776x3248(L) / 4096x2304(M) / 2944x1656(S) / 11552x6496(XL)* / 8192x4608(LL)*
*High Resolution Mode.
1:14336x4336(L) / 3072x3072(M) / 2208x2208(S) / 8672x8672(XL)* / 6144x6144(LL)*
*High Resolution Mode.
4:3: 5776x4336(L) / 4096x3072(M) / 2944x2208(S) / 11552x8672(XL)* / 8192x6144(LL)*
*High Resolution Mode.
3:2: 5776x3848(L) / 4096x2728(M) / 2944x1960(S) / 11552x7696(XL)* / 8192x5464(LL)*
*High Resolution Mode.
16:9: "5776x3248(L) / 4096x2304(M) / 2944x1656(S) / 11552x6496(XL)* / 8192x4608(LL)*
*High Resolution Mode.
1:14336x4336(L) / 3072x3072(M) / 2208x2208(S) / 8672x8672(XL)* / 6144x6144(LL)*
*High Resolution Mode.
MOTION PICTURE
Recording file format: MOV: H.264/MPEG-4 AVC, H.265/HEVC, ProRes
MP4: H.264/MPEG-4 AVC, H.265/HEVC
Audio format: MOV: LPCM (2ch 48kHz/24-bit, 96kHz/24-bit*) (4ch 48kHz/24-bit**, 96kHz/24-bit**)
MP4: AAC (2ch 48kHz/16-bit)

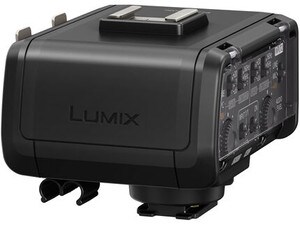

*When attaching Φ3.5mm microphone or DMW-XLR1 (sold separately). **When attaching DMW-XLR1 (sold separately)."
System frequency: 59.94Hz / 50.00Hz / 24.00Hz
Image area of video: Full / Pixel by Pixel
Recording file format: MOV: H.264/MPEG-4 AVC, H.265/HEVC, ProRes
MP4: H.264/MPEG-4 AVC, H.265/HEVC
Audio format: MOV: LPCM (2ch 48kHz/24-bit, 96kHz/24-bit*) (4ch 48kHz/24-bit**, 96kHz/24-bit**)
MP4: AAC (2ch 48kHz/16-bit)
*When attaching Φ3.5mm microphone or DMW-XLR1 (sold separately). **When attaching DMW-XLR1 (sold separately)."
System frequency: 59.94Hz / 50.00Hz / 24.00Hz
Image area of video: Full / Pixel by Pixel
MOV (*1) (*2)
*HLG is selectable.
59.94Hz
[5.8K] 5760x4320 (4:3)
-29.97p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
-23.98p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)"
[5.7K] 5728x3024 (17:9)
-59.94p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
-47.95p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
-29.97p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
-23.98p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
-239.76p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*/**
-119.88p, 400Mbps (4:2:2 10-bit ALL-Intra) / 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)*
-119.88p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
-59.94p, 200Mbps (4:2:2 10-bit ALL-Intra) / 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
-59.94p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
-59.94i, 100Mbps (4:2:2 10-bit ALL-Intra) / 50Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
-47.95p, 200Mbps (4:2:2 10-bit ALL-Intra) / 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
-47.95p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
-29.97p, 200Mbps (4:2:2 10-bit ALL-Intra) / 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
-29.97p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
-23.98p, 200Mbps (4:2:2 10-bit ALL-Intra) / 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
-23.98p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
*When Dynamic Range Boost is set to OFF. **When Image Area of Video is set to FULL.
50.00Hz
[5.8K] 5760x4320 (4:3)
-25.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
[5.7K] 5728x3024 (17:9)
-50.00p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
-25.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
[4.4K] 4352x3264 (4:3)
-50.00p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
*HLG is selectable.
59.94Hz
[5.8K] 5760x4320 (4:3)
-29.97p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
-23.98p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)"
[5.7K] 5728x3024 (17:9)
-59.94p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
-47.95p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
-29.97p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
-23.98p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
[4.4K] 4352x3264 (4:3)
-59.94p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
-59.94p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
-47.95p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
[C4K] 4096x2160
-119.88p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
-59.94p, 800Mbps (4:2:2 10-bit ALL-Intra) / 600Mbps (4:2:2 10-bit ALL-Intra) / 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
-59.94p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
-47.95p, 800Mbps (4:2:2 10-bit ALL-Intra) / 600Mbps (4:2:2 10-bit ALL-Intra) / 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
-47.95p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
-29.97p, 400Mbps (4:2:2 10-bit ALL-Intra) / 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
-29.97p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
-23.98p, 400Mbps (4:2:2 10-bit ALL-Intra) / 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
-23.98p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
*When Dynamic Range Boost is set to OFF.
[4K] 3840x2160
-119.88p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
-59.94p, 800Mbps (4:2:2 10-bit ALL-Intra) / 600Mbps (4:2:2 10-bit ALL-Intra) / 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
-59.94p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
-47.95p, 800Mbps (4:2:2 10-bit ALL-Intra) / 600Mbps (4:2:2 10-bit ALL-Intra) / 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
-47.95p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
-29.97p, 400Mbps (4:2:2 10-bit ALL-Intra) / 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
-29.97p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
-23.98p, 400Mbps (4:2:2 10-bit ALL-Intra) / 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
-23.98p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
*When Dynamic Range Boost is set to OFF.
[C4K] 4096x2160
-119.88p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
-59.94p, 800Mbps (4:2:2 10-bit ALL-Intra) / 600Mbps (4:2:2 10-bit ALL-Intra) / 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
-59.94p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
-47.95p, 800Mbps (4:2:2 10-bit ALL-Intra) / 600Mbps (4:2:2 10-bit ALL-Intra) / 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
-47.95p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
-29.97p, 400Mbps (4:2:2 10-bit ALL-Intra) / 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
-29.97p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
-23.98p, 400Mbps (4:2:2 10-bit ALL-Intra) / 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
-23.98p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
*When Dynamic Range Boost is set to OFF.
[4K] 3840x2160
-119.88p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
-59.94p, 800Mbps (4:2:2 10-bit ALL-Intra) / 600Mbps (4:2:2 10-bit ALL-Intra) / 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
-59.94p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
-47.95p, 800Mbps (4:2:2 10-bit ALL-Intra) / 600Mbps (4:2:2 10-bit ALL-Intra) / 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
-47.95p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
-29.97p, 400Mbps (4:2:2 10-bit ALL-Intra) / 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
-29.97p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
-23.98p, 400Mbps (4:2:2 10-bit ALL-Intra) / 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
-23.98p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
*When Dynamic Range Boost is set to OFF.
[FHD] 1920x1080
-239.76p, 800Mbps (4:2:2 10-bit ALL-Intra) / 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)*/** -239.76p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*/**
-119.88p, 400Mbps (4:2:2 10-bit ALL-Intra) / 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)*
-119.88p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
-59.94p, 200Mbps (4:2:2 10-bit ALL-Intra) / 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
-59.94p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
-59.94i, 100Mbps (4:2:2 10-bit ALL-Intra) / 50Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
-47.95p, 200Mbps (4:2:2 10-bit ALL-Intra) / 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
-47.95p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
-29.97p, 200Mbps (4:2:2 10-bit ALL-Intra) / 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
-29.97p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
-23.98p, 200Mbps (4:2:2 10-bit ALL-Intra) / 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
-23.98p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
*When Dynamic Range Boost is set to OFF. **When Image Area of Video is set to FULL.
50.00Hz
[5.8K] 5760x4320 (4:3)
-25.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
[5.7K] 5728x3024 (17:9)
-50.00p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
-25.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
[4.4K] 4352x3264 (4:3)
-50.00p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
[C4K] 4096x2160
-100.00p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
-50.00p, 800Mbps (4:2:2 10-bit ALL-Intra) / 600Mbps (4:2:2 10-bit ALL-Intra) / 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
-50.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
-25.00p, 400Mbps (4:2:2 10-bit ALL-Intra) / 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
-25.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
*When Dynamic Range Boost is set to OFF.
[4K] 3840x2160
-100.00p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
-50.00p, 800Mbps (4:2:2 10-bit ALL-Intra) / 600Mbps (4:2:2 10-bit ALL-Intra) / 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
-50.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
-25.00p, 400Mbps (4:2:2 10-bit ALL-Intra) / 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
-25.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
*When Dynamic Range Boost is set to OFF.
[FHD] 1920x1080
-50.00p, 800Mbps (4:2:2 10-bit ALL-Intra) / 600Mbps (4:2:2 10-bit ALL-Intra) / 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
-50.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
-25.00p, 400Mbps (4:2:2 10-bit ALL-Intra) / 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
-25.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
*When Dynamic Range Boost is set to OFF.
[4K] 3840x2160
-100.00p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
-50.00p, 800Mbps (4:2:2 10-bit ALL-Intra) / 600Mbps (4:2:2 10-bit ALL-Intra) / 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
-50.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
-25.00p, 400Mbps (4:2:2 10-bit ALL-Intra) / 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
-25.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
*When Dynamic Range Boost is set to OFF.
[FHD] 1920x1080
-200.00p, 800Mbps (4:2:2 10-bit ALL-Intra) / 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)*/**
-200.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*/**
-100.00p, 400Mbps (4:2:2 10-bit ALL-Intra) / 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)*
-100.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
-50.00p, 200Mbps (4:2:2 10-bit ALL-Intra) / 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
-50.00p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
-50.00i, 100Mbps (4:2:2 10-bit ALL-Intra) / 50Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
-25.00p, 200Mbps (4:2:2 10-bit ALL-Intra) / 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
-25.00p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
*When Dynamic Range Boost is set to OFF. **When Image Area of Video is set to FULL.
24.00Hz
-200.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*/**
-100.00p, 400Mbps (4:2:2 10-bit ALL-Intra) / 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)*
-100.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
-50.00p, 200Mbps (4:2:2 10-bit ALL-Intra) / 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
-50.00p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
-50.00i, 100Mbps (4:2:2 10-bit ALL-Intra) / 50Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
-25.00p, 200Mbps (4:2:2 10-bit ALL-Intra) / 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
-25.00p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
*When Dynamic Range Boost is set to OFF. **When Image Area of Video is set to FULL.
24.00Hz
[5.8K] 5760x4320 (4:3)
-24.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
-24.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
[5.7K] 5728x3024 (17:9)
-48.00p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
-24.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
[4.4K] 4352x3264 (4:3)
-48.00p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
[C4K] 4096x2160
-120.00p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
-24.00p, 400Mbps (4:2:2 10-bit ALL-Intra) / 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
-24.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
*When Dynamic Range Boost is set to OFF.
[4K] 3840x2160
-120.00p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
-24.00p, 400Mbps (4:2:2 10-bit ALL-Intra) / 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
-24.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
*When Dynamic Range Boost is set to OFF.
[FHD] 1920x1080
-120.00p, 400Mbps (4:2:2 10-bit ALL-Intra) / 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)*
-120.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
-24.00p, 200Mbps (4:2:2 10-bit ALL-Intra) / 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
-24.00p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
*When Dynamic Range Boost is set to OFF.
-24.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
[4.4K] 4352x3264 (4:3)
-48.00p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
[C4K] 4096x2160
-120.00p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
-24.00p, 400Mbps (4:2:2 10-bit ALL-Intra) / 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
-24.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
*When Dynamic Range Boost is set to OFF.
[4K] 3840x2160
-120.00p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
-24.00p, 400Mbps (4:2:2 10-bit ALL-Intra) / 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
-24.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
*When Dynamic Range Boost is set to OFF.
[FHD] 1920x1080
-120.00p, 400Mbps (4:2:2 10-bit ALL-Intra) / 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)*
-120.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
-24.00p, 200Mbps (4:2:2 10-bit ALL-Intra) / 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
-24.00p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
*When Dynamic Range Boost is set to OFF.
MP4 (*1)
59.94Hz
[4K] 3840x2160
-59.94p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, AAC)*
-29.97p, 72Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, AAC)*
-23.98p, 72Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, AAC)*
-29.97p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
-23.98p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
*HLG is selectable.
[FHD] 1920x1080
-59.94p, 28Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
-29.97p, 20Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
-23.98p, 24Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
50.00Hz
[4K] 3840x2160
-50.00p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, AAC)*
-25.00p, 72Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, AAC)*
-25.00p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
*HLG is selectable.
[FHD] 1920x1080
-50.00p, 28Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
-25.00p, 20Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
-29.97p, 72Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, AAC)*
-23.98p, 72Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, AAC)*
-29.97p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
-23.98p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
*HLG is selectable.
[FHD] 1920x1080
-59.94p, 28Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
-29.97p, 20Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
-23.98p, 24Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
50.00Hz
[4K] 3840x2160
-50.00p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, AAC)*
-25.00p, 72Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, AAC)*
-25.00p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
*HLG is selectable.
[FHD] 1920x1080
-50.00p, 28Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
-25.00p, 20Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
ProRes (*1) (*2)
59.94Hz
59.94Hz
[5.7K] 5728x3024 (17:9)
-29.97p, 1.9Gbps (ProRes 422 HQ) / 1.3Gbps (ProRes 422) (H.264/MPEG-4 AVC, LPCM)
-23.98p, 1.5Gbps (ProRes 422 HQ) / 1.0Gbps (ProRes 422) (H.264/MPEG-4 AVC, LPCM)-29.97p, 1.9Gbps (ProRes 422 HQ) / 1.3Gbps (ProRes 422) (H.264/MPEG-4 AVC, LPCM)
50.00Hz
[5.7K] 5728x3024 (17:9)
-25.00p, 1.6Gbps (ProRes 422 HQ) / 1.1Gbps (ProRes 422) (H.264/MPEG-4 AVC, LPCM)
24.00Hz
[5.7K] 5728x3024 (17:9)
-24.00p, 1.5Gbps (ProRes 422 HQ) / 1.0Gbps (ProRes 422) (H.264/MPEG-4 AVC, LPCM)
VARIABLE FRAME RATE
MOV (*1)
*HLG is selectable.
59.94Hz
[5.7K] 5728x3024 (17:9)
-29.97p (Maximum output of sensor is 60fps), 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
-23.98p (Maximum output of sensor is 60fps), 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)**When Image Area of Video is set to FULL.
[C4K] 4096x2160
-59.94p (Maximum output of sensor is 120fps), 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
-29.97p (Maximum output of sensor is 60fps), 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
-29.97p (Maximum output of sensor is 120fps), 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
-23.98p (Maximum output of sensor is 60fps), 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
-23.98p (Maximum output of sensor is 120fps), 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
*Maximum output of sensor is 60fps when Dynamic Range Boost is set to ON.
[4K] 3840x2160
-59.94p (Maximum output of sensor is 120fps), 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
-29.97p (Maximum output of sensor is 60fps), 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
-29.97p (Maximum output of sensor is 120fps), 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
-23.98p (Maximum output of sensor is 60fps), 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
-23.98p (Maximum output of sensor is 120fps), 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
*Maximum output of sensor is 60fps when Dynamic Range Boost is set to ON.
[FHD] 1920x1080
-59.94p (Maximum output of sensor is 240fps), 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)*
-59.94p (Maximum output of sensor is 300fps), 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
-29.97p (Maximum output of sensor is 240fps), 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)*
-29.97p (Maximum output of sensor is 300fps), 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
-23.98p (Maximum output of sensor is 240fps), 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)*
-23.98p (Maximum output of sensor is 300fps), 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
*Maximum output of sensor is 60fps when Dynamic Range Boost is set to ON.
*Maximum output of sensor is 120fps when Image Area of Video is set to PIXEL/PIXEL.
50.00Hz
[5.7K] 5728x3024 (17:9)
-25.00p (Maximum output of sensor is 60fps), 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
*When Image Area of Video is set to FULL.
[C4K] 4096x2160
-50.00p (Maximum output of sensor is 120fps), 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
-25.00p (Maximum output of sensor is 60fps), 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
-25.00p (Maximum output of sensor is 120fps), 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
*Maximum output of sensor is 60fps when Dynamic Range Boost is set to ON.
[4K] 3840x2160
-50.00p (Maximum output of sensor is 120fps), 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
-25.00p (Maximum output of sensor is 60fps), 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
-25.00p (Maximum output of sensor is 120fps), 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
*Maximum output of sensor is 60fps when Dynamic Range Boost is set to ON.
[FHD] 1920x1080
-50.00p (Maximum output of sensor is 240fps), 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)*
-50.00p (Maximum output of sensor is 300fps), 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
-25.00p (Maximum output of sensor is 240fps), 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)*
-25.00p (Maximum output of sensor is 300fps), 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
*Maximum output of sensor is 60fps when Dynamic Range Boost is set to ON.
*Maximum output of sensor is 120fps when Image Area of Video is set to PIXEL/PIXEL."
OSD LANGUAGE
Please refer to "OSD" Sheet
PRINT
PictBridge compatible
INTERFACE
USB: USB Type-C (SuperSpeed USB 10Gbps (USB 3.2 Gen2))
*When Image Area of Video is set to FULL.
[C4K] 4096x2160
-50.00p (Maximum output of sensor is 120fps), 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
-25.00p (Maximum output of sensor is 60fps), 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
-25.00p (Maximum output of sensor is 120fps), 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
*Maximum output of sensor is 60fps when Dynamic Range Boost is set to ON.
[4K] 3840x2160
-50.00p (Maximum output of sensor is 120fps), 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
-25.00p (Maximum output of sensor is 60fps), 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
-25.00p (Maximum output of sensor is 120fps), 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
*Maximum output of sensor is 60fps when Dynamic Range Boost is set to ON.
[FHD] 1920x1080
-50.00p (Maximum output of sensor is 240fps), 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)*
-50.00p (Maximum output of sensor is 300fps), 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
-25.00p (Maximum output of sensor is 240fps), 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)*
-25.00p (Maximum output of sensor is 300fps), 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
*Maximum output of sensor is 60fps when Dynamic Range Boost is set to ON.
*Maximum output of sensor is 120fps when Image Area of Video is set to PIXEL/PIXEL."
24.00Hz
[5.7K] 5728x3024 (17:9)
-24.00p (Maximum output of sensor is 60fps), 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
*When Image Area of Video is set to FULL.
[C4K] 4096x2160
-24.00p (Maximum output of sensor is 60fps), 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
-24.00p (Maximum output of sensor is 120fps), 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
*Maximum output of sensor is 60fps when Dynamic Range Boost is set to ON.
[4K] 3840x2160
-24.00p (Maximum output of sensor is 60fps), 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
-24.00p (Maximum output of sensor is 120fps), 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
*Maximum output of sensor is 60fps when Dynamic Range Boost is set to ON.
[FHD] 1920x1080
-24.00p (Maximum output of sensor is 240fps), 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)*
-24.00p (Maximum output of sensor is 300fps), 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
*Maximum output of sensor is 60fps when Dynamic Range Boost is set to ON.
*Maximum output of sensor is 120fps when Image Area of Video is set to PIXEL/PIXEL.
VIEWFINDER
Type: OLED Live View Finder
Pixels: Approx. 3.68 million dots
Field of view / Magnification: Approx. 100% / Approx. 1.52x / 0.76x (35mm camera equivalent) with 50 mm lens at infinity; -1.0 m-1, when the aspect ratio is set to 4:3
-24.00p (Maximum output of sensor is 120fps), 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
*Maximum output of sensor is 60fps when Dynamic Range Boost is set to ON.
[4K] 3840x2160
-24.00p (Maximum output of sensor is 60fps), 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
-24.00p (Maximum output of sensor is 120fps), 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
*Maximum output of sensor is 60fps when Dynamic Range Boost is set to ON.
[FHD] 1920x1080
-24.00p (Maximum output of sensor is 240fps), 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)*
-24.00p (Maximum output of sensor is 300fps), 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
*Maximum output of sensor is 60fps when Dynamic Range Boost is set to ON.
*Maximum output of sensor is 120fps when Image Area of Video is set to PIXEL/PIXEL.
VIEWFINDER
Type: OLED Live View Finder
Pixels: Approx. 3.68 million dots
Field of view / Magnification: Approx. 100% / Approx. 1.52x / 0.76x (35mm camera equivalent) with 50 mm lens at infinity; -1.0 m-1, when the aspect ratio is set to 4:3
Eye point / Diopter adjustment: Approx. 21 mm at infinity; -1.0 m-1 / -4.0 - +3.0 (dpt)
Eye sensor: Yes
REAR MONITOR
Type: TFT LCD monitor with static touch control
Monitor size: Tilt free-angle, 3.0-inch (7.6cm), 3:2 aspect
Pixels: Approx. 1.84 million dots
Field of view: Approx. 100%
Type: TFT LCD monitor with static touch control
Monitor size: Tilt free-angle, 3.0-inch (7.6cm), 3:2 aspect
Pixels: Approx. 1.84 million dots
Field of view: Approx. 100%
FOCUS (*3)
Type: Contrast AF system
DFD technology: Yes
Focus mode: AFS (Single) / AFC (Continuous) / MF
AF mode: Tracking / Full Area AF / Zone (Horizontal/Vertical) / Zone / 1-Area+ / 1-Area / Pinpoint
*Automatic Detection can be turned ON to switch between Human/ Face/Eye/ Animal+Human. Except when Pinpoint is set.
AF detective range: EV -4 - 18 (F2.0, ISO100 equivalent, AFS)
AF custom setting: AF Sensitivity, AF Area Switching Sensitivity, Moving Object Prediction
AF assist light: Yes
AF lock: Set the Fn button in custom menu to AF lock
Focus ring control: Nonlinear / Linear* (90°/ 120°/ 150°/ 180°/ 210°/ 240°/ 270°/ 300°/ 330°/ 360°/ 720°/ 1080°/ Maximum) *When a compatible lens is attached.
Others: AF-ON, AF-ON: Near Shift, AF-ON: Far Shift, Focus Limiter, Focus Peaking, 1-Area AF Moving Speed, Continuous AF (during motion picture recording), Focus/Shutter Priority, Focus Switching for Vert/Hor, AF/AE Lock Hold, AF+MF, MF Assist, MF Guide, Focus Ring Lock, Show/Hide AF Mode, Shutter AF, Half Press Shutter, Quick AF, Eye Sensor AF, Loop Focus Frame, Enlarged Live Display (Video), Touch Shutter, Touch AF/AE Function, Touch Pad AF, Lens Focus Resume
EXPOSURE CONTROL
Light metering system: 1,728-zone multi-pattern sensing system
Light metering mode: Multiple / Center Weighted / Spot / Highlight Weighted
Metering range: EV0-18 (F2.0 lens, ISO100 equivalent)
Mode dial: Program AE (P) / Aperture Priority AE (A) / Shutter Priority AE (S) / Manual Exposure (M) / Creative Video (P/A/S/M)* / Custom 1, 2, 3, 4 / Intelligent Auto
*The same exposure operations as P/A/S/M mode is available.
Exposure compensation: 1/3 EV step ±5EV (±3EV for motion picture)
Dynamic Range Boost: ON / OFF
ISO sensitivity (Standard output sensitivity)
Still image:
-[Normal]
Auto / 50 (Extended ISO) / 100-25600
-[V-Log]
Auto / 125 (Extended ISO) / 250-12800
*Switchable between 1/3 or 1 EV step.
Motion picture:
-[Normal]
Dynamic Range Boost OFF (Base ISO 100): Auto / 50 (Extended ISO) / 100-12800
Dynamic Range Boost ON (Creative Video Mode) (Base ISO 800): Auto / 800-12800
-[V-Log]
Dynamic Range Boost OFF (Base ISO 250): Auto / 125 (Extended ISO) / 250-12800
Dynamic Range Boost ON (Creative Video Mode) (Base ISO 2000): Auto / 2000-12800
-[Hybrid Log Gamma]
Dynamic Range Boost OFF (Base ISO 250): Auto / 250-12800
Dynamic Range Boost ON (Creative Video Mode) (Base ISO 2000): Auto / 2000-12800
*Switchable between 1/3 or 1 EV step.
IMAGE STABILIZATION SYSTEM
-B.I.S. (5-axis / 7.5-stop*)
*Based on the CIPA standard [Yaw/Pitch direction: focusing distance f=60mm (35mm camera equivalent f=120mm) when H-ES12060 is used.
-Dual I.S. 2 (7.5-stop**)
**Based on the CIPA standard [Yaw/Pitch direction: focusing distance f=140mm (35mm camera equivalent f=280mm) when H-FS14140 is used.
WHITE BALANCE
White balance: AWB / AWBc / AWBw / Daylight / Cloudy / Shade / Incandescent / Flash / White Set 1, 2, 3, 4 / Color temperature setting 1, 2, 3, 4
White balance adjustment: Blue/Amber bias, Magenta/Green bias
Color temperature setting: 2500-10000K in 100K
SHUTTER
Type: Focal-plane shutter
Shutter speed:
-Still image: Bulb (Max. 30 minutes), 1/8,000 - 60
-Electronic front curtain shutter: Bulb (Max. 30 minutes), 1/2,000 - 60
-Electronic shutter: Bulb (Max. 60 sec), 1/32,000 - 60
-Motion picture: 1/25,000 - 1/25
-Creative Video M mode / MF mode: 1/25,000 - 1/8
Self timer: 10sec, 3 images / 2sec / 10sec / Custom Time
Remote control: Remote control by DMW-RS2 (sold separately)
Silent mode / Shutter type: Yes / Yes (Auto / Mechanical / Electronic front curtain / Electronic / Electronic+NR)
BRACKET
AE bracket: 3, 5, 7 images in 1/3, 2/3 or 1 EV step, max. ±3 EV, single/burst
Aperture bracket: 3, 5 or all positions
Focus bracket: 1 to 999 images, focus steps can be set in 10 levels
White balance bracket: 3 images in blue/amber axis or in magenta/green axis, color temperature setting
BURST SHOOTING
Burst speed
Mechanical shutter / Electronic front curtain shutter:
-H: 14 frames/sec (AFS/MF), 8 frames/sec (AFC) (with Live View)
-M: 6 frames/sec (AFS/MF) (with Live View), 5 frames/sec (AFC) (with Live View)
-L: 2 frames/sec (AFS/MF/AFC) (with Live View)
Electronic shutter:
-SH75: 75 frames/sec (AFS/MF)
-SH60: 60 frames/sec (AFS/MF)
-SH20: 20 frames/sec (AFS/MF)
-H: 14 frames/sec (AFS/MF), 7 frames/sec (AFC) (with Live View)
-M: 6 frames/sec (AFS/MF) (with Live View), 5 frames/sec (AFC) (with Live View)
-L: 2 frames/sec (AFS/MF/AFC) (with Live View)
Number of recordable images
-H/M/L*
-RAW+JPEG: More than 40 images
-RAW: More than 65 images**, More than 50 images***
-JPEG: More than 95 images**, More than 90 images***
*Until the burst shooting speed slows. When recording is performed under the test conditions specified by Panasonic.
**When using a card with CFexpress Type B
***When using a card with SD Speed Class with ""UHS-II UHS Speed Class 3 (U3)"".
-SH
-RAW / RAW+JPEG / JPEG: 200 images
TIME LAPSE SHOT
Type: Contrast AF system
DFD technology: Yes
Focus mode: AFS (Single) / AFC (Continuous) / MF
AF mode: Tracking / Full Area AF / Zone (Horizontal/Vertical) / Zone / 1-Area+ / 1-Area / Pinpoint
*Automatic Detection can be turned ON to switch between Human/ Face/Eye/ Animal+Human. Except when Pinpoint is set.
AF detective range: EV -4 - 18 (F2.0, ISO100 equivalent, AFS)
AF custom setting: AF Sensitivity, AF Area Switching Sensitivity, Moving Object Prediction
AF assist light: Yes
AF lock: Set the Fn button in custom menu to AF lock
Focus ring control: Nonlinear / Linear* (90°/ 120°/ 150°/ 180°/ 210°/ 240°/ 270°/ 300°/ 330°/ 360°/ 720°/ 1080°/ Maximum) *When a compatible lens is attached.
Others: AF-ON, AF-ON: Near Shift, AF-ON: Far Shift, Focus Limiter, Focus Peaking, 1-Area AF Moving Speed, Continuous AF (during motion picture recording), Focus/Shutter Priority, Focus Switching for Vert/Hor, AF/AE Lock Hold, AF+MF, MF Assist, MF Guide, Focus Ring Lock, Show/Hide AF Mode, Shutter AF, Half Press Shutter, Quick AF, Eye Sensor AF, Loop Focus Frame, Enlarged Live Display (Video), Touch Shutter, Touch AF/AE Function, Touch Pad AF, Lens Focus Resume
EXPOSURE CONTROL
Light metering system: 1,728-zone multi-pattern sensing system
Light metering mode: Multiple / Center Weighted / Spot / Highlight Weighted
Metering range: EV0-18 (F2.0 lens, ISO100 equivalent)
Mode dial: Program AE (P) / Aperture Priority AE (A) / Shutter Priority AE (S) / Manual Exposure (M) / Creative Video (P/A/S/M)* / Custom 1, 2, 3, 4 / Intelligent Auto
*The same exposure operations as P/A/S/M mode is available.
Exposure compensation: 1/3 EV step ±5EV (±3EV for motion picture)
Dynamic Range Boost: ON / OFF
ISO sensitivity (Standard output sensitivity)
Still image:
-[Normal]
Auto / 50 (Extended ISO) / 100-25600
-[V-Log]
Auto / 125 (Extended ISO) / 250-12800
*Switchable between 1/3 or 1 EV step.
Motion picture:
-[Normal]
Dynamic Range Boost OFF (Base ISO 100): Auto / 50 (Extended ISO) / 100-12800
Dynamic Range Boost ON (Creative Video Mode) (Base ISO 800): Auto / 800-12800
-[V-Log]
Dynamic Range Boost OFF (Base ISO 250): Auto / 125 (Extended ISO) / 250-12800
Dynamic Range Boost ON (Creative Video Mode) (Base ISO 2000): Auto / 2000-12800
-[Hybrid Log Gamma]
Dynamic Range Boost OFF (Base ISO 250): Auto / 250-12800
Dynamic Range Boost ON (Creative Video Mode) (Base ISO 2000): Auto / 2000-12800
*Switchable between 1/3 or 1 EV step.
IMAGE STABILIZATION SYSTEM
-B.I.S. (5-axis / 7.5-stop*)
*Based on the CIPA standard [Yaw/Pitch direction: focusing distance f=60mm (35mm camera equivalent f=120mm) when H-ES12060 is used.
-Dual I.S. 2 (7.5-stop**)
**Based on the CIPA standard [Yaw/Pitch direction: focusing distance f=140mm (35mm camera equivalent f=280mm) when H-FS14140 is used.
WHITE BALANCE
White balance: AWB / AWBc / AWBw / Daylight / Cloudy / Shade / Incandescent / Flash / White Set 1, 2, 3, 4 / Color temperature setting 1, 2, 3, 4
White balance adjustment: Blue/Amber bias, Magenta/Green bias
Color temperature setting: 2500-10000K in 100K
SHUTTER
Type: Focal-plane shutter
Shutter speed:
-Still image: Bulb (Max. 30 minutes), 1/8,000 - 60
-Electronic front curtain shutter: Bulb (Max. 30 minutes), 1/2,000 - 60
-Electronic shutter: Bulb (Max. 60 sec), 1/32,000 - 60
-Motion picture: 1/25,000 - 1/25
-Creative Video M mode / MF mode: 1/25,000 - 1/8
Self timer: 10sec, 3 images / 2sec / 10sec / Custom Time
Remote control: Remote control by DMW-RS2 (sold separately)
Silent mode / Shutter type: Yes / Yes (Auto / Mechanical / Electronic front curtain / Electronic / Electronic+NR)
BRACKET
AE bracket: 3, 5, 7 images in 1/3, 2/3 or 1 EV step, max. ±3 EV, single/burst
Aperture bracket: 3, 5 or all positions
Focus bracket: 1 to 999 images, focus steps can be set in 10 levels
White balance bracket: 3 images in blue/amber axis or in magenta/green axis, color temperature setting
BURST SHOOTING
Burst speed
Mechanical shutter / Electronic front curtain shutter:
-H: 14 frames/sec (AFS/MF), 8 frames/sec (AFC) (with Live View)
-M: 6 frames/sec (AFS/MF) (with Live View), 5 frames/sec (AFC) (with Live View)
-L: 2 frames/sec (AFS/MF/AFC) (with Live View)
Electronic shutter:
-SH75: 75 frames/sec (AFS/MF)
-SH60: 60 frames/sec (AFS/MF)
-SH20: 20 frames/sec (AFS/MF)
-H: 14 frames/sec (AFS/MF), 7 frames/sec (AFC) (with Live View)
-M: 6 frames/sec (AFS/MF) (with Live View), 5 frames/sec (AFC) (with Live View)
-L: 2 frames/sec (AFS/MF/AFC) (with Live View)
Number of recordable images
-H/M/L*
-RAW+JPEG: More than 40 images
-RAW: More than 65 images**, More than 50 images***
-JPEG: More than 95 images**, More than 90 images***
*Until the burst shooting speed slows. When recording is performed under the test conditions specified by Panasonic.
**When using a card with CFexpress Type B
***When using a card with SD Speed Class with ""UHS-II UHS Speed Class 3 (U3)"".
-SH
-RAW / RAW+JPEG / JPEG: 200 images
TIME LAPSE SHOT
Yes
STOP MOTION ANIMATION
STOP MOTION ANIMATION
Yes
FLASH
PHOTO STYLE
Photo Style: Standard / Vivid / Natural / L. Classic Neo / Flat / Landscape / Portrait / Monochrome / L. Monochrome / L. Monochrome D / L. Monochrome S / Cinelike D2 / Cinelike V2 / Like709 / V-Log / Hybrid Log Gamma / My Photo Style 1-10
Picture adjustment: Contrast / Highlight / Shadow / Saturation / Color Tone / Hue / Filter Effect / Grain Effect / Color Noise / Sharpness / Noise Reduction / ISO / WB
*Adjustable settings vary depending on the Photo Style mode.
FILTER
Expressive / Retro / Old Days / High Key / Low Key / Sepia / Cross Process / Bleach Bypass
MOTION PICTURE FUNCTION
Master pedestal level: 31 steps
Luminance level: 8-bit: 0-255 / 16-235 / 16-255
10-bit: 0‒1023 / 64‒940 / 64‒1023"
Wave form monitor / Vectorscope: Selectable
LUT view assist:
Supported file types: .vlt, .cube
Monitor / HDMI
HLG view assist: Monitor (MODE1 / MODE2 / OFF) / HDMI (AUTO / MODE1 / MODE2 / OFF)
Anamorphic desqueeze display: 2.0x / 1.8x / 1.5x / 1.33x / 1.30x / OFF
Synchro scan: Yes
SS/Gain operation: Shutter Duration/ISO / Angle/ISO / Shutter Duration/dB
Color bars / 1kHz test tone: Yes (SMPTE / EBU / ARIB) / Yes
Knee control: Yes (in Like709 mode)
Red REC frame indicator: ON / OFF
VERTICAL POSITION INFORMATION
FLASH
Flash type: TTL External Flash (sold separately)
Flash mode: Auto* / Auto/Red-eye Reduction* / Forced On / Forced On/Red-eye Reduction / Slow Sync. / Slow Sync./Red-eye Reduction / Forced Off *For iA only.
Flash synchronization: 1st Curtain Sync, 2nd Curtain Sync.
Flash output adjustment: 1/3EV step ±3EV
Synchronization speedLess than 1/250 second
Wireless control: Yes (When using DMW-FL200L / FL360L / FL580L (sold separately)), Wireless Channel: 1ch/2ch/3ch/4ch
Flash sync socket: Yes
EXTRA TELE CONVERSION
2.0x (EX S), 1.4x (EX M)
*Only for still image recording.
*Only for still image recording.
PHOTO STYLE
Photo Style: Standard / Vivid / Natural / L. Classic Neo / Flat / Landscape / Portrait / Monochrome / L. Monochrome / L. Monochrome D / L. Monochrome S / Cinelike D2 / Cinelike V2 / Like709 / V-Log / Hybrid Log Gamma / My Photo Style 1-10
Picture adjustment: Contrast / Highlight / Shadow / Saturation / Color Tone / Hue / Filter Effect / Grain Effect / Color Noise / Sharpness / Noise Reduction / ISO / WB
*Adjustable settings vary depending on the Photo Style mode.
FILTER
Expressive / Retro / Old Days / High Key / Low Key / Sepia / Cross Process / Bleach Bypass
MOTION PICTURE FUNCTION
Master pedestal level: 31 steps
Luminance level: 8-bit: 0-255 / 16-235 / 16-255
10-bit: 0‒1023 / 64‒940 / 64‒1023"
Wave form monitor / Vectorscope: Selectable
LUT view assist:
Supported file types: .vlt, .cube
Monitor / HDMI
HLG view assist: Monitor (MODE1 / MODE2 / OFF) / HDMI (AUTO / MODE1 / MODE2 / OFF)
Anamorphic desqueeze display: 2.0x / 1.8x / 1.5x / 1.33x / 1.30x / OFF
Synchro scan: Yes
SS/Gain operation: Shutter Duration/ISO / Angle/ISO / Shutter Duration/dB
Color bars / 1kHz test tone: Yes (SMPTE / EBU / ARIB) / Yes
Knee control: Yes (in Like709 mode)
Red REC frame indicator: ON / OFF
VERTICAL POSITION INFORMATION
Still image / Motion picture (ON/OFF)
LEVEL GAUGE
LEVEL GAUGE
Yes
FUNCTION BUTTON
REC: Exposure Comp. / Dynamic Range Boost / Sensitivity / White Balance / Photo Style / Metering Mode / Aspect Ratio / Picture Quality / Picture Size / 1 Shot Spot Metering / Long Exposure NR / Min. Shutter Speed / 1 Shot RAW+JPG / Filter Effect / One Push AE / Touch AE / Exposure Mode / Synchro Scan / AF Mode / AF Detection Setting / Detecting Subject / AF Custom Setting(Photo) / AF Custom Setting(Video) / Focus Limiter / Focus Limiter Range Set / Focus Peaking / Focus Peaking Sensitivity / 1-Area AF Moving Speed / Focus Ring Lock / AE LOCK / AF LOCK / AF/AE LOCK / AF-ON / AF-ON: Near Shift / AF-ON: Far Shift / Focus Area Set / Enlarged Live Display (Video) / Flash Mode / Flash Adjust. / Wireless Flash Setup / Drive Mode Setting / Bracketing / Silent Mode / Image Stabilizer / Shutter Type / Ex. Tele Conv. / Rec. File Format / Rec Quality / Rec Quality (My List) / Variable Frame Rate / Time Code Display / Audio Information / Sound Rec Level Disp. / Mute Sound Input / Sound Rec Level Adj. / Sound Rec Quality / Sound Rec Level Limiter / 4ch Mic Input / XLR Mic Adaptor Setting / Sound Monitoring Channel / Image Stabilizer / E-Stabilization (Video) / Boost I.S. (Video) / Image Area of Video / Focus Transition / Q.MENU / Rec/Playback Switch / Video Record / Video Record (Creative Video) / LVF/Monitor Switch / Dial Operation Switch / Preview / Preview Aperture Effect / Constant Preview / Level Gauge / Histogram / Luminance Spot Meter / Frame Marker / Photo Grid Line / Live View Boost / Monochrome Live View / Night Mode / LVF/Monitor Disp. Set / Video-Priority Display / Zebra Pattern / LUT View Assist (Monitor) / LUT View Assist (HDMI) / LUT Select / HLG View Assist(Monitor) / HLG View Assist (HDMI) / Sheer Overlay / I.S. Status Scope / WFM/Vector Scope / Anamorphic Desqueeze Display / Color Bars / Focus Ring Control/ Zoom Control / Step Zoom / Zoom Speed / Lens Information / Destination Card Slot / Wi-Fi / Fan Mode / Save to Custom Mode / No Setting / Off (Disable Press and Hold) / Restore to Default
PLAY: Magnify from AF Point / LUT View Assist (Monitor) / HLG View Assist (Monitor) / Anamorphic Desqueeze Display / RAW Processing / Delete Single / Protect / Rating 1, 2, 3, 4, 5 / Copy / Rec/Playback Switch / LVF/Monitor Switch / Video Record / Video Record (Creative Video) / Night Mode / Card Slot Change / Sound Monitoring Channel(Play) / Wi-Fi / Fan Mode / Send Image (Smartphone) / LUT View Assist (HDMI) / HLG View Assist (HDMI) / No Setting / Off (Disable Press and Hold) / Restore to Default
REC: Exposure Comp. / Dynamic Range Boost / Sensitivity / White Balance / Photo Style / Metering Mode / Aspect Ratio / Picture Quality / Picture Size / 1 Shot Spot Metering / Long Exposure NR / Min. Shutter Speed / 1 Shot RAW+JPG / Filter Effect / One Push AE / Touch AE / Exposure Mode / Synchro Scan / AF Mode / AF Detection Setting / Detecting Subject / AF Custom Setting(Photo) / AF Custom Setting(Video) / Focus Limiter / Focus Limiter Range Set / Focus Peaking / Focus Peaking Sensitivity / 1-Area AF Moving Speed / Focus Ring Lock / AE LOCK / AF LOCK / AF/AE LOCK / AF-ON / AF-ON: Near Shift / AF-ON: Far Shift / Focus Area Set / Enlarged Live Display (Video) / Flash Mode / Flash Adjust. / Wireless Flash Setup / Drive Mode Setting / Bracketing / Silent Mode / Image Stabilizer / Shutter Type / Ex. Tele Conv. / Rec. File Format / Rec Quality / Rec Quality (My List) / Variable Frame Rate / Time Code Display / Audio Information / Sound Rec Level Disp. / Mute Sound Input / Sound Rec Level Adj. / Sound Rec Quality / Sound Rec Level Limiter / 4ch Mic Input / XLR Mic Adaptor Setting / Sound Monitoring Channel / Image Stabilizer / E-Stabilization (Video) / Boost I.S. (Video) / Image Area of Video / Focus Transition / Q.MENU / Rec/Playback Switch / Video Record / Video Record (Creative Video) / LVF/Monitor Switch / Dial Operation Switch / Preview / Preview Aperture Effect / Constant Preview / Level Gauge / Histogram / Luminance Spot Meter / Frame Marker / Photo Grid Line / Live View Boost / Monochrome Live View / Night Mode / LVF/Monitor Disp. Set / Video-Priority Display / Zebra Pattern / LUT View Assist (Monitor) / LUT View Assist (HDMI) / LUT Select / HLG View Assist(Monitor) / HLG View Assist (HDMI) / Sheer Overlay / I.S. Status Scope / WFM/Vector Scope / Anamorphic Desqueeze Display / Color Bars / Focus Ring Control/ Zoom Control / Step Zoom / Zoom Speed / Lens Information / Destination Card Slot / Wi-Fi / Fan Mode / Save to Custom Mode / No Setting / Off (Disable Press and Hold) / Restore to Default
PLAY: Magnify from AF Point / LUT View Assist (Monitor) / HLG View Assist (Monitor) / Anamorphic Desqueeze Display / RAW Processing / Delete Single / Protect / Rating 1, 2, 3, 4, 5 / Copy / Rec/Playback Switch / LVF/Monitor Switch / Video Record / Video Record (Creative Video) / Night Mode / Card Slot Change / Sound Monitoring Channel(Play) / Wi-Fi / Fan Mode / Send Image (Smartphone) / LUT View Assist (HDMI) / HLG View Assist (HDMI) / No Setting / Off (Disable Press and Hold) / Restore to Default
OSD LANGUAGE
Please refer to "OSD" Sheet
PictBridge compatible
INTERFACE
USB: USB Type-C (SuperSpeed USB 10Gbps (USB 3.2 Gen2))
Remote input: φ2.5mm
HDMI (*4)
HDMI:
HDMI TypeA
Audio: ON / OFF, MP4: 2ch, MOV: 2ch (When [4ch Mic Input] is set to OFF.), 4ch (When [4ch Mic Input] is set to ON.)
Monitor-through:
4:2:2 10bit (When [Rec Quality] is set to [4:2:2 10bit] or [4:2:0 10bit].)
4:2:2 8bit (When [Rec Quality] is set to [4:2:0 8bit].)
Down Convert: Auto / C4K/4K / 1080p / 1080i / OFF
Playback:
59.94Hz: 8K/30p* / C4K/120p** / C4K/60p / C4K/30p / 4K/120p** / 4K/60p / 4K/30p / 1080/120p / 1080p / 1080i / 720p** / 480p**
50.00Hz: 8K/25p* / C4K/100p** / C4K/50p / C4K/25p / 4K/100p** / 4K/50p / 4K/25p / 1080/100p / 1080p / 1080i / 720p** / 576p**
24.00Hz: 8K/24p* / C4K/120p** / C4K/24p / 4K/120p** / 4K/24p / 1080/120p / 1080p
*Only for still image playback. **Only for playback.
Audio
Build-in microphone: Stereo
Wind Noise Canceller: OFF / Standard / High
External microphone / External audio device input:
φ3.5mm for external microphone / external audio device
MIC (Plug-in Power) / MIC / LINE
Wind Cut: OFF / Low / Standard / High *When attaching DMW-MS2 (sold separately).
Special Mic: Stereo / Shotgun *When attaching DMW-MS2 (sold separately).
XLR microphone: Yes with DMW-XLR1 (sold separately)
4ch mic input: Yes with DMW-XLR1 (sold separately)
Speaker: Monaural
Headphone output: φ3.5mm
Card slot
TC IN/OUT
TC IN/OUT: Yes with BNC Converter Cable (bundled)
Count up: Rec Run / Free Run
Time code mode: Drop Frame / Non-Drop Frame (When system frequency [59.94Hz] is selected.)
HDMI time code output: ON / OFF
External TC setting: TC Synchronization / TC Output Reference
FAN
Auto1 / Auto2 / Fast / Normal / Slow / OFF* *OFF can be set when in iA/P/A/S/M mode.
LAMP
Tally Lamp (front/rear) / Card Access Light / Power Indicator / Charging Light/Network Connection Light
WIRELESS
Wi-Fi:
2.4GHz (STA/AP) (IEEE802.11b/g/n)
5GHz (STA) (IEEE 802.11a/n/ac)
Security: WPA/WPA2/WPA3
Please refer to ""Wi-Fi"" sheet
Bluetooth: Bluetooth® v5.0 (Bluetooth Low Energy (BLE))
DUST AND SPLASH RESISTANT*
Yes.
*Dust and Splash Resistant does not guarantee that damage will not occur if this camera is subjected to direct contact with dust and water."
POWER
Battery: Li-ion Battery Pack (7.2V, 2200mAh, 16Wh) (bundled)
USB power supply, USB power charging, USB power delivery
Battery life (CIPA standard)
When using CFexpress Card:
-Approx. 330 images, 750 images (Power Save LVF mode*) with H-ES12060 / DMW-BLK22
-Approx. 350 images, 800 images (Power Save LVF mode*) with H-FS12060 / DMW-BLK22
*Using a Lexar CFexpress Type B card. Under the test conditions specified by Panasonic based on CIPA standard. When the time to get in the sleep mode is set to 1 sec.
When using SD memory card:
-Approx. 360 images, 850 images (Power Save LVF mode*) with H-ES12060 / DMW-BLK22
-Approx. 380 images, 900 images (Power Save LVF mode*) with H-FS12060 / DMW-BLK22
*Using a Panasonic SDXC memory card. Under the test conditions specified by Panasonic based on CIPA standard. When the time to get in the sleep mode is set to 1 sec.
-MP4 [4K/60p]: Approx. 80 min with H-ES12060 / H-FS12060
-MP4 [FHD/60p]: Approx. 90 min with H-ES12060 / H-FS12060
When using SD memory card:
-MP4 [4K/60p]: Approx. 90 min with H-ES12060 / H-FS12060
-MP4 [FHD/60p]: Approx. 100 min with H-ES12060 / H-FS12060
Actual recordable time (Motion picture) (*1)
When using CFexpress Card:
-MP4 [4K/60p]: Approx. 40 min with H-ES12060 / H-FS12060
-MP4 [FHD/60p]: Approx. 45 min with H-ES12060 / H-FS12060
When using SD memory card:
-MP4 [4K/60p]: Approx. 45 min with H-ES12060 / H-FS12060
-MP4 [FHD/60p]: Approx. 50 min with H-ES12060 / H-FS12060
DIMENSIONS / WEIGHT
Dimensions (W x H x D): Approx. 138.4 x 100.3 x 99.6 mm / 5.45 x 3.95 x 3.92 inch (excluding protrusions)
Weight:
Approx. 823g / 1.81 lb (SD Memory Card x 1, Battery, Body)
Approx. 739g / 1.63 lb (Body only)"
HDMI (*4)
HDMI:
HDMI TypeA
Audio: ON / OFF, MP4: 2ch, MOV: 2ch (When [4ch Mic Input] is set to OFF.), 4ch (When [4ch Mic Input] is set to ON.)
Monitor-through:
4:2:2 10bit (When [Rec Quality] is set to [4:2:2 10bit] or [4:2:0 10bit].)
4:2:2 8bit (When [Rec Quality] is set to [4:2:0 8bit].)
Down Convert: Auto / C4K/4K / 1080p / 1080i / OFF
Playback:
59.94Hz: 8K/30p* / C4K/120p** / C4K/60p / C4K/30p / 4K/120p** / 4K/60p / 4K/30p / 1080/120p / 1080p / 1080i / 720p** / 480p**
50.00Hz: 8K/25p* / C4K/100p** / C4K/50p / C4K/25p / 4K/100p** / 4K/50p / 4K/25p / 1080/100p / 1080p / 1080i / 720p** / 576p**
24.00Hz: 8K/24p* / C4K/120p** / C4K/24p / 4K/120p** / 4K/24p / 1080/120p / 1080p
*Only for still image playback. **Only for playback.
Audio
Build-in microphone: Stereo
Wind Noise Canceller: OFF / Standard / High
External microphone / External audio device input:
φ3.5mm for external microphone / external audio device
MIC (Plug-in Power) / MIC / LINE
Wind Cut: OFF / Low / Standard / High *When attaching DMW-MS2 (sold separately).
Special Mic: Stereo / Shotgun *When attaching DMW-MS2 (sold separately).
XLR microphone: Yes with DMW-XLR1 (sold separately)
4ch mic input: Yes with DMW-XLR1 (sold separately)
Speaker: Monaural
Headphone output: φ3.5mm
Card slot
Slot 1: CFexpress Card (CFexpress Type B)
Slot 2: SD Memory Card / SDHC Memory Card* / SDXC Memory Card*
*Compatible with UHS-I/UHS-II UHS Speed Class 3 standard SDHC/SDXC Memory Cards and UHS-II Video Speed Class 90 standard SDXC Memory Cards.
TC IN/OUT
TC IN/OUT: Yes with BNC Converter Cable (bundled)
Count up: Rec Run / Free Run
Time code mode: Drop Frame / Non-Drop Frame (When system frequency [59.94Hz] is selected.)
HDMI time code output: ON / OFF
External TC setting: TC Synchronization / TC Output Reference
FAN
Auto1 / Auto2 / Fast / Normal / Slow / OFF* *OFF can be set when in iA/P/A/S/M mode.
LAMP
Tally Lamp (front/rear) / Card Access Light / Power Indicator / Charging Light/Network Connection Light
WIRELESS
Wi-Fi:
2.4GHz (STA/AP) (IEEE802.11b/g/n)
5GHz (STA) (IEEE 802.11a/n/ac)
Security: WPA/WPA2/WPA3
Please refer to ""Wi-Fi"" sheet
Bluetooth: Bluetooth® v5.0 (Bluetooth Low Energy (BLE))
DUST AND SPLASH RESISTANT*
Yes.
*Dust and Splash Resistant does not guarantee that damage will not occur if this camera is subjected to direct contact with dust and water."
Battery: Li-ion Battery Pack (7.2V, 2200mAh, 16Wh) (bundled)
USB power supply, USB power charging, USB power delivery
Battery life (CIPA standard)
When using CFexpress Card:
-Approx. 330 images, 750 images (Power Save LVF mode*) with H-ES12060 / DMW-BLK22
-Approx. 350 images, 800 images (Power Save LVF mode*) with H-FS12060 / DMW-BLK22
*Using a Lexar CFexpress Type B card. Under the test conditions specified by Panasonic based on CIPA standard. When the time to get in the sleep mode is set to 1 sec.
When using SD memory card:
-Approx. 360 images, 850 images (Power Save LVF mode*) with H-ES12060 / DMW-BLK22
-Approx. 380 images, 900 images (Power Save LVF mode*) with H-FS12060 / DMW-BLK22
*Using a Panasonic SDXC memory card. Under the test conditions specified by Panasonic based on CIPA standard. When the time to get in the sleep mode is set to 1 sec.
Continuous recordable time (Motion picture) (*1)
When using CFexpress Card: -MP4 [4K/60p]: Approx. 80 min with H-ES12060 / H-FS12060
-MP4 [FHD/60p]: Approx. 90 min with H-ES12060 / H-FS12060
When using SD memory card:
-MP4 [4K/60p]: Approx. 90 min with H-ES12060 / H-FS12060
-MP4 [FHD/60p]: Approx. 100 min with H-ES12060 / H-FS12060
Actual recordable time (Motion picture) (*1)
When using CFexpress Card:
-MP4 [4K/60p]: Approx. 40 min with H-ES12060 / H-FS12060
-MP4 [FHD/60p]: Approx. 45 min with H-ES12060 / H-FS12060
When using SD memory card:
-MP4 [4K/60p]: Approx. 45 min with H-ES12060 / H-FS12060
-MP4 [FHD/60p]: Approx. 50 min with H-ES12060 / H-FS12060
DIMENSIONS / WEIGHT
Dimensions (W x H x D): Approx. 138.4 x 100.3 x 99.6 mm / 5.45 x 3.95 x 3.92 inch (excluding protrusions)
Weight:
Approx. 823g / 1.81 lb (SD Memory Card x 1, Battery, Body)
Approx. 739g / 1.63 lb (Body only)"
OPERATING ENVIRONMENT
Operating temperature: -10oC to 40oC (14oF to 104oF)
Operating humidity: 10%RH to 80％RH
(*1) About motion picture recording
- The cards that can be used for recording vary depending on the motion pictures bit rate and format type.
Motion pictures with 72Mbps or less: CFexpress card, SD memory card with SD Speed Class with Class 10 or Video Speed Class 10 or higher
Motion pictures with 200Mbps or less: CFexpress card, SD memory card with UHS-I / UHS-II UHS Speed Class 3 (U3) or Video Speed Class 30 or higher
Motion pictures with 400Mbps or less: CFexpress card, SD memory card with Video Speed Class 60 or higher
Motion pictures with 600Mbps or less: CFexpress card, SD memory card with Video Speed Class 90
Motion pictures with 800Mbps or more, variable frame rate with ALL-Intra, or ProRes: CFexpress card
- A new file will be created to continue recording if the continuous recording time exceeds the following conditions.
Motion pictures with less than 72Mbps: 30 minutes
Motion pictures with 72Mbps or more: 3 hours 4 minutes
- A new file will be created to continue recording if the file size exceeds the following conditions.
[MP4] in [FHD]: 4GB
[MP4] in [4K]: 96GB
[MOV] in 600Mbps or less: 192GB
[MOV] in 800Mbps: 640GB
[ProRes] in [5.7K]: 640GB
- If the resolution is higher than C4K, the frame rate is higher than 60p or set to ProRes, the camera may stop the recording to protect itself. Wait until the camera cools down.
(*2) High-res audio is selectable only when attaching Φ3.5mm microphone or DMW-XLR1 (sold separately).
Operating temperature: -10oC to 40oC (14oF to 104oF)
Operating humidity: 10%RH to 80％RH
(*1) About motion picture recording
- The cards that can be used for recording vary depending on the motion pictures bit rate and format type.
Motion pictures with 72Mbps or less: CFexpress card, SD memory card with SD Speed Class with Class 10 or Video Speed Class 10 or higher
Motion pictures with 200Mbps or less: CFexpress card, SD memory card with UHS-I / UHS-II UHS Speed Class 3 (U3) or Video Speed Class 30 or higher
Motion pictures with 400Mbps or less: CFexpress card, SD memory card with Video Speed Class 60 or higher
Motion pictures with 600Mbps or less: CFexpress card, SD memory card with Video Speed Class 90
Motion pictures with 800Mbps or more, variable frame rate with ALL-Intra, or ProRes: CFexpress card
- A new file will be created to continue recording if the continuous recording time exceeds the following conditions.
Motion pictures with less than 72Mbps: 30 minutes
Motion pictures with 72Mbps or more: 3 hours 4 minutes
- A new file will be created to continue recording if the file size exceeds the following conditions.
[MP4] in [FHD]: 4GB
[MP4] in [4K]: 96GB
[MOV] in 600Mbps or less: 192GB
[MOV] in 800Mbps: 640GB
[ProRes] in [5.7K]: 640GB
- If the resolution is higher than C4K, the frame rate is higher than 60p or set to ProRes, the camera may stop the recording to protect itself. Wait until the camera cools down.
(*2) High-res audio is selectable only when attaching Φ3.5mm microphone or DMW-XLR1 (sold separately).
- Panasonic Lumix GH6 Mirrorless Camera
- Panasonic DMW-BLK22 Lithium-Ion Battery (7.2V, 2200mAh)
- Battery Charger with AC-USB Adapter
- BNC Conversion Cable for TC In/Out
- USB Type-A to USB Type-C
- Cable Holder
- Embroidered GH6 Shoulder Strap
- Body Cap
