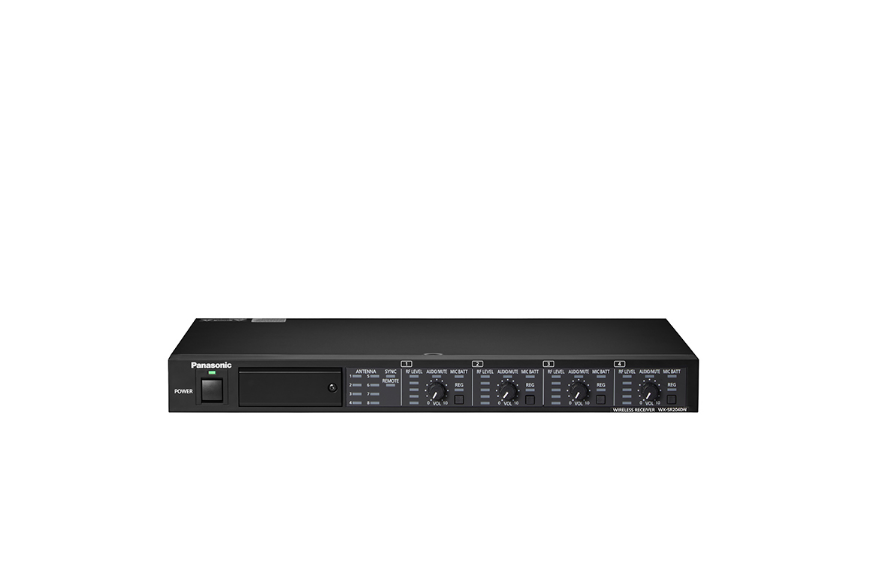

Panasonic WX-SR204DN 4-Channel Dante Digital Wireless Mic Receiver

SKU: WXSR204DN
Panasonic WX-SR204DN 4-Channel Dante Digital Wireless Mic Receiver
Back
The core of Panasonic's SR200P 1.9 GHz Digital Wireless Microphone system, the WX-SR204DN digital wireless receiver supports four wireless microphone channels (choose between Panasonic’s WX-ST200 handheld mics and/or WX-ST400 lavalier mic + wireless bodypacks).  Perfect for classrooms, conference rooms, auditoriums, museums, retail, and bars / restaurants, the WX-SR204DN features RJ45 (CAT5 / CAT5e / CAT6) connections for 2 Dante® connections (primary and secondary), for up to eight (8) external antennas (WX-SA250), an RJ45 connection for an optional expansion receiver, and an ethernet network connection for easy integration with third party control systems such as Crestron, Extron, Q-SYS, and others. The WX-SR204DN is also Dante Domain Manager Ready.  LEDs on the front panel show the system status during startup & microphone pairing, antenna status during operation, and an LED indicator of when the receiver is being controlled remotely. Secure Euroblock connectors for an external audio input and a mix output also included. Ships with rack ears for easy rack mount installation.

KEY FEATURES
  • Four channel DECT digital wireless receiver
  • Dante® digital audio connections (2 x RJ45, 1 primary & 1 secondary) with AES67 mode. Dante Domain Manager Ready!
  • Easy to setup – no need for planning / allocation of channels; Secure pairing with Panasonic microphones
  • Supports nearly any room size; up to 8 antennas can be connected
  • Connection for optional expansion receiver (WX-SE200 or WX-SE200DN)
Back
Channel Output Circuits
  • 4
Channel Output Connectors
  • Dante (RJ45), Euroblock (for mix output only)
Channel Output Characteristics
  • Dante Primary & Secondary: CH1/Ch2/Ch3/Ch4/MIX
  • Euroblock connector: MIX only @ -10dBV balanced 600 Ohms
Channel Output Signal to Noise Ratio
  • 70 dB or greater
Channel Output Frequency Response
  • 50 Hz to 15 kHz
Channel Output Distortion
  • less than 3%
Dimensions (W x H x D)
  • 16-17/32 x 1-47/64 x 9-27/32 inches (420mm x 44mm x 250mm)
Power
  •  AC 120 V 60 Hz
Warranty-Parts/Labor
  • 3 Years
Power consumption
  • 39 Watts
Weight:
  • 6.39 lbs. (2.9 kg)
Display
  • LED Indicators for Power, Antenna 1-8, Sync, Main, Remote, RF Level (5-level display), Audio level / mute, Mic battery, Register
Audio Inputs
  • 1.9 GHz DECT (wireless mics) and Euroblock
Operating Ambient Temperature
  • 32° F to 113°F (0°C to 45°C)
Audio Input Characteristics
  • -10 dBV balanced 600 Ohms
Audio Input Frequency Response
  • 50 Hz to 15 kHz
Audio Input Distortion
  • less than 3%
Mix Output Connectors
  • Dante Primary & Secondary or Euroblock
Mix Output Characteristics
  • Dante Primary & Secondary or Euroblock -10 dBV Balanced 600 Ohms
Mix Output Signal to Noise Ratio
  •  64 dB or greater
Mix Output Frequency Response
  • 50 Hz to 15 kHz
Mix Output Distortion
  • less than 3%
Antenna Connectors
  • 8 x RJ45 (compatible cables: CAT5 / CAT5e / CAT6 straight)
  • Wiring distance up to 656 feet (200 m)
Antenna Field Selection
  •  4 Selectable Range settings (selectable via dip switches on front panel or using Panasonic's Operations Support software)
Extension Connector
  •  1 x RJ45, for WX-SE200or WX-SE200DN Extension Receivers (sold separately)
Back
Accessories (included)
  • Rack Ears
