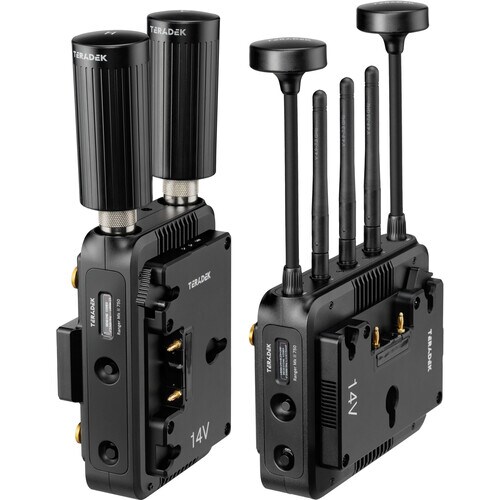

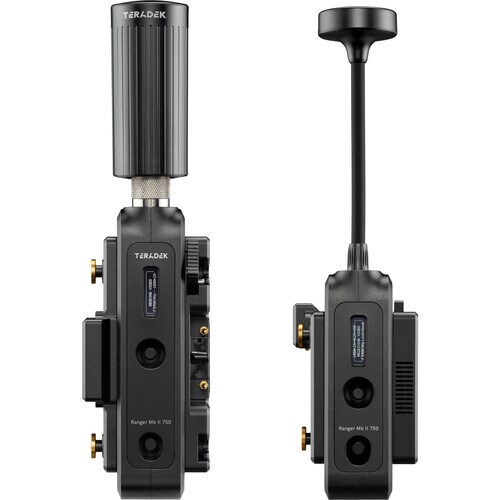

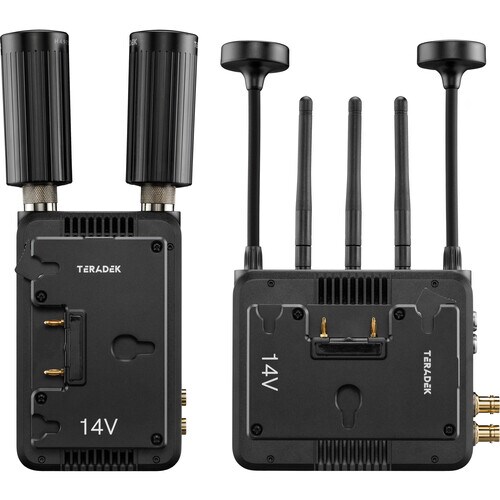

Ranger Mk II 750 12G-SDI/HDMI - Wireless TX/RX Set Gold-Mount

(0)No Reviews yet
SKU: TER102580G


Experience uncompromising wireless performance with Ranger, the
only solution with true zero-delay (<1ms) transmission, visually
lossless image quality, and wide spectrum operation over licensed
and unlicensed bands. And now with support for 6GHz (U-NII-5),
Ranger offers 12 additional RF channels free of interference.

  • ZERO-DELAY
    Go from TX to RX in .001 seconds –
    perfect for IMAG and live event
    production.

  • VISUALLY LOSSLESS 4K HDR
    Transmit video in exceptional detail –
    superior to HEVC and H.264 solutions.

  • AES-256 ENCRYPTION
    Keep your video transmission
    confidential and secure.

  • GRANULAR FREQUENCY CONTROL
    Make adjustments to the frequency of
    your signal in 5 MHz increments.

  • LICENSED & UNLICENSED
    FREQUENCIES
    Operate from 4.9 GHz to 6.4 GHz on
    licensed and unlicensed bands.

  • INTERCOMPATIBLE
    Pair any previous and current Ranger systems together.


State-of-the-art hardware. Designed for professional video production. The Ranger Series is
powered by our Emmy® & Academy Award-winning technology for zero-delay wireless video
transmission. It boasts a maximum range of 5,000 feet (1,524 meters). And it works seamlessly
within a variety of professional broadcast, sports, and ENG applications, including hand-held
gimbals, drones, and shoulder-mounted production cameras.

  • Video I/O
    1x HDMI 2.0 Output
    1x BNC (12G-SDI) Output
  • Embedded Audio
    HDMI: 2-Channel
    SDI: 2-Channel
  • Latency
    < 0.01 ms
  • Video Format
    HDMI (8/10-Bit 4:4:4/4:2:2 RGB, YCC)
    UHD 4K: 60/59.94/50/30/29.97/25/24/23.98
    1080p: 60/59.94/50/30/29.97/25/24/23.98
    1080PsF: 30/29.97/25/24/23.98
    1080i: 60/59.94/50
    720p: 60/59.94/50
    576p: 50
    480p: 60/59.94
    576i: 60
    480i: 59.94
    SDI (10-Bit 4:2:2 YCC)
    UHD 4K: 60/59.94/50/30/29.97/25/24/23.98
    1080p: 60/59.94/50/30/29.97/25/24/23.98
    1080i: 60/59.94/50
    720p: 60/59.94/50
    576p: 50
    576i: 50
    480p: 60/59.94
    480i: 59.94

    Battery Type
    1x Gold Mount
  • Power Consumption
    18 W
  • Mounting
    1x 1/4"-20 Female
    1x 3/8"-16 Female
    Inputs / Outputs

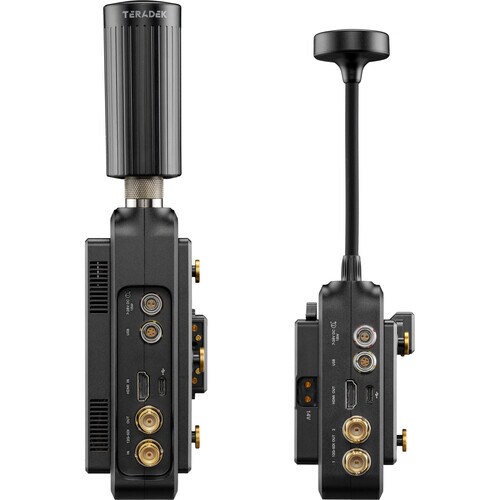

  • Antenna I/O
    5x RP-SMA Female
  • Video I/O
    1x HDMI 2.0 Output
    1x BNC (12G-SDI) Output
  • Embedded Audio
    HDMI: 2-Channel
    SDI: 2-Channel
  • Audio I/O
    No
  • Power I/O
    1x LEMO 2-Pin (28 VDC) Input
  • Other I/O
    1x USB-C (Firmware) Input
  • Encryption
    256-Bit AES
  • Wireless:
  • Wireless Range
    750' / 228.6 m (Line-of-Sight)
  • Channel Bandwidth
    40 MHz, 20 MHz
  • Frequency Range
    US: 5.92 to 6.42 GHz
    US: 4.85 to 5.15 GHz
    US: 5.35 to 5.47 GHz
    US: 5.85 to 5.92 GHz
    Non-DFS Frequencies
    US: 5.15 to 5.25 GHz
    US: 5.72 to 5.85 GHz
    DFS Frequencies
    US: 5.25 to 5.35 GHz
    US: 5.47 to 5.72 GHz
  • Latency
    < 0.01 ms
  • RF Power
    21 dBm
  • Wi-Fi
    No
  • Bluetooth
    5.0 LE
  • Mobile App Compatible
    Yes: Android & iOS
    Functionality: Adjust Settings, Remote Control, Setup, View Live Feed
  • Cellular Support
    No
  • Format Support
  • Video Format
    HDMI (8/10-Bit 4:4:4/4:2:2 RGB, YCC)
    UHD 4K: 60/59.94/50/30/29.97/25/24/23.98
    1080p: 60/59.94/50/30/29.97/25/24/23.98
    1080PsF: 30/29.97/25/24/23.98
    1080i: 60/59.94/50
    720p: 60/59.94/50
    576p: 50
    480p: 60/59.94
    576i: 60
    480i: 59.94
    SDI (10-Bit 4:2:2 YCC)
    UHD 4K: 60/59.94/50/30/29.97/25/24/23.98
    1080p: 60/59.94/50/30/29.97/25/24/23.98
    1080i: 60/59.94/50
    720p: 60/59.94/50
    576p: 50
    576i: 50
    480p: 60/59.94
    480i: 59.94
  • Video Standard Compliance
    SMPTE ST-2081-1
  • Audio Format
    2-Channel 24-Bit 48 kHz
  • Wireless Video Compression
    Uncompressed
  • Timecode Support
    Yes
    Power
  • DC Input Power
    6 to 28 VDC
    Battery Type
  • 1x Gold Mount
    Power Consumption
  • 18 W
  • Mounting
  • Mounting
    1x 1/4"-20 Female
    1x 3/8"-16 Female
  • Environmental
  • Operating Temperature
    32 to 72°F / 0 to 40°C
    General
  • Material of Construction
    Aluminum, Polycarbonate
  • Dimensions
    5.5 x 5.2 x 1.2" / 140 x 133 x 30 mm
  • Weight
    23.2 oz / 658 g

Ranger Mk II 750 12G-SDI/HDMI - Wireless TX/RX Set Gold-Mount

2 x N-Type Antenna

Gold Mount Battery Plate

Limited 1-Year Manufacturer Warranty
