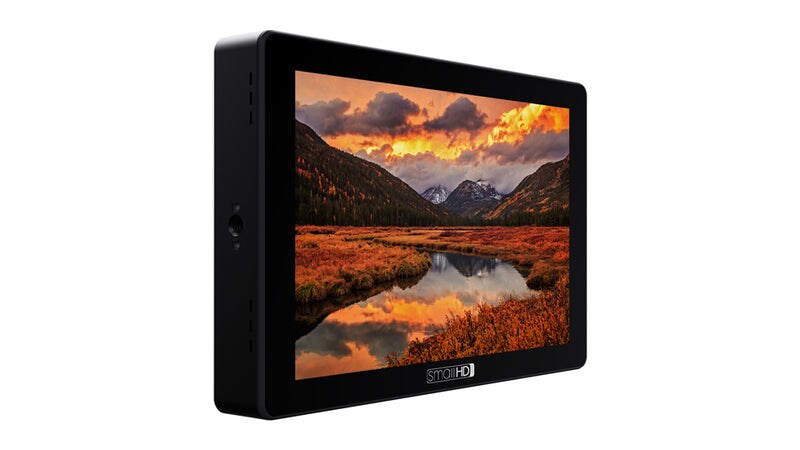

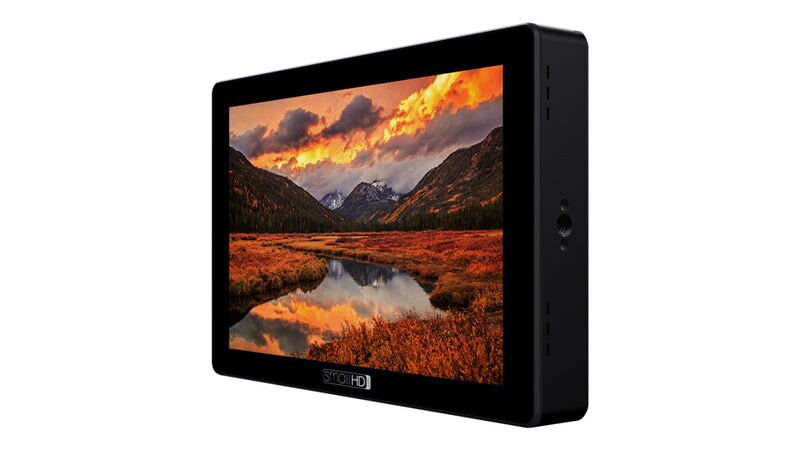

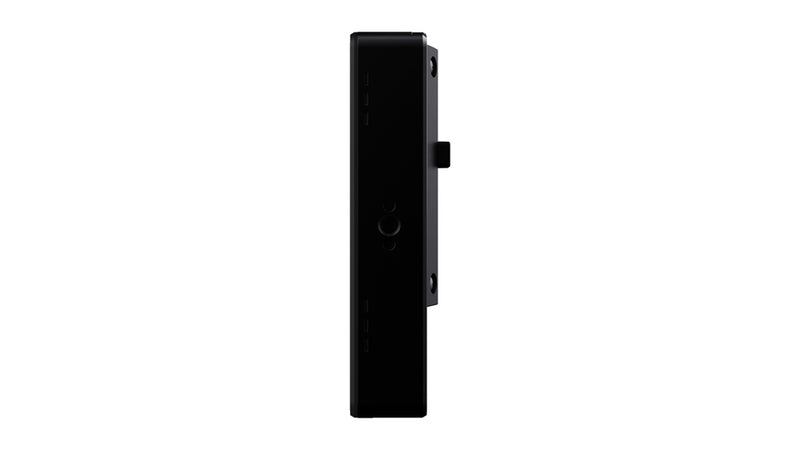

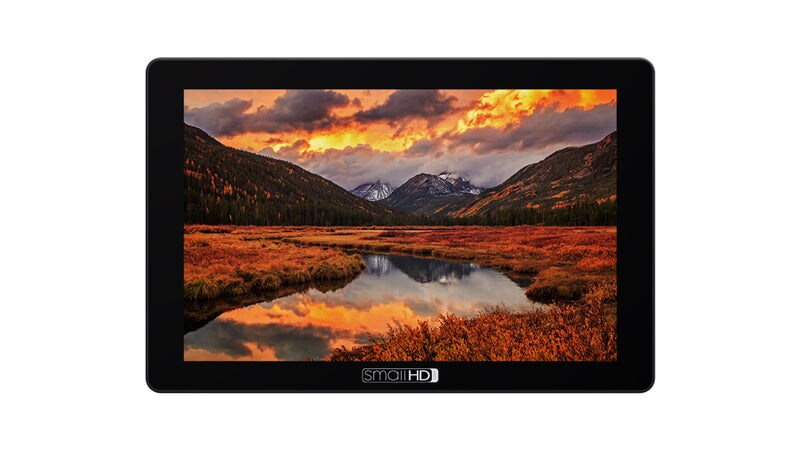

SmallHD Cine 7 ARRI Kit
Full HD 7-inch Touchscreen Monitor with DCI-P3 Color and 1800 nits brightness
Everything you need for Camera Control for ARRI and over $900 in bundled savings!
Features:
The New Industry Standard 7”
Cine 7 is the ultimate 7” on-camera monitor for cinematographers, offering a color accurate wide-gamut display, cinema camera control, and integrated Teradek RT and Bolt functionality.
Camera Control for ARRI
Compatible with ARRI ALEXA Mini, ALEXA Mini LF and AMIRA cameras.
Everything you need for Camera Control for ARRI and over $900 in bundled savings!
Features:
- Display: 7-inch, 1920X1200
- Brightness: 1800 nits
- HDMI: 1x HDMI In, 1x HDMI Out
- SDI: 1x 3G SDI In, 1x 3G SDI In/Out
- Audio: ⅛” Headphone Jack
- Power: 2-pin Locking Power Input (10V-34V, 2A DC), Sony Battery Bracket
- Camera Control: ARRI
The New Industry Standard 7”
Cine 7 is the ultimate 7” on-camera monitor for cinematographers, offering a color accurate wide-gamut display, cinema camera control, and integrated Teradek RT and Bolt functionality.
Camera Control for ARRI
Compatible with ARRI ALEXA Mini, ALEXA Mini LF and AMIRA cameras.
Environmental
Display
Input Signal
Output Signal
Connector Type
Controls
Power
Software
- Item Weight (oz): 20
- Package Weight (oz): 32
- Height (in): 4.67
- Width (in): 1.32
- Length/Depth (in): 7.09
- Compliance: FCC, IC, CE, RoHS
- Operating Temperature: 30F to 100F
- Storage Temperature: 0F to 120F
- Mount Points: Four ¼-20 Mount Points (Left, Right, Bottom, and Back)
- Construction: Anodized aluminum chassis
Display
- Panel Type: IPS LCD
- Diagonal Size: 7.02
- Resolution: 1920x1200
- Pixel Density: 322 ppi
- Aspect Ratio: 0.6736111111111112
- Active Area: 5.95 x 3.72
- Brightness: 1800 NITs
- Contrast: 1000:1
- Gamut: 100% DCI-P3 Coverage
- Color Depth: 10-bit Processing (8-bit panel)
- Viewing Angle: 160
- Backlight Type: LED
- Adjustable Backlight: Yes
- Brightness: 1800 NITs
- DCI-P3 Color: 100% DCI-P3 Coverage
Input Signal
- 3G-SDI Input Types: YCC 4:2:2 @ 10-bits: 1080p60, 1080p59.94, 1080p50, 1080i120, 1080i119.88, 1080i100
- HD-SDI Input Types: YCC 4:2:2 @ 10-bits: 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psf30, 1080psf29.97, 1080psf25, 1080psf24, 1080psf23.98, 1080i60, 1080i59.94, 1080i50, 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98
- SD-SDI Input Types: YCC 4:2:2 @ 10-bits: 480i59.94, 576i50
- HDMI Input Types: YCC 4:2:2 @ 12 bits, 8/10/12/16 bit color in RGB & YCC 4:4:4: 1080p60, 1080p59.94, 1080p50, 1080p30, 1080p29.97 1080p25, 1080p24, 1080p23.98, 720p120, 720p119.88, 720p100, 720p60, 720p59.94 , 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98, 480p240, 480p239.76, 480p120, 480p119.88, 480p60, 480p59.94, 576p200, 576p100, 576p50, 480i240, 480i239.76, 480i120, 480i119.88, 480i60, 480i59.94, 576i200, 576i100, 576i50
- Audio Input Types: HDMI & SDI - Monitor through Speakers in Front Bezel or Through Headphone Jack - Metering up to 8 channels
Output Signal
- 3G-SDI Output Types: YCC 4:2:2 @ 10-bits: 1080p60, 1080p59.94, 1080p50, 1080i120, 1080i119.88, 1080i100
- HD-SDI Output Types: YCC 4:2:2 @ 10-bits: 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psf30, 1080psf29.97, 1080psf25, 1080psf24, 1080psf23.98, 1080i60, 1080i59.94, 1080i50, 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98
- SD-SDI Output Types: YCC 4:2:2 @ 10-bits: 480i59.94, 576i50
- HDMI Output Types: YCC 4:2:2 @ 12 bits, 8 bit color in RGB & YCC 4:4:4: 2160p30, 2160p29.97, 2160p25, 2160p24, 2160p23.98, 1080p120, 1080p119.88, 1080p100, 1080i120, 1080i119.88, 1080i100, 1080i60, 1080i59.94, 1080i50, 720p240, 720p239.76, 720p200
- Audio Output Types: HDMI & SDI - Incoming Audio Stream is sent downstream via HDMI or SDI connection
Connector Type
- SDI: 1x BNC 3G input and 1x BNC 3G selectable input/output
- HDMI: 1 input and 1 output: HDMI Type-D Receptacles (full size)
- Audio: 1x 3.5mm 3-pin Stereo Headphone Jack
- Power In: 2-pin Locking
- USB: 1x USB 2.0 Micro-B receptacle
Controls
- Primary: Touch Screen
- Record Capture: Image Capture Tool
Power
- Connector: LEMO
- Voltage: DC in - 10V minimum to 34V maximum, Battery terminals - 6.0V minimum to 16.8V max
- Power Supply: Recommend DC 12~15V at ~2.5 amp or greater

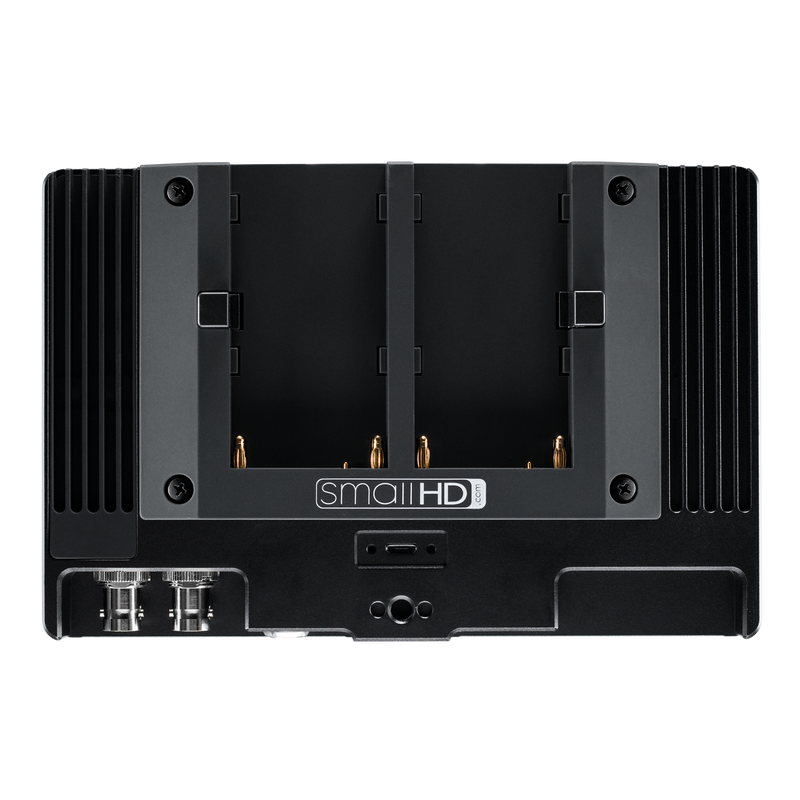

- Battery Types: L-Series (included), V Mount, Gold Mount
- Overload Protection: DC input: Reverse polarity
- Battery Chemistry: Li-ion
- Battery Charging Time: Monitor does not support the charging of batteries
- Power Plug-in: LEMO
Software
- Pixel Zoom: 1.1-2.0x & 2.0-8.0x via swipe up/down. Infinitely adjustable via pinch & zoom
- Frame Guides: Preset Aspect Ratios & Customizable
- DSLR Scale: Canon 5DMkii & Canon 7D
- Custom Scale: Yes (Underscan Only)
- Anamorphic De-Squeeze: 0.75x, 1.33x, 1.5x, 1.66x, 2.0x, 2.5x
- Image Rotate: Automatic or Manual Control
- Image Flip: Automatic or Manual Control
- Cross Conversion: Yes: HDMI → SDI & SDI → HDMI
- Focus Assist: User Adjustable Color Style and Intensity
- Peaking: User Adjustable Intensity
- False Color: Rainbow, Arri Style, Custom with up to 10 nodes
- Zebra: Dual - User Configurable
- Waveform: Luma & RGB Style, Fully User Customizable w/ Region of Interest Highlighting
- Vectorscope: Yes
- RGB Parade: Fully User Customizable
- Histogram: Luma & RGB Style
- Image Capture: Yes
- Custom LUTS: Loadable as Looks on Pages or as Systemwide Color Calibration via the settings menu
- LUT Downstream: Available on SDI or HDMI Out. Applied on Output Preview Page.
- LUT Import: via SD Card or USB Storage Device
- Overlay: With Opacity Slider and Blink Setting
- Audio Meters: HDMI & SDI up to 8 channel

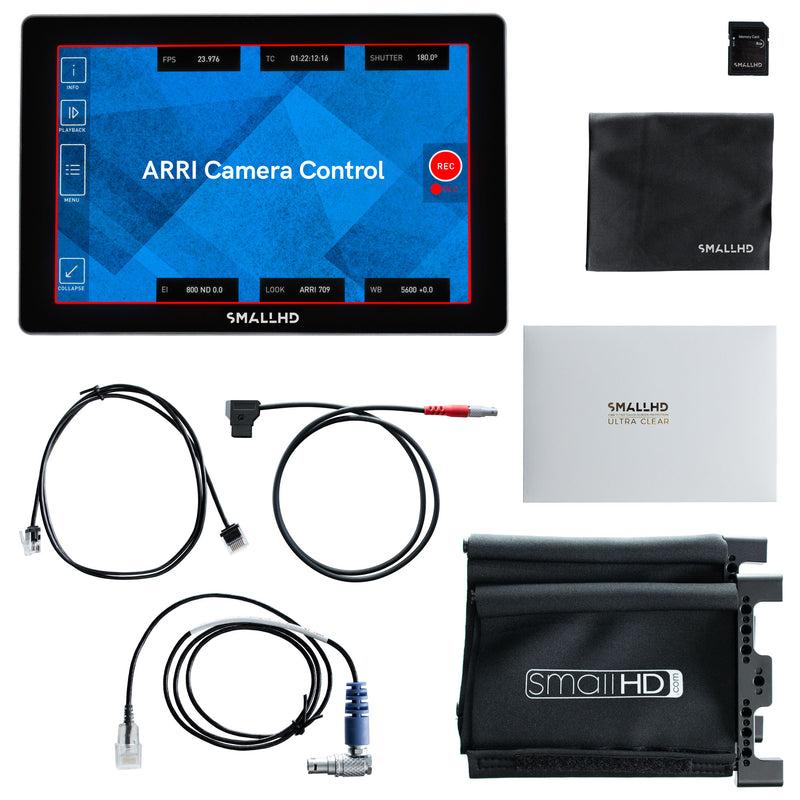

- SmallHD Cine 7 Touchscreen On-Camera Monitor with ARRI Control Kit (L-Series)
- SmallHD 2-Pin LEMO to D-Tap Power Cable (36")
- SmallHD Dual L-Series Battery Plate for 702 Touch & Cine 7 Monitors
- SmallHD Sun Hood for 702 Touch and Cine 7 Monitors
- SmallHD Cine 7 Monitor Camera Control Kit for ARRI ALEXA Mini/Mini LF/AMIRA Cameras
- UltraClear Screen Protector
- 8GB SD Card
- SmallHD Microfiber Cleaning Cloth
