SmallHD Cine 7 Professional & Expandable On-Camera Monitor

(0)No Reviews yet
SKU: MONCINE7

SmallHD Cine 7 Professional & Expandable On-Camera Monitor


Back

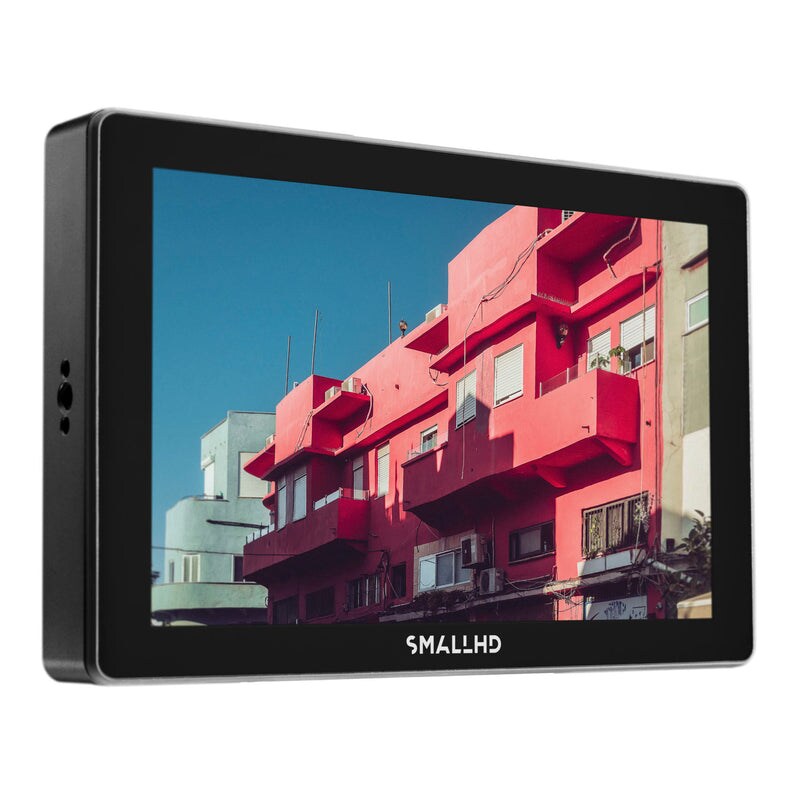

Cine 7 is the ultimate 7” on-camera HD monitor for cinematographers, offering a color accurate wide-gamut display, cinema camera control, and 4K and HDR compatibility. View your production in full sunlight thanks to 1800 nits of brightness and save your favorite tools, functions, and setting pages in one tap with PageOS 4.

Features

  • Display: 7-inch, 1920X1200
  • Brightness: 1800 nits
  • HDMI: 1x HDMI In, 1x HDMI Out
  • SDI: 1x 3G SDI In, 1x 3G SDI In/Out
  • Audio: ⅛” Headphone Jack
  • Power: 2-pin Locking Power Input (10V-34V, 2A DC), Sony
  • Battery Bracket

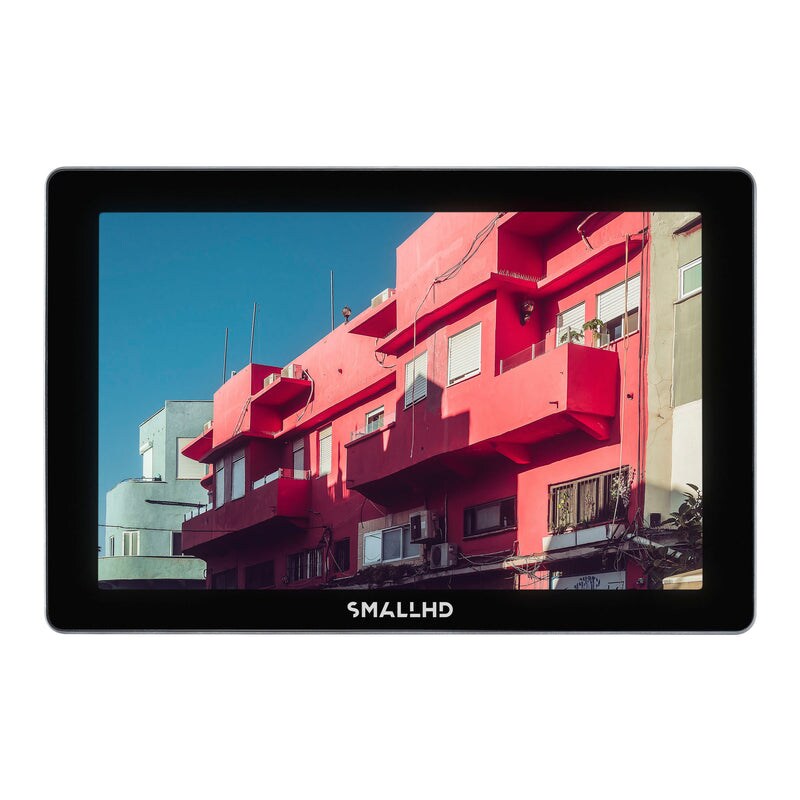

The Full HD 7-inch IPS LCD display with 1920x1200 resolution ensures a clear look at your production, while 10-bit color processing in 100% DCI-P3 offers color accuracy. This guarantees the image on screen reflects what’s being captured by the camera. No matter the time of day, environment, or sunlight, you’ll get a clear, glare-free view of your monitor thanks to 1800 nits of brightness.

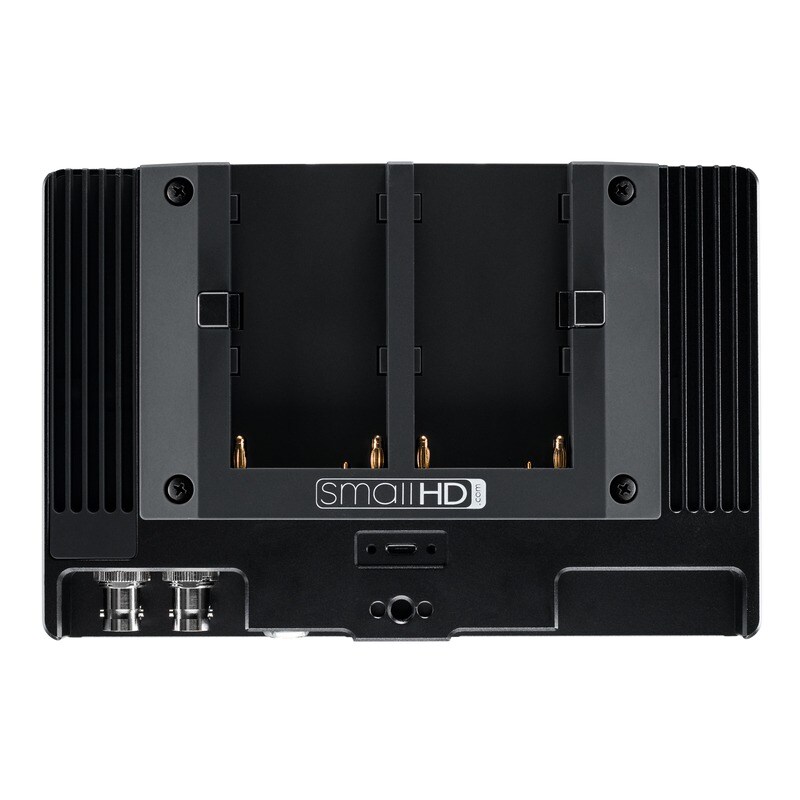

The Cine 7 features two 3G SDI inputs, with the second input doubling as a loop out, an HDMI input with an HDMI loop through, a Sony L-Series dual battery bracket, and the option to add on a Gold Mount or V-Mount battery plate attachment.

Meet Our Smart PageOS Software
With the power of SmallHD PageOS software, build customized Page Profiles, and utilize all of the dependable SmallHD features such as personalized frame guides, Focus & Exposure Assist, high-resolution 3D LUT overlays, histogram, vectorscope, waveform, and more.

Cine 7 Compatibility
The Cine 7 monitor is compatible with the Bolt RX Monitor Module. Improve your handheld monitoring workflow with this optional hardware addition to your Cine 7 monitor. Receive cable-free 4K and HDR wireless video from any Bolt 4K series transmitter at a distance of up to 750ft (228m).

Upgrade to Camera Control for RED® DSMC2® & KOMODO™* , ARRI, and Sony VENICE
Transform your touchscreen into the central command hub of your camera. SmallHD’s proprietary software enables unfettered access to RED® DSMC2®, RED® KOMODO™, ARRI, and Sony VENICE camera functions and project settings such as Start/Stop Record, FPS, Shutter Speed, ISO, Color Temperature/White Balance, Clip Playback, and more. *Individual Camera Control software licenses are sold separately.

Back

Environmental

Item Weight (oz)

  • 20

Package Weight (oz)

  • 32

Height (in)

  • 4.67

Width (in)

  • 1.32

Length/Depth (in)

  • 7.09

Compliance

  • FCC, IC, CE, RoHS

Operating Temperature

  • 30F to 100F

Storage Temperature

  • 0F to 120F

Mount Points

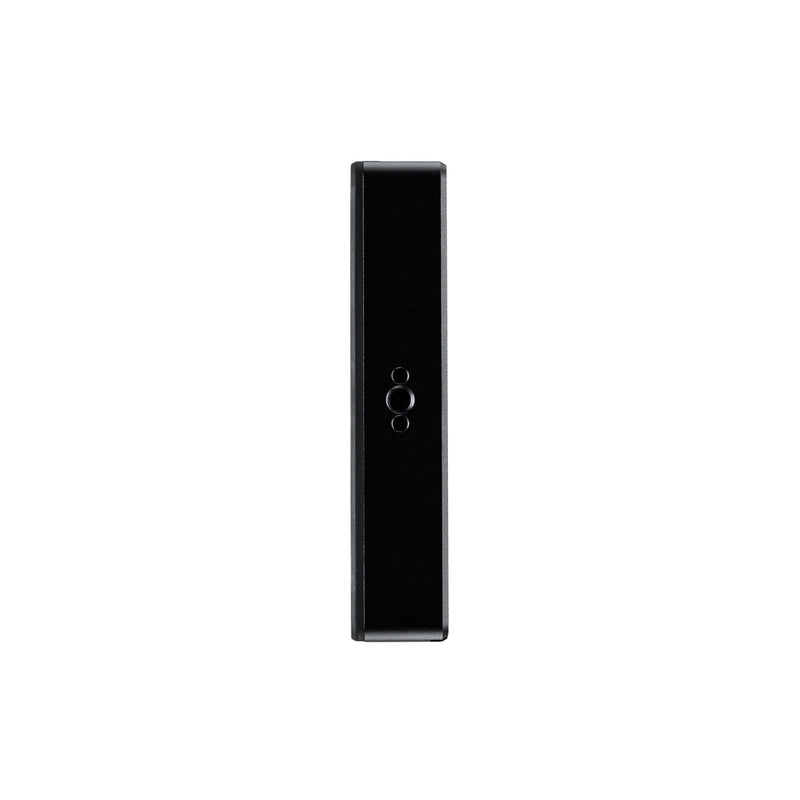

  • Four ¼-20 Mount Points (Left, Right, Bottom, and Back)

Construction

  • Anodized aluminum chassis

Display

Panel Type

  • IPS LCD

Diagonal Size

  • 7.02

Resolution

  • 1920x1200

Pixel Density

  • 322 ppi

Aspect Ratio

  • 16:9

Active Area

  • 5.95 x 3.72

Max Brightness

  • 1800 NITs

Contrast

  • 1000:1

Color Depth

  • 10-bit Processing (8-bit panel)

Viewing Angle

  • 160

Backlight Type

  • LED

Adjustable Backlight

  • Yes

Input Signal

3G-SDI Input Types

  • YCC 4:2:2 @ 10-bits: 1080p60, 1080p59.94, 1080p50, 1080i120, 1080i119.88, 1080i100

HD-SDI Input Types

  • YCC 4:2:2 @ 10-bits: 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psf30, 1080psf29.97, 1080psf25, 1080psf24, 1080psf23.98, 1080i60, 1080i59.94, 1080i50, 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98

SD-SDI Input Types

  • YCC 4:2:2 @ 10-bits: 480i59.94, 576i50

HDMI Input Types

  • YCC 4:2:2 @ 12 bits, 8 bit color in RGB & YCC 4:4:4: 2160p30, 2160p29.97, 2160p25, 2160p24, 2160p23.98, 1080p120, 1080p119.88, 1080p100, 1080i120, 1080i119.88, 1080i100, 1080i60, 1080i59.94, 1080i50, 720p240, 720p239.76, 720p200 YCC 4:2:2 @ 12 bits, 8/10/12/16 bit color in RGB & YCC 4:4:4 1080p60, 1080p59.94, 1080p50, 1080p30, 1080p29.97 1080p25, 1080p24, 1080p23.98, 720p120, 720p119.88, 720p100, 720p60, 720p59.94 , 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98, 480p240, 480p239.76, 480p120, 480p119.88, 480p60, 480p59.94, 576p200, 576p100, 576p50, 480i240, 480i239.76, 480i120, 480i119.88, 480i60, 480i59.94, 576i200, 576i100, 576i50

Audio Input Types

  • HDMI & SDI - Monitor through Speakers in Front Bezel or Through Headphone Jack - Metering up to 8 channels

Output Signal

3G-SDI Output Types

  • YCC 4:2:2 @ 10-bits: 1080p60, 1080p59.94, 1080p50, 1080i120, 1080i119.88, 1080i100

HD-SDI Output Types

  • YCC 4:2:2 @ 10-bits: 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psf30, 1080psf29.97, 1080psf25, 1080psf24, 1080psf23.98, 1080i60, 1080i59.94, 1080i50, 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98

SD-SDI Output Types

  • YCC 4:2:2 @ 10-bits: 480i59.94, 576i50

HDMI Output Types

  • YCC 4:2:2 @ 12 bits, 8 bit color in RGB & YCC 4:4:4: 2160p30, 2160p29.97, 2160p25, 2160p24, 2160p23.98, 1080p120, 1080p119.88, 1080p100, 1080i120, 1080i119.88, 1080i100, 1080i60, 1080i59.94, 1080i50, 720p240, 720p239.76, 720p200 YCC 4:2:2 @ 12 bits, 8/10/12/16 bit color in RGB & YCC 4:4:4: 1080p60, 1080p59.94, 1080p50, 1080p30, 1080p29.97 1080p25, 1080p24, 1080p23.98, 720p120, 720p119.88, 720p100, 720p60, 720p59.94 , 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98, 480p240, 480p239.76, 480p120, 480p119.88, 480p60, 480p59.94, 576p200, 576p100, 576p50, 480i240, 480i239.76, 480i120, 480i119.88, 480i60, 480i59.94, 576i200, 576i100, 576i50

Audio Output Types

  • HDMI & SDI - Incoming Audio Stream is sent downstream via HDMI or SDI connection

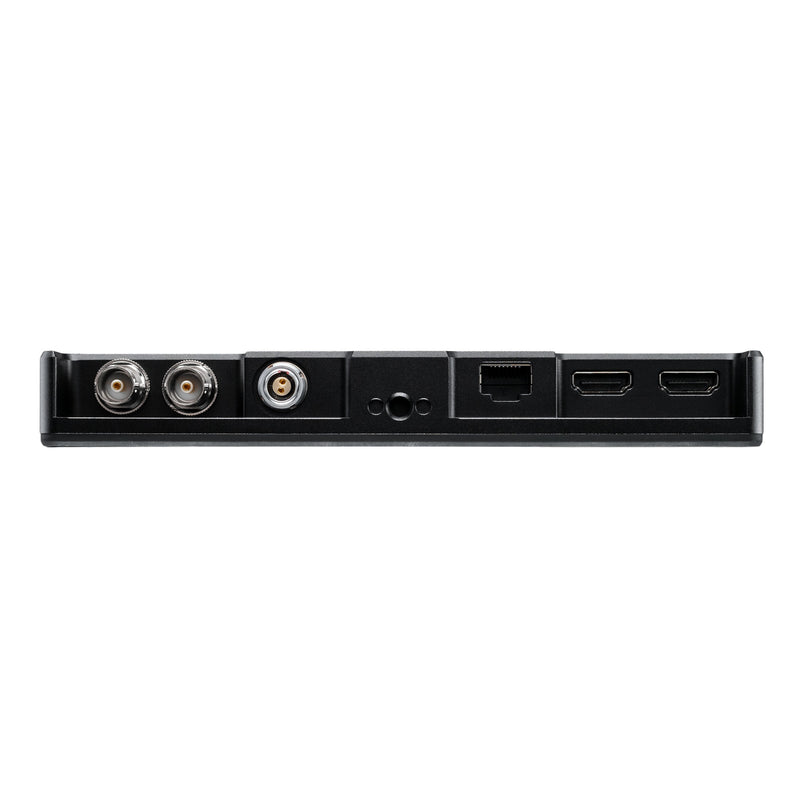

Connector Type

SDI

  • 1x BNC 3G input and 1x BNC 3G selectable input/output

HDMI

  • 1 input and 1 output: HDMI Type-A Receptacles (full size)

Audio

  • 1x 3.5mm 3-pin Stereo Headphone Jack

Power In

  • 2-pin Locking

USB

  • 1x USB 2.0 Micro-B receptacle

Controls

Primary

  • Touch Screen

Record Capture

  • Image Capture Tool

Power

Connector

  • LEMO

Voltage

  • DC in - 10V minimum to 34V maximum, Battery terminals - 6.0V minimum to 16.8V max

Power Supply

  • Recommend DC 12~15V at ~2.5 amp or greater

Battery Types

  • L-Series, V Mount, Gold Mount

Overload Protection

  • DC input: Reverse polarity

Battery Chemistry

  • Li-ion

Battery Charging Time

  • Monitor does not support the charging of batteries

Software

Pixel Zoom

  • 1.1-2.0x & 2.0-8.0x via swipe up/down. Infinitely adjustable via pinch & zoom

Frame Guides

  • Preset Aspect Ratios & Customizable

DSLR Scale

  • Canon 5DMkii & Canon 7D

Custom Scale

  • Yes (Underscan Only)

Anamorphic De-Squeeze

  • 0.75x, 1.33x, 1.5x, 1.66x, 2.0x, 2.5x

Image Rotate

  • Automatic or Manual Control

Image Flip

  • Automatic or Manual Control

Cross Conversion

  • Yes: HDMI → SDI & SDI → HDMI

Focus Assist

  • User Adjustable Color Style and Intensity

Peaking

  • User Adjustable Intensity

False Color

  • Rainbow, Arri Style, Custom with up to 10 nodes

Zebra

  • Dual - User Configurable

Waveform

  • Luma & RGB Style, Fully User Customizable w/ Region of Interest Highlighting

Vectorscope

  • Yes

RGB Parade

  • Fully User Customizable

Histogram

  • Luma & RGB Style

Image Capture

  • Yes

Custom LUTS

  • Loadable as Looks on Pages or as Systemwide Color Calibration via the settings menu

LUT Downstream

  • Available on SDI or HDMI Out. Applied on Output Preview Page.

LUT Import

  • via SD Card or USB Storage Device

Overlay

  • With Opacity Slider and Blink Setting

Audio Meters

  • HDMI & SDI up to 8 channel
