SmallHD Ultra 5

SKU: 16-0527

SmallHD Ultra 5

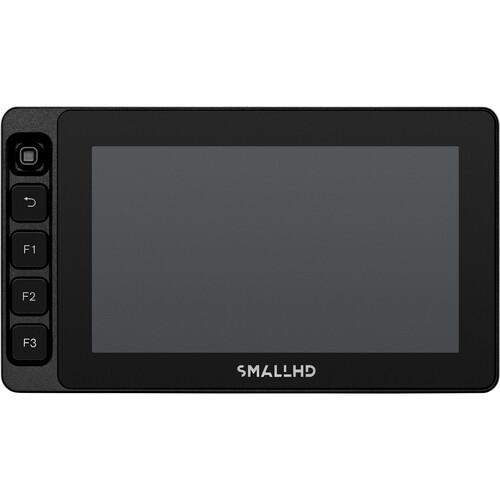

Daylight-viewable, 5-inch monitor with custom-function buttons designed for high-end production use.

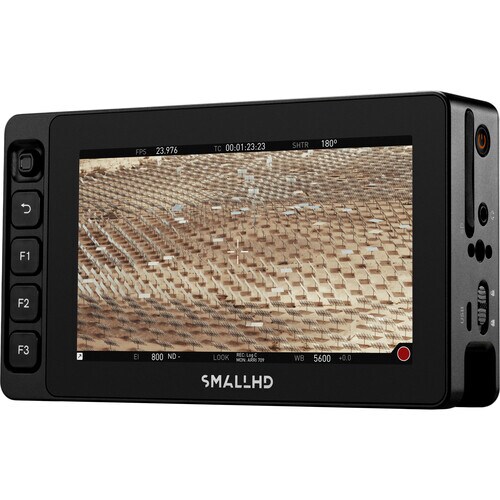

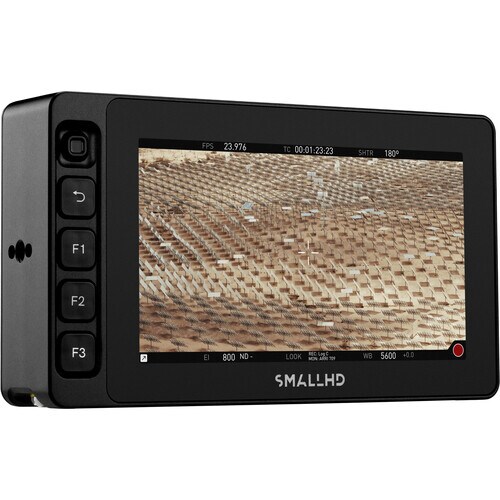

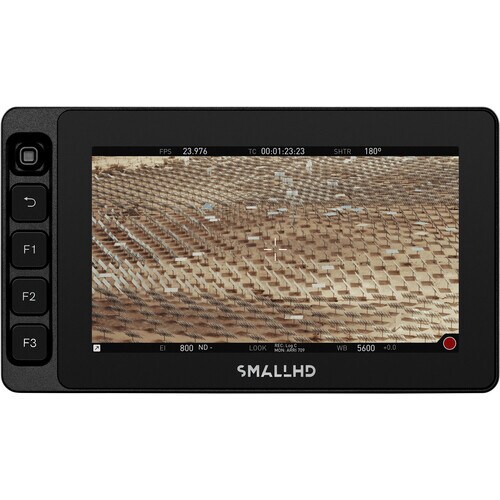

Powerful, portable, and adaptable, the Ultra 5 offers a dazzling 3000nits brightness and a full suite of large front-facing custom-function buttons for maximum control in all conditions. Experience all your favorite PageOS 5 tools, functions, and settings pages on a fully-loaded 5-inch touchscreen monitor.

Ultra 5 is designed for the user who wants it all, including optional Gold or V-Mount Micro Battery Plates for a compact power solution and an Ethernet port to enable ARRI and Sony VENICE Camera Control (Camera Control license and cable sold separately).

Camera Control for ARRI, RED®, and Sony VENICE

Transform your touchscreen into the central command hub of your camera. SmallHD’s proprietary software enables unfettered access to ARRI, RED DSMC2, KOMODO®, V-RAPTOR™, and Sony VENICE camera functions and project settings such as Start/Stop Record, FPS, Shutter Speed, ISO, Color Temperature/White Balance, Clip Playback, and more. *Individual Camera Control software licenses are sold separately.

Environmental

  • Mount Points: 6x 1/4-20 Mounting Points

Display

  • Panel Type: Touch-Screen
  • Resolution: 1920 x 1080
  • Aspect Ratio: 16:9
  • Brightness: 3000nits
  • Backlight Type: Edgelit

Input Signal

  • 3G-SDI Input Types: 1x 3G-SDI

Output Signal

  • HDMI Output Types: 1x HDMI 2.0 (4Kp30)

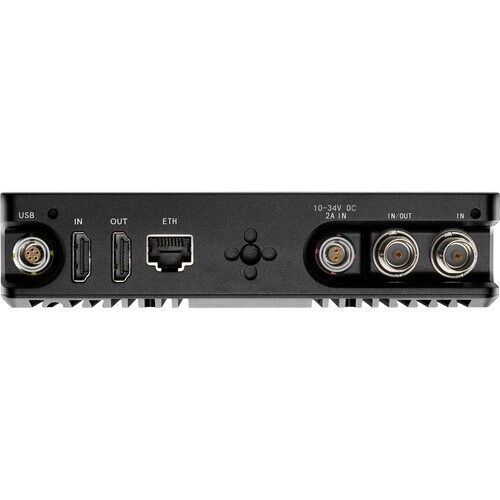

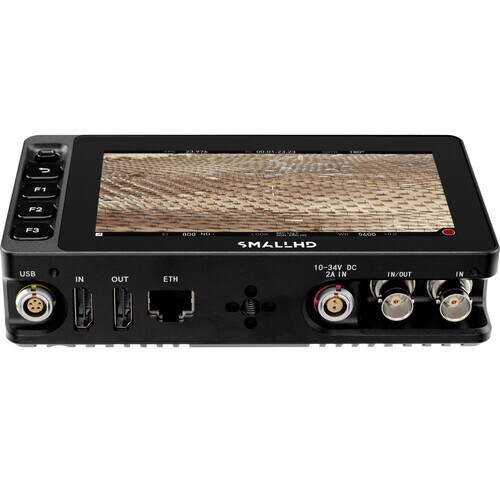

Connector Type

  • SDI: 1x 3G-SDI (In), 1x 3G-SDI (In/Out)
  • HDMI: 1x HDMI 2.0 (4Kp30) [In], 1x HDMI 2.0 (4Kp30) [Out]

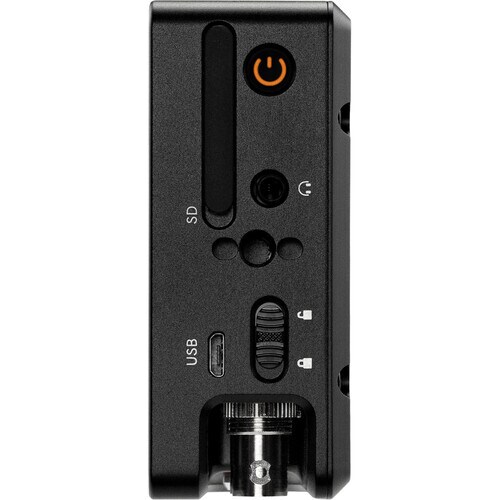

  • Audio: 1x 3.5mm Stereo Headphone Jack

Data I/O

  • Connector Type: 1x RJ45 Ethernet
  • Storage Media: 1x SD Card Slot
  • USB: 1x Micro USB 1x Locking USB

Power

  • Input: 2-pin Locking Power Input (10-34V DC, 2.1A)

Software

  • Pixel Zoom: Yes
  • Focus Assist: Yes
  • Peaking: Yes
  • False Color: Customizable False Color Overlays
  • Waveform: Customizable 4K Waveform w/Region of Interest Highlighting (Coming Soon)
  • Custom LUTS: 17pt 3D-LUT on Output/Input 33pt 3D-LUT on Output/Input
