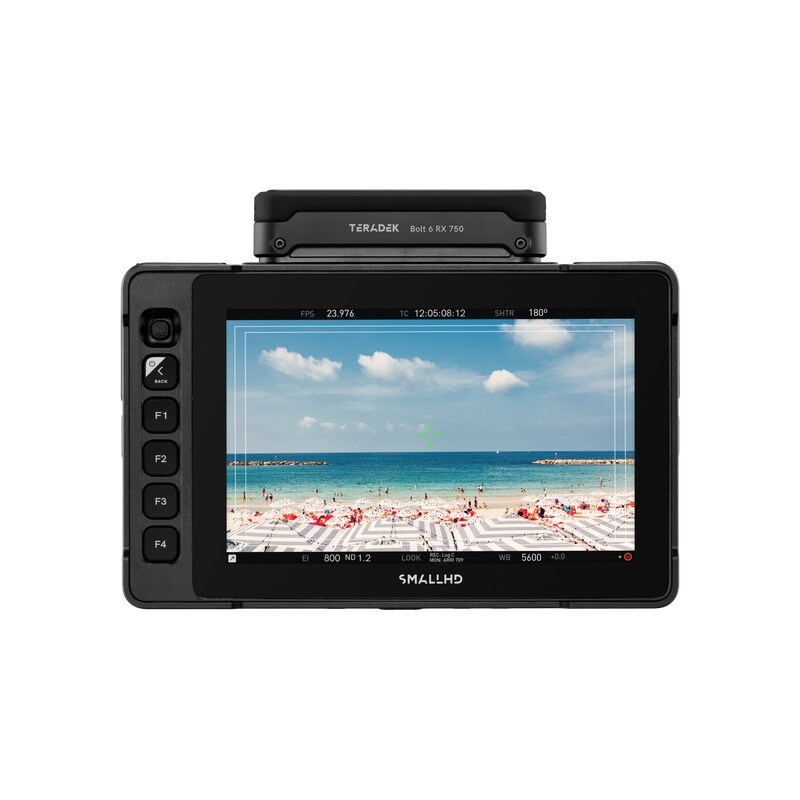

SmallHD Ultra 7 Bolt 6 RX 750 Gold Mount Kit

(0)No Reviews yet
SKU: 160728GM

SmallHD Ultra 7 Bolt 6 RX 750 Gold Mount Kit

Back

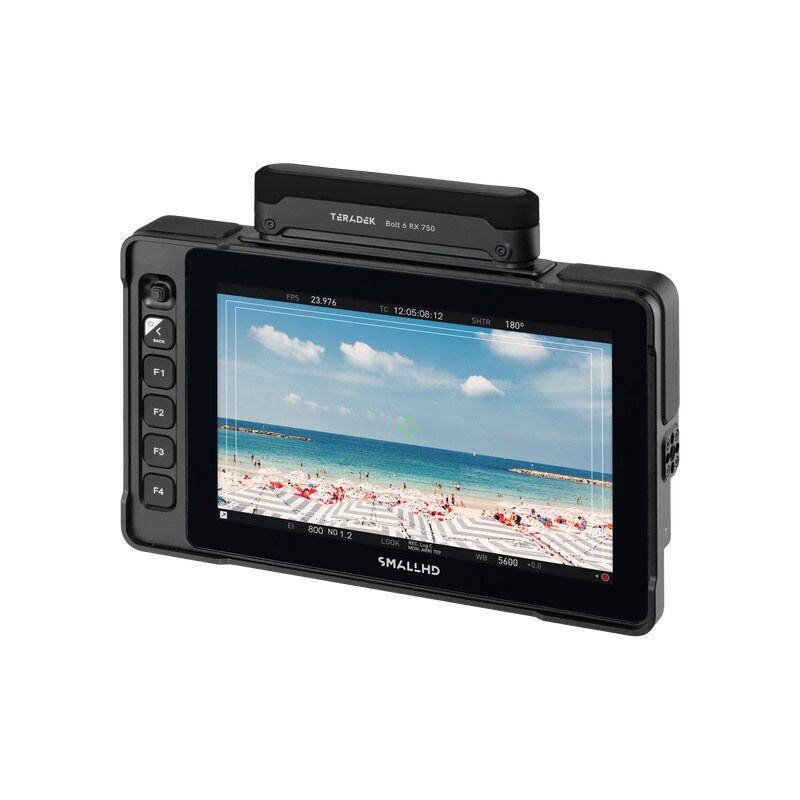

7-inch touchscreen camera monitor with integrated wireless video receiver

Features

  • Ultra Bright (2300nits)
  • Dust and water resistant with an IP54 rating
  • 6G-SDI for modern 4K end-to-end workflows
  • Camera Control compatible with all current SmallHD licenses
  • Function Buttons for tactile controlIntegrated Bolt 6 RX 750 or 1500

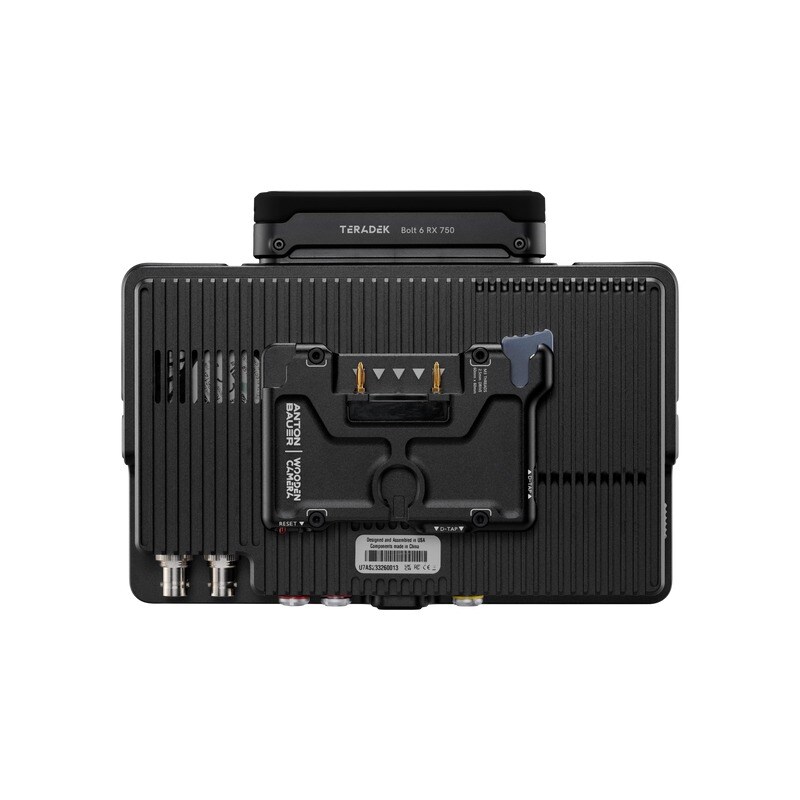

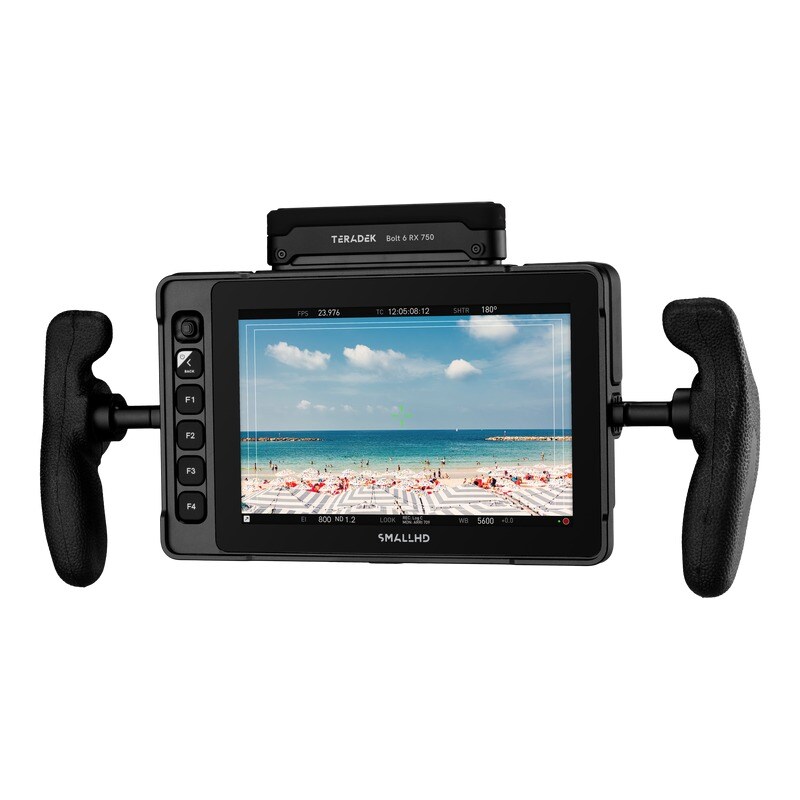

  • Production-ready, with Gold or V-Mount Wooden Camera Micro Battery Plates, Monitor Handles, and Neck Strap

Powerful, bright, and durable, the Ultra 7 offers a stunning 2300nits brightness and a full suite of large front-facing custom-function buttons for maximum control in all conditions. Experience all your favorite PageOS tools and functions on a fully loaded 7-inch touchscreen field monitor powerful enough to ingest a 4K signal with 6G-SDI.

Ultra 7 is adaptable to all situations and conditions, including optional Gold Mount, V-Mount, or B-Mount Micro Battery Plates for a compact power solution, an Ethernet port to enable ARRI and Sony VENICE Camera Control, and a 5-Pin USB port for RED® Camera Control (Camera Control license and cable sold separately).

We brought together SmallHD’s Ultra 7 monitor with Teradek’s wireless transmission technology. Ultra 7 Bolt 6 TX integrates a Bolt 6 Transmitter directly inside an Ultra 7 monitor, allowing you to wirelessly send the image from your camera with the new internal V-Antenna.

Back

Environmental

IP Rating

  • IP 54

Item Weight (oz)

  • 35.2

Height (in)

  • 1.36

Width (in)

  • 6.18

Length/Depth (in)

  • 8.23

Display

Resolution

  • 1920x1200

Max Brightness

  • 2300nits

Contrast

  • 1000:1

Gamut

  • 95% DCI-P3 Coverage / 98% REC 709

Color Depth

  • 10-bit Processing (8-bit panel)

Backlight Type

  • LED Edgelit

Input Signal

3G-SDI Input Types

  • YCC 4:2:2 @ 10-bits: 1080p60, 1080p59.94, 1080p50, 1080i120, 1080i119.88, 1080i102

6G-SDI Input Types

  • YCC 4:2:2 @ 10 bits: DCI-4Kp30, DCI-4Kp29.97, DCI-4Kp25, DCI-4Kp24, DCI-4Kp23.98, 2160p30, 2160p29.97, 2160p24, 2160p23.98 YCC 4:4:4, YCC+A 4:4:4:4, RGB, RGB+A @ 10 bits: DCI-2Kp60, DCI-2Kp59.94, DCI-2Kp50, DCI-2Kp48, DCI-2Kp47.95, 1080p60, 1080p59.94, 1080p50, 1080p48, 1080p47.95 YCC 4:4:4, YCC+A 4:2:2:4, RGB @ 12 bits: DCI-2Kp60, DCI-2Kp59.94, DCI-2Kp50, DCI-2Kp48, DCI-2Kp47.95, 1080p60, 1080p59.94, 1080p50, 1080p48, 1080p47.95

HD-SDI Input Types

  • YCC 4:2:2 @ 10-bits: 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psf30, 1080psf29.97, 1080psf25, 1080psf24, 1080psf23.98, 1080i60, 1080i59.94, 1080i50, 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.100

SD-SDI Input Types

  • YCC 4:2:2 @ 10-bits: 480i59.94, 576i52

HDMI Input Types

  • YCC 4:2:2 @ 12 bits, 8/10/12/16 bit color in RGB & YCC 4:4:4: 3840x2160 30p, 1080p60, 1080p59.94, 1080p50, 1080p30, 1080p29.97 1080p25, 1080p24, 1080p23.98, 720p120, 720p119.88, 720p100, 720p60, 720p59.94 , 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98, 480p240, 480p239.76, 480p120, 480p119.88, 480p60, 480p59.94, 576p200, 576p100, 576p50, 480i240, 480i239.76, 480i120, 480i119.88, 480i60, 480i59.94, 576i200, 576i100, 576i52

Output Signal

3G-SDI Output Types

  • YCC 4:2:2 @ 10-bits: 1080p60, 1080p59.94, 1080p50, 1080i120, 1080i119.88, 1080i102

HD-SDI Output Types

  • YCC 4:2:2 @ 10-bits: 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psf30, 1080psf29.97, 1080psf25, 1080psf24, 1080psf23.98, 1080i60, 1080i59.94, 1080i50, 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.100

SD-SDI Output Types

  • YCC 4:2:2 @ 10-bits: 480i59.94, 576i52

HDMI Output Types

  • YCC 4:2:2 @ 12 bits, 8 bit color in RGB & YCC 4:4:4: 2160p30, 2160p29.97, 2160p25, 2160p24, 2160p23.98, 1080p120, 1080p119.88, 1080p100, 1080i120, 1080i119.88, 1080i100, 1080i60, 1080i59.94, 1080i50, 720p240, 720p239.76, 720p200 YCC 4:2:2 @ 12 bits, 8/10/12/16 bit color in RGB & YCC 4:4:4: 1080p60, 1080p59.94, 1080p50, 1080p30, 1080p29.97 1080p25, 1080p24, 1080p23.98, 720p120, 720p119.88, 720p100, 720p60, 720p59.94 , 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98, 480p240, 480p239.76, 480p120, 480p119.88, 480p60, 480p59.94, 576p200, 576p100, 576p50, 480i240, 480i239.76, 480i120, 480i119.88, 480i60, 480i59.94, 576i200, 576i100, 576i51

Audio Output Types

  • HDMI & SDI - Incoming Audio Stream is sent downstream via HDMI or SDI connection

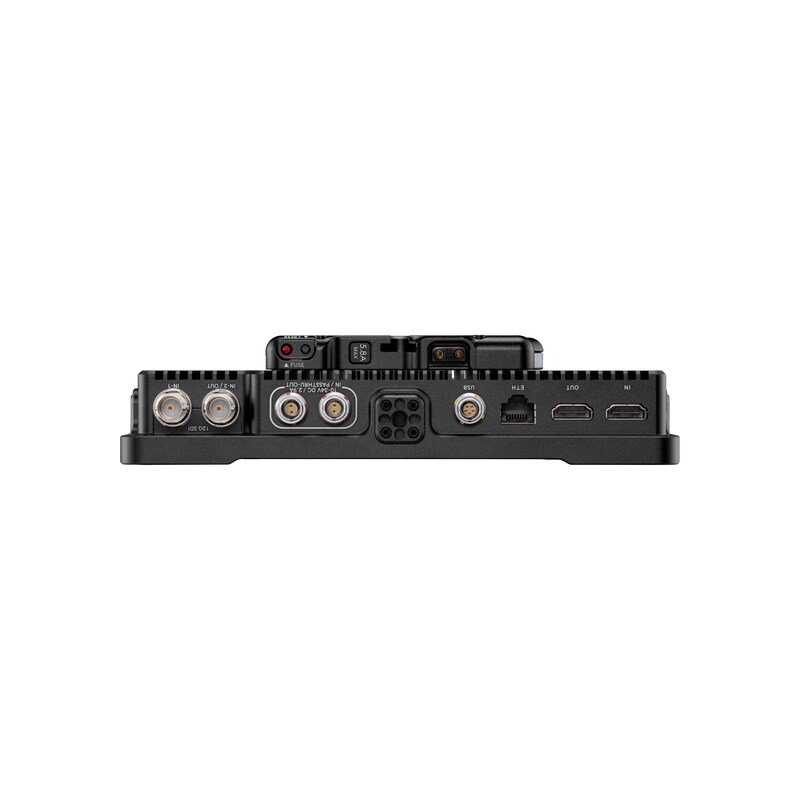

Data I/O

SDI

  • 1x BNC 6G input and 1x BNC 6G input/output

HDMI

  • 1 input and 1 output: HDMI Type-A Receptacles (full size)

Audio

  • 1x 3.5mm 3-pin Stereo Headphone Jack

Ethernet

  • RJ45

Power

Connector

  • 2-Pin Locking Connector

Voltage

  • DC in - 10V minimum to 34V maximum, Battery terminals - 10V minimum to 34V max

Power Supply

  • Recommend DC 12~15V at ~2.5 amp or greater

Battery Types

  • V Mount, Gold Mount Micro Battery Plates

Overload Protection

  • DC input: Reverse polarity

Software

Pixel Zoom

  • 1.1-2.0x & 2.0-8.0x via swipe up/down. Infinitely adjustable via pinch & zoom

Frame Guides

  • Preset Aspect Ratios & Customizable

DSLR Scale

  • Canon 5DMkii & Canon 7D

Custom Scale

  • Yes (Underscan Only)

Anamorphic De-Squeeze

  • 0.75x, 1.33x, 1.5x, 1.66x, 2.0x, 2.5x

Image Rotate

  • Automatic or Manual Control

Image Flip

  • Automatic or Manual Control

Cross Conversion

  • Yes: HDMI → SDI & SDI → HDMI (Coming Soon)

Focus Assist

  • User Adjustable Color Style and Intensity

Peaking

  • User Adjustable Intensity

False Color

  • Rainbow, Arri Style, Custom with up to 10 nodes

Zebra

  • Dual - User Configurable

Waveform

  • Luma & RGB Style, Fully User Customizable w/ Region of Interest Highlighting

Vectorscope

  • Yes

RGB Parade

  • Fully User Customizable

Histogram

  • Luma & RGB Style

Image Capture

  • Yes

LUTS

  • - 33pt User LUT instead of 17pt - 33pt Cal LUT instead of 17pt - LUT tool continues to work after removable media containing the LUT has been removed

Custom LUTS

  • - Loadable as Looks on Pages or as Systemwide Color Calibration via the settings menu - LUT Downstream: Available on SDI or HDMI Out (Coming Soon). Applied on Output Preview Page - LUT Import: via SD Card or USB Storage Device

Color Pipe

  • - Unique Calibrations may be saved to each Color Pipe - Accurate color processing

Overlay

  • With Opacity Slider and Blink Setting

Audio Meters

  • HDMI & SDI up to 8 channel

Multi-View

  • 2 camera feeds simultaneously (Coming Soon)

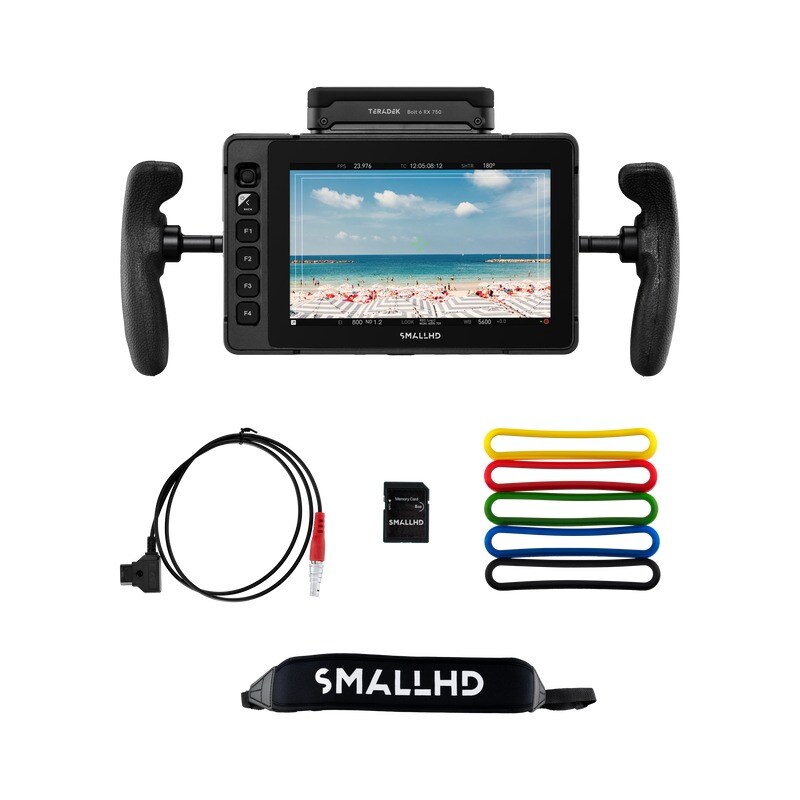

Back
  • Ultra 7 Bolt 6 RX
  • D-Tap to 2pin Power Cable 36in
  • Micro Battery Plate for SmallHD Ultra Series 12V
  • Ultra Screen Protector for Ultra 7
