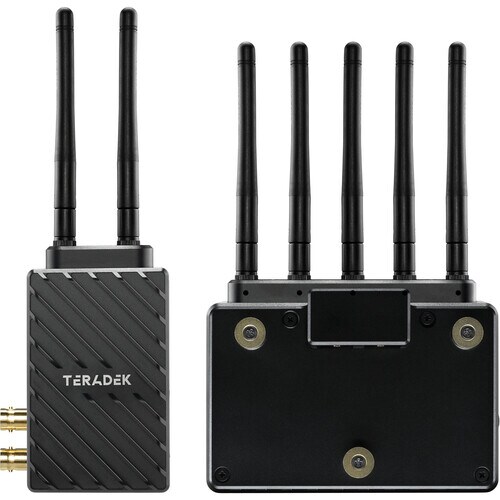

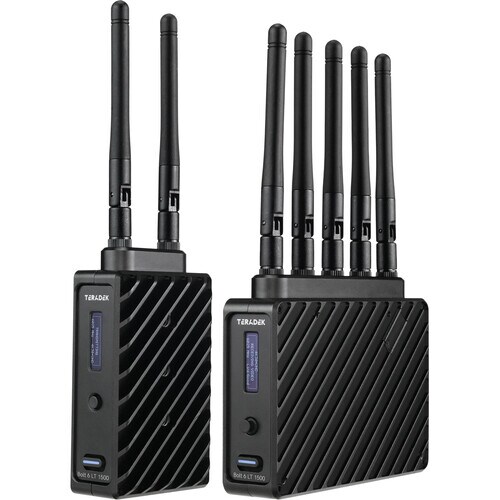

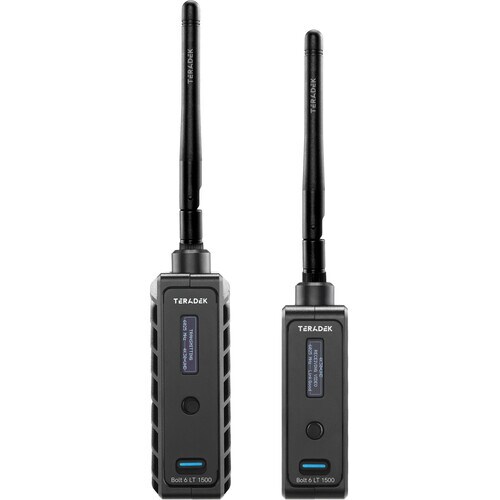

Teradek Bolt 6 LT 1500 3G-SDI/HDMI Transmitter/Receiver Kit (Gold Mount)
Bolt 6 LT is a wireless video transmission system that supports up to 1080p60 10-bit 422 HDR video over 3G-SDI, or 4K30 over HDMI. Bolt 6 uses Teradek’s patented Zero-Delay silicon chip to send wireless video over 5GHz and 6GHz radio frequencies.
Bolt 6 LT Sets offers three line-of-sight options: 750 ft., 1500 ft., and the MAX model, which can be configured for up to 5,000 ft when using the optional Array Antenna and Broadcast Mode. In the MAX model, Broadcast Mode also allows users to increase the number of Receivers from 6 per Transmitter to unlimited per Transmitter.
The 750 model includes V (vertical) antennas. 1500 and MAX models include both V antennas and H (horizontal) antennas. H antennas are designed to maximize signal robustness in the most challenging RF environments.
Optionally, the 750 model of Bolt 6 LT can include permanent internal antennas to allow for reliable zero-delay transmission in a more compact and durable form factor.
Bolt 6 LT 1500 TX
Video +

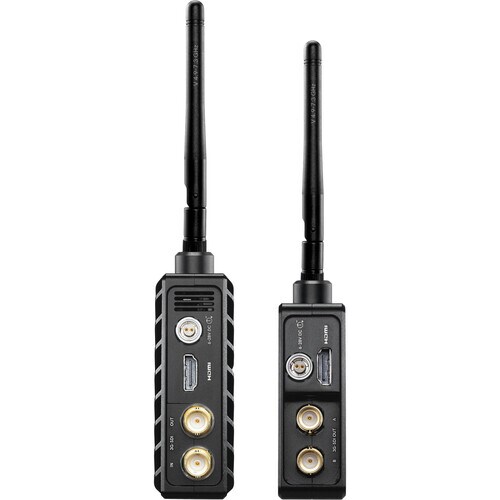

Video Inputs
3G-SDI SMPTE 424M standard / 75 Ω (BNC x 1)
1 x HDMI 1.4b Type-A receptacle
Video Outputs
3G-SDI SMPTE 424M standard / 75 Ω (BNC x 1)
Sdi Ancillary Data Support
Supports reading metadata, timecode, and start/stop flags from most camera manufacturers.
Color Sampling
SDI: YCbCr 4:2:2, 10-bit/ HDMI: RGB/YCbCr 4:4:4 8-bit, 4:2:2 10-bit
Delay Tx To Rx
<0.001sec
Input Cross Conversion
Yes, HDMI to SDI (4Kp23.98-30 HDMI input is scaled and looped out as 1080p23.98-30 on SDI loopout)
Supported Resolutions +
Supported Resolutions
4Kp23.98/24/25/29.97/30 (HDMI only)
1080p23.98/24/25/29.97/30/50/59.94/60
1080psf23.98/24/25/29.97/30
1080i50/59.94/60
720p50/59.94/60
480p59.94 576p50
480i(NTSC)/576i(PAL)
Video Processing +
Video Compression
Visually Lossless
Color Correction
None
Audio Processing +
Audio Compression
48kHz 24-bit PCM
Inputs +
Audio Input
Embedded SDI/HDMI Audio Input (2 Channel)
Physical +
Dimensions
60mm x 103mm x 33mm
Weight
206g (7.3oz)
Construction
Milled Aluminum(Chassis) and regulation-compliant PCB
Mountability

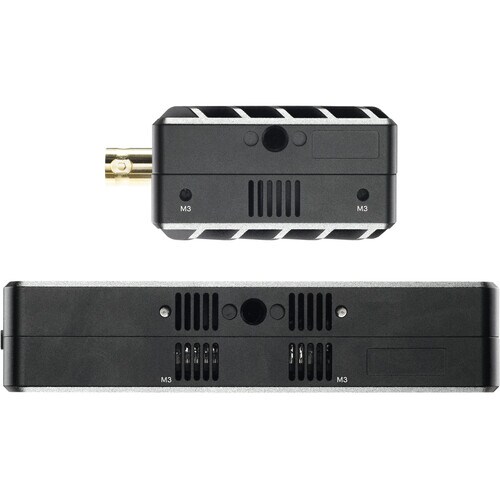

Multiple mounting options with 1/4"x20 and M3 holes
Interfaces +
Configuration Interfaces
OSD with Menu, Joystick Navigation
Switches
On/Off Switch
Mobile App
Bolt App
Desktop App
Bolt Manager application for OSX & Windows
Usb Interface Functionality
Upgrade via Micro-USB
Bluetooth
2.4 GHz
Network +

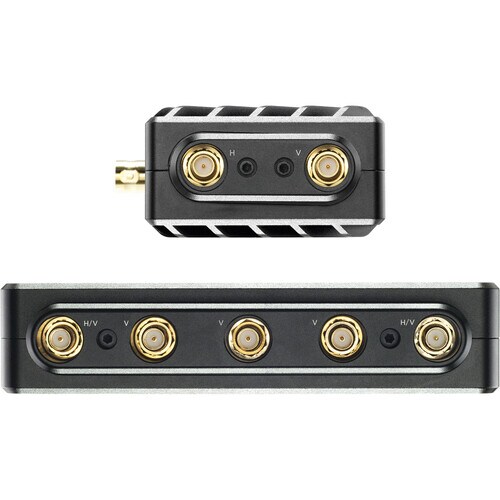

Antennas
2 External 2dBi antennas (included)
Wireless
Non-DFS Frequencies:
5.190 ~ 5.230 GHz, 5.755 ~ 5.795 GHz, 5.945 ~ 6.425GHz
DFS Frequencies:
5.270 ~ 5.670 GHz
Rf Channel Selection
Auto, Manual
Encryption
AES-256, RSA-1024 key exchange
Rf Power
23 dbm EIRP
Range
Up to 1500 ft, line of sight
Unicast Multicast
Can connect one Transmitter to up to 6 Receivers
Noise Rejection
Can coexist with WiFi and 5GHz cordless phones
Can operate up to 6 sets in same location
Interoperability Compatibility
Can transmit wireless video to all ranges of Bolt 4K XT and Bolt 4K LT receivers (limited by shortest range device)
Power +
Power Input
2-Pin Circular locking Connector 6-28 VDC
Battery
None, optional Sony/Canon dual battery plate
Nominal Power Consumption
9 Watts
Environmental +
Operating Temperature
0-40℃
Bolt 6 LT 1500 RX
Video +
Video Outputs
3G-SDI SMPTE 424M standard / 75 Ω (BNC x 1)
1 x HDMI 1.4b Type-A receptacle
Sdi Ancillary Data Support
Supports reading metadata, timecode, and start/stop flags from most camera manufacturers.
Color Sampling
SDI: YCbCr 4:2:2, 10-bit/ HDMI: RGB/YCbCr 4:4:4 8-bit, 4:2:2 10-bit
Output Video Scaling
No manual settings, but all signals above 4K30 for HDMI and 1080p60 for SDI are scaled down to 1080p for corresponding output
Supported Resolutions +
Supported Resolutions
4Kp23.98/24/25/29.97/30 (HDMI only)
1080p23.98/24/25/29.97/30/50/59.94/60
1080psf23.98/24/25/29.97/30
1080i50/59.94/60
720p50/59.94/60
480p59.94 576p50
480i(NTSC)/576i(PAL)
Video Processing +
Video Compression
Visually Lossless
Test Pattern Generator Support
Yes
Spectrum Analyzer
Yes
Color Correction
17x17x17 3D LUT (supports 10-bit color)
Audio Processing +
Audio Compression
48kHz 24-bit PCM
Audio Output
Embedded SDI/HDMI Audio Output (2 Channel)
Physical +
Dimensions
122mm x 94mm x 27mm
Weight
292g (10.3oz)
Construction
Milled Aluminum(Chassis) and regulation-compliant PCB
Mountability
Multiple mounting options with 1/4"x20 and 3/8"x16 holes
Interfaces +
Configuration Interfaces
OSD with Menu, Joystick Navigation
Switches
On/Off Switch
Mobile App
Bolt App
Desktop App
Bolt Manager application for OSX & Windows
Usb Interface Functionality
Upgrade via Micro-USB
Bluetooth
2.4 GHz
Network +
Antennas
5 External 2 dBi antennas (included)
Wireless
Non-DFS Frequencies:
5.190 ~ 5.230 GHz, 5.755 ~ 5.795 GHz, 5.945 ~ 6.425GHz
DFS Frequencies:
5.270 ~ 5.670 GHz
Rf Channel Selection
Auto, Manual
Encryption
AES-256, RSA-1024 key exchange
Rf Power
21 dbm EIRP
Range
Up to 1500 ft, line of sight
Unicast Multicast
Can connect one Transmitter to up to 6 Receivers
Noise Rejection
Can coexist with WiFi and 5GHz cordless phones
Can operate up to 6 sets in same location
Interoperability Compatibility
Can receive wireless video from all ranges of Bolt 4K XT and Bolt 4K LT transmitters (limited by shortest range device)
Power +
Power Input
2-Pin Circular locking Connector 6-28 VDC
Battery

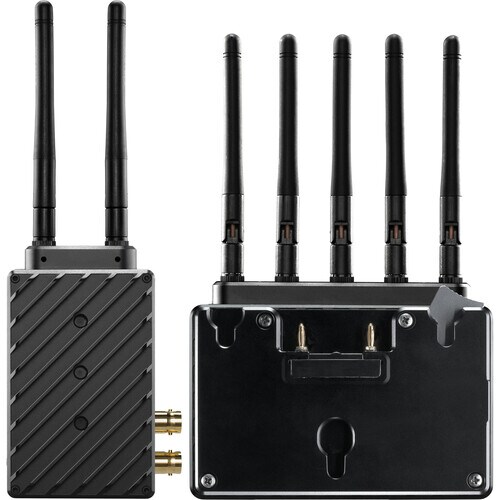

None, optional Gold or V mount battery plate
Nominal Power Consumption
11 Watts
Environmental +
Operating Temperature
0-40℃
- 1x Bolt 6 LT 1500 TX
- 1x Bolt 6 LT 1500 RX
- 7x Teradek 6G V Antenna (2dBi 4.9-7.3Ghz RP-SMA)
- 3x Teradek 6G Flexible H Antenna ""Mushroom"" (2dBi 4.9-7.3Ghz RP-SMA)
- 1x Lightstand Adapter 1/4-20in
- 1x Hot Shoe Adaptor
- 1x (Bit 118) 2pin Conn. to PowerTap - 18in/46cm Cable
- 2x Ultra Thin HDMI Male Type A (Full) - HDMI Male Type A (Full) 18in/46cm Cable
- 2x SDI - BNC to BNC Cable, 10in
- 1x PSU 2pin Conn. to 18W AC Adapter (Int) - 6ft Cable
