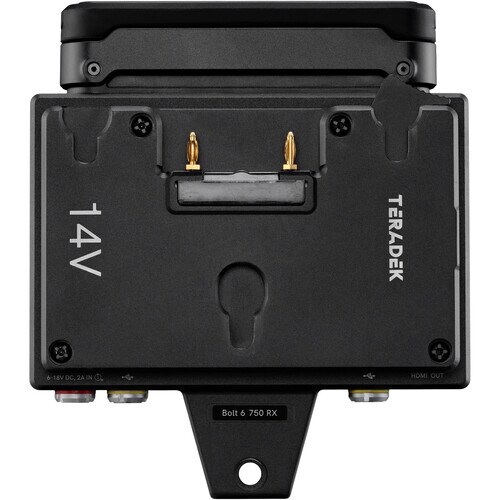

Teradek Bolt 6 Monitor Module 750 RX (Gold Mount)
Bolt 6 RX Monitor Module is a wireless video receiver that supports up to 4K30 10-bit 422 HDR video. Bolt 6 uses Teradek’s patented Zero-Delay silicon chip to send wireless video over 5GHz and 6GHz radio frequencies.
The Bolt 6 Receiver Monitor Module easily attaches to the back of SmallHD’s Cine 7, 702 Touch, and Indie 7 Smart Monitors. With this direct integration, the Bolt 6 and Smart monitor can share power and video, allowing you to reduce the amount of cables on set. With the Bolt 6 Monitor Module, Wireless Camera-Control is also possible because it integrates directly into SmallHD Smart Monitors.
Bolt 6 Monitor Module RX offers two line-of-sight options: 750 ft. and 1500 ft. Additionally, you can upgrade your set to include Gold or V-Mount Battery plates.
The 750 model includes V (vertical) Antennas. 1500 model includes both V Antennas and H (horizontal) antennas. H Antennas are designed to maximize signal robustness in the most challenging RF environments.
Optionally, the 750 model of Bolt 6 Monitor Module RX can include a permanent internal antenna to allow for reliable zero-delay transmission in a more compact and durable form factor.
Video -
Video Outputs
1 x HDMI 1.4b Type-A receptacle
Sdi Ancillary Data Support
Supports reading metadata, timecode, and start/stop flags from most camera manufacturers.
Color Sampling
SDI: YCbCr 4:2:2, 10-bit/ HDMI: RGB 4:4:4, 8-bit
Delay Tx To Rx
<0.001sec
Supported Resolutions -
Supported Resolutions
4Kp23.98/24/25/29.97/30
1080p23.98/24/25/29.97/30/50/59.94/60
1080psf23.98/24/25/29.97/30
1080i50/59.94/60
720p50/59.94/60
Video Processing -
Video Compression
Visually Lossless
Color Correction
None
Audio Processing -
Audio Compression
48kHz 24-bit PCM
Outputs -
Audio Output
Embedded HDMI Audio Output (2 Channel)
Physical -
Dimensions
122mm x 94mm x 27mm
Weight
292g (10.3oz)
Construction
Milled Aluminum(Chassis) and regulation-compliant PCB
Mountability
SmallHD 7" Monitor
Interfaces -
Configuration Interfaces
SmallHD Monitor UI
Mobile App
Bolt App
Usb Interface Functionality
SmallHD Monitor UI
2x 5pin Locking Connector CCU (Host)
Bluetooth
Via SmallHD Monitor
Network -
Antennas
5x Internal 2dBi antennas
Wireless
DFS Frequencies: 5.270 ~ 5.670 GHz Non-DFS Frequencies: 5.190 ~ 5.230 GHz, 5.755 ~ 5.795 GHz, and 5.945 ~ 6.425GHz
Rf Channel Selection
Auto, Manual
Encryption
AES-256, RSA-1024 key exchange
Rf Power
21 dbm EIRP
Range
Up to 750 ft, line of sight
Unicast Multicast
Can connect one Transmitter to up to 6 Receivers
Noise Rejection
Can coexist with WiFi and 5GHz cordless phones
Can operate up to 6 sets in same location
Interoperability Compatibility
Can receive wireless video from all ranges of Bolt 4K XT and Bolt 4K LT transmitters (limited by shortest range device)
Power -
Power Input
2-Pin Circular locking Connector 6-18 VDC
Battery
None, optional Gold or V mount battery plate
Nominal Power Consumption
6 Watts
Environmental -
Operating Temperature
0-40℃
- 1x Bolt 6 Monitor Module 750 RX Gold Mount
- 1x HDMI Adapter Bolt 4K RX Monitor Module
