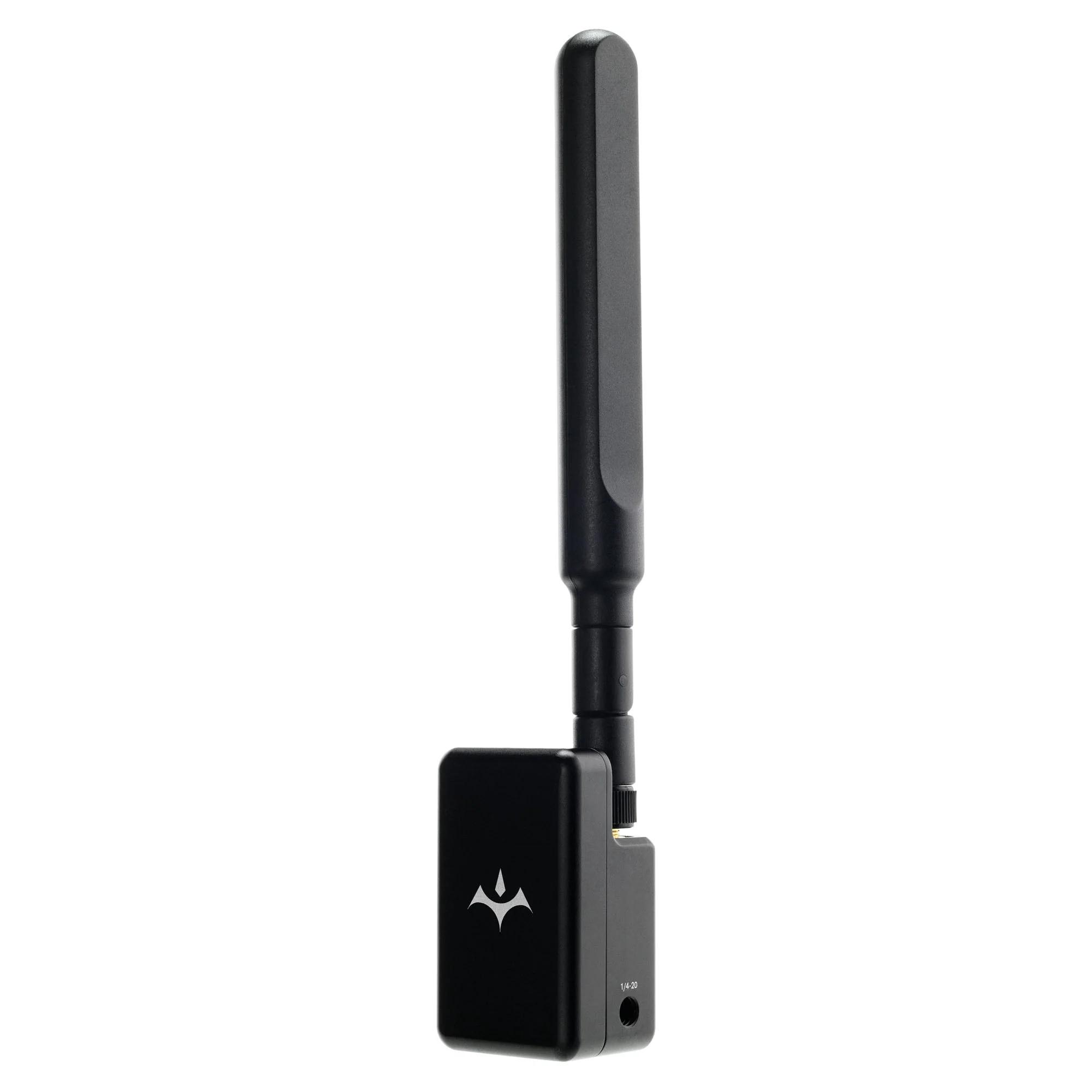

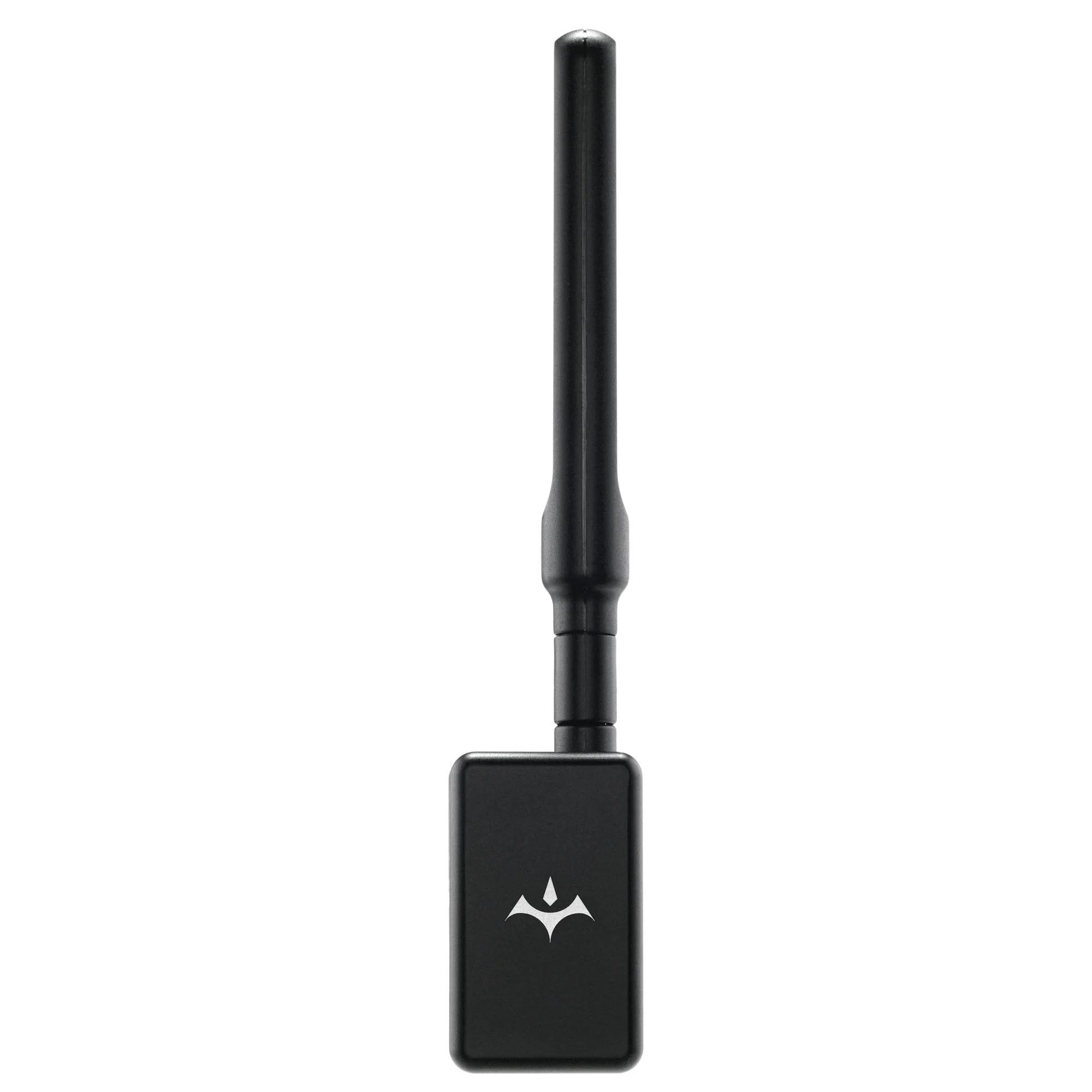

Teradek Node II CBRS 4G/3G Global Modem (USB-C)

SKU: TER100035C

Teradek Node II CBRS 4G/3G Global Modem (USB-C)


Compatible with Prism Flex and Serv 4K only.
Private like Wifi, Range like Cellular. The Node II CBRS allows connection using the CBRS frequency sharing system in the United States, enabling compatibility with your personal CBRS cell solution. Additionally, get exceptional internet connectivity anywhere in the world as a high-performance LTE/4G/3G modem. Node II CBRS gives you nearly world wide LTE band coverage, universal cellular SIM card compatibility and set to work with virtually every carrier*.

Performance
With external high-gain antennas and the industrial-grade Cat. 12 LTE modem, Node II CBRS gives you robust connectivity in the most challenging broadband environments. It delivers a maximum of 480 Mbps downlink 150 Mbps uplink and features dual MFF2 SIM slots (nano & micro SIM adapters included).

Carrier Compatible
Node II CBRS works with virtually any plastic SIM card, and can operate on most LTE/4G/3G data bands in the world. In the U.S. the Node II CBRS can join networks such as Ericsson, Baicells and many more networks for transporting video across private cellular networks.

GPS
The Node II CBRS supports GPS mux’ed on it’s antenna for future uses with Teradek products.

Super Durable and Weather Resistant

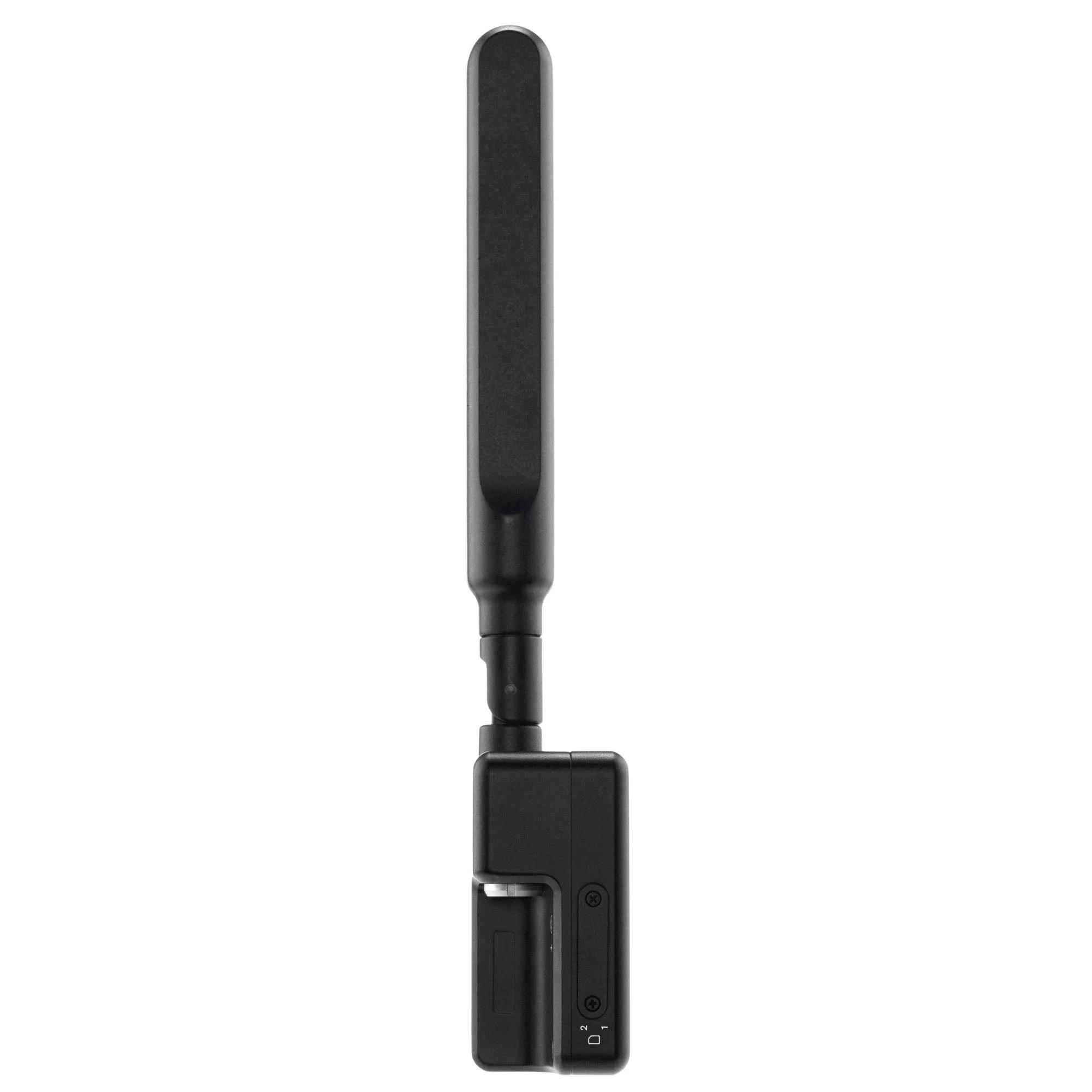

Traditional USB modems are easily broken during extended use in the field. Node II solves the durability problem with an aluminum chassis, 3 ¼”-20 mounting options, and a 5-pin locking connector to attach to your Teradek device.
*While a carrier may be supported, action may be required by the end user to authorize the modem.

Physical -
Dimensions
2.47" x 1.50" x 1.20"
Weight
3.2 oz (90g)
Construction
Milled Aluminum (Chassis), regulation compliant PCB
Mountability

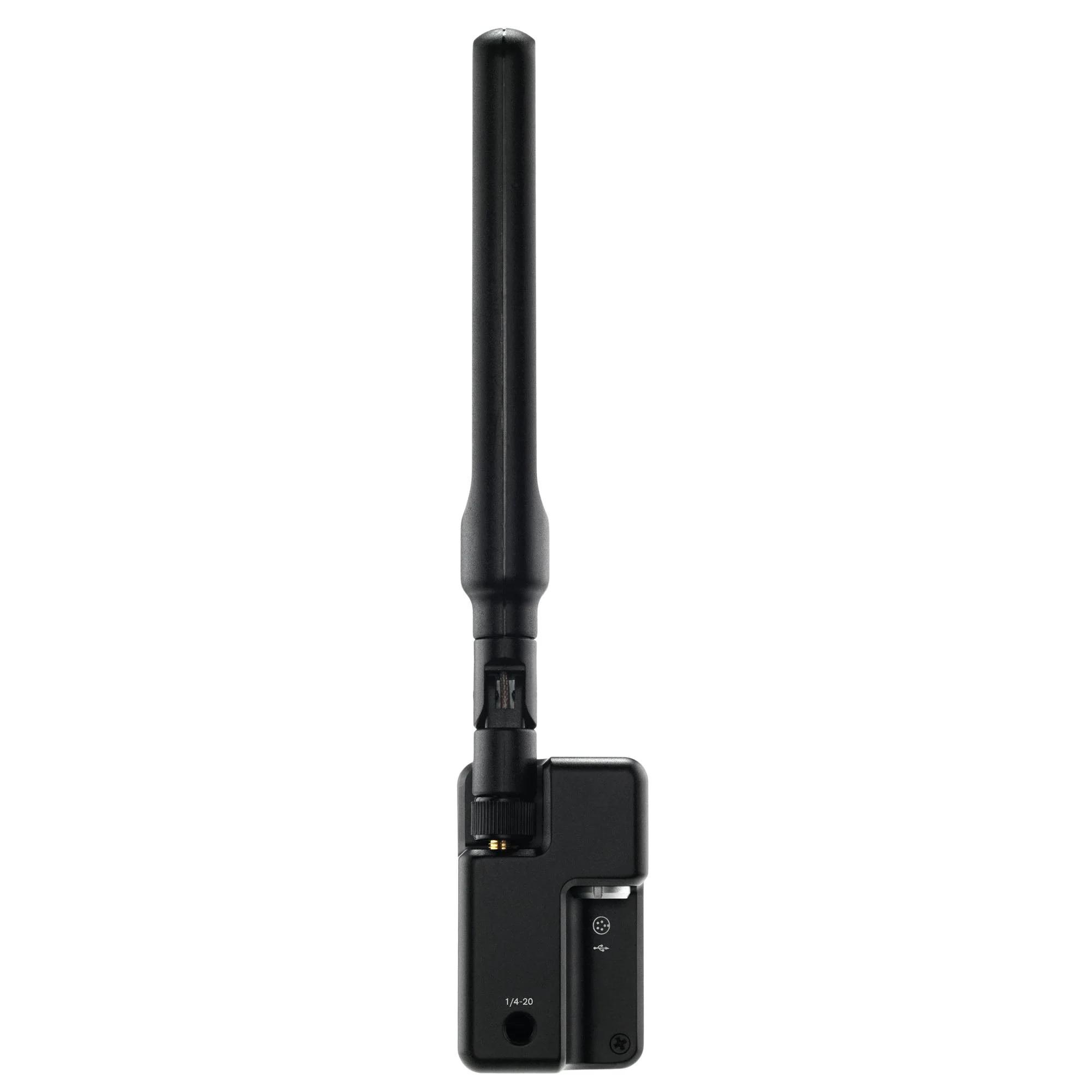

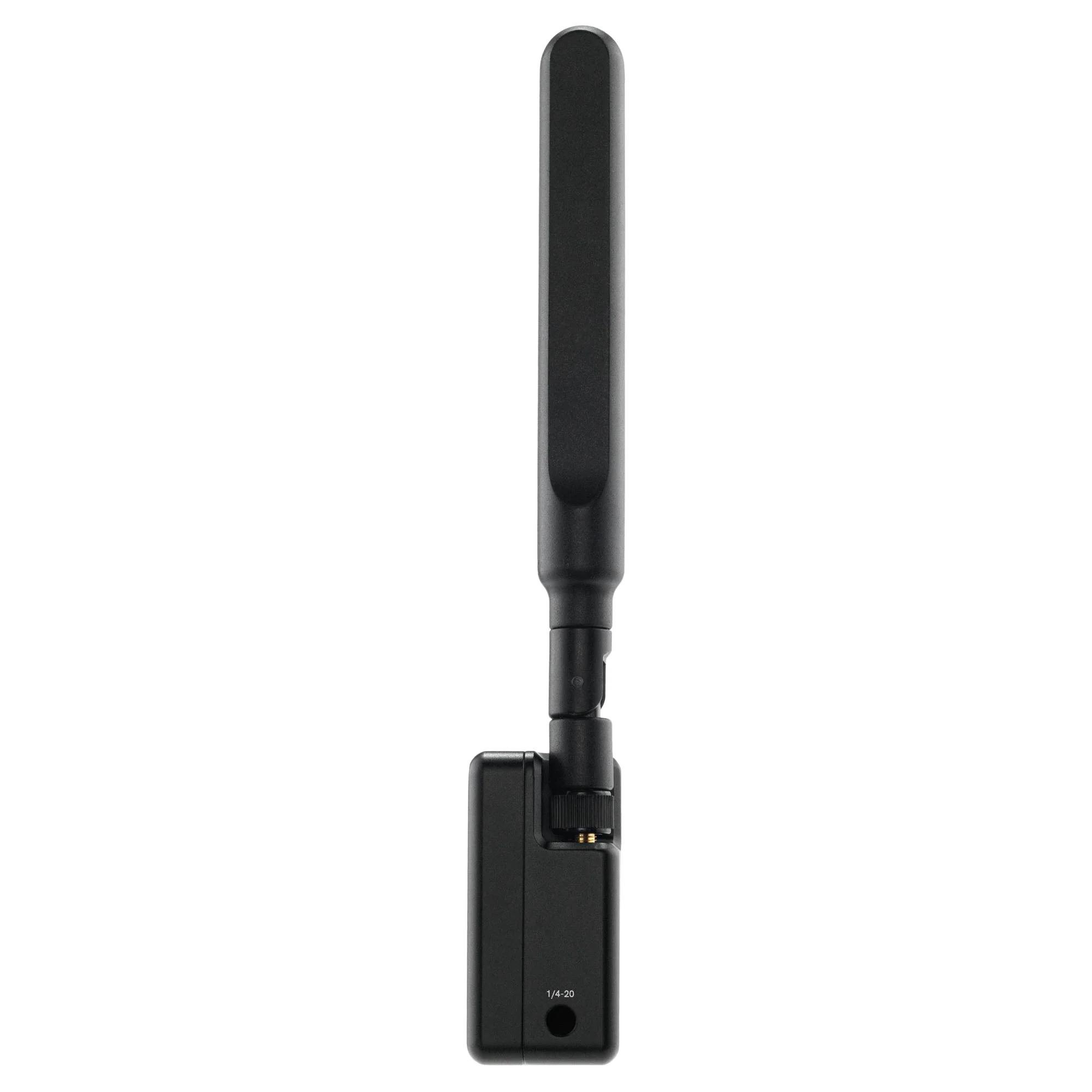

3 x 1/4"-20 threaded hole

Environmental -
Temperature
Operating: -10ºC to 50ºC
Storage: -40ºC to 90ºC
Humidity
Operating: 5% to 95% (non-condensing)
Storage: Max. 90%

Interfaces -
Interface

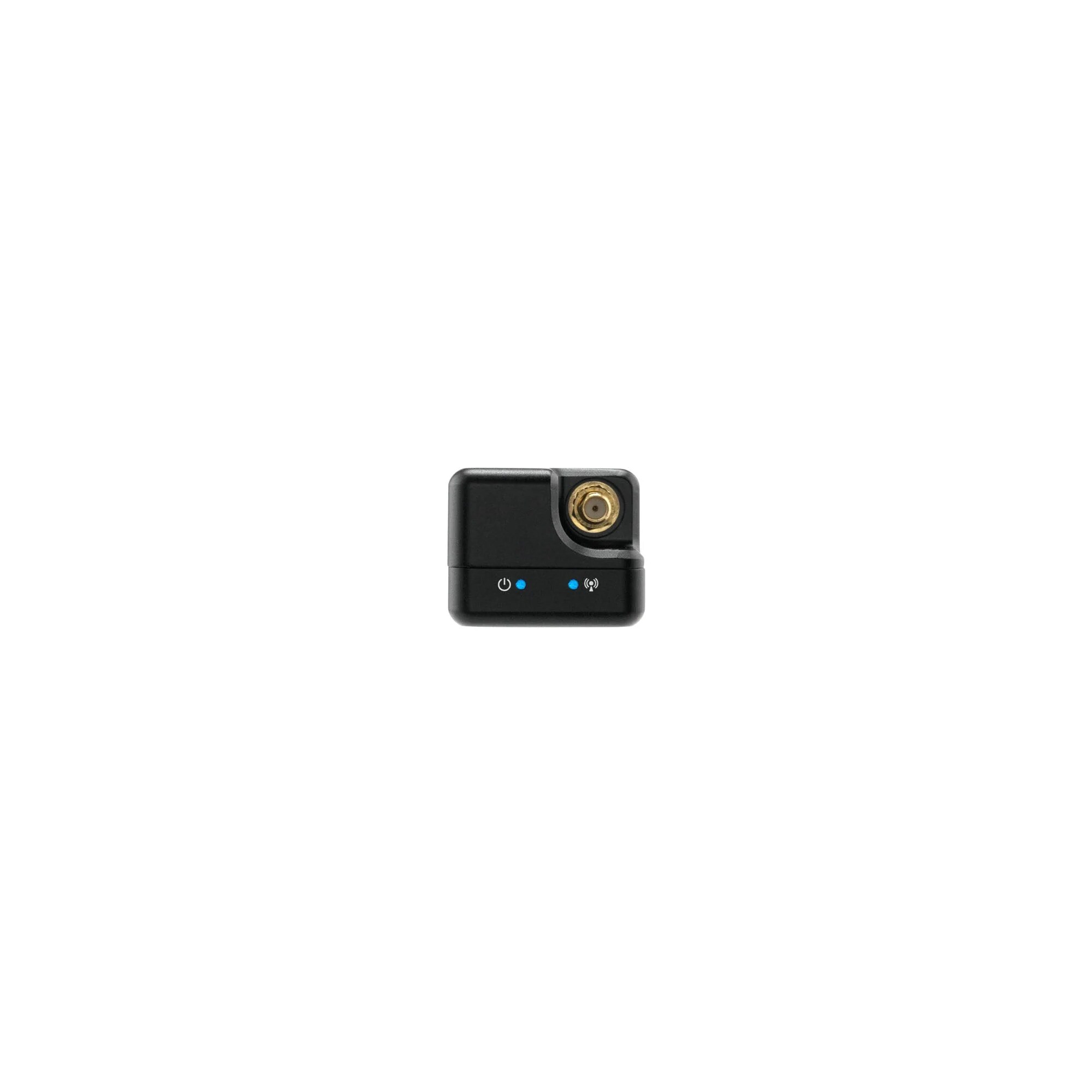

2 Status LEDs
Interface
USB to 5-pin connector

Network -
Lte Fdd
B1/B2/B3/B4/B5/B7/B8/B9/ B12/B13/B14/B17/B18/B19/B20/ B21/B25/B26/B28/B292 /B30/B32/ B66
Lte Tdd
B38/B39/B40/B41/B42/B43/B46(LAA)/B48 (CBRS)
Wcdma
B1/B2/B3/B4/B5/B8/B9/B19
Gnss
GPS/GLONASS/BeiDou(COMPASS)/Galileo
Max Data Rates
LTE FDD Cat 12: Up to 480 Mb/s DL, 150 Mp/s UL
Sim
2x Full size (2FF) SIM slot
Embedded Module
Quectel EM120R-GL FCC ID: XMR2020EM120RGL

Power -
Power Input
5-Pin Connector, 5V
Battery
None
Nominal Power Consumption
5W Max

  • 1 x Node II CBRS
  • 1 x 5pin to USB-C (used with Prism Flex/ Serv 4K Only) - 12in Cable
  • 1 x SIM Card Adapter
  • 1 x Teradek Data sim card
  • 1 x Long Antenna
  • 1 x Short Antenna
