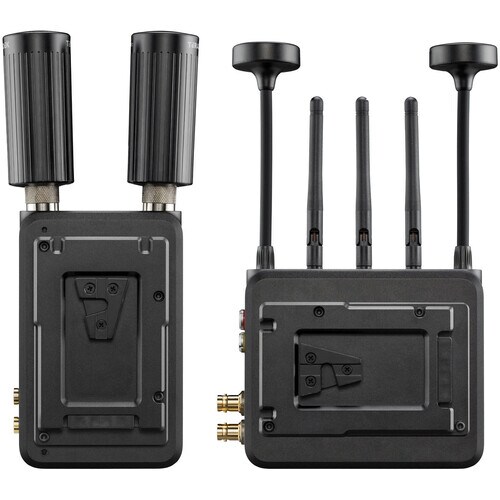

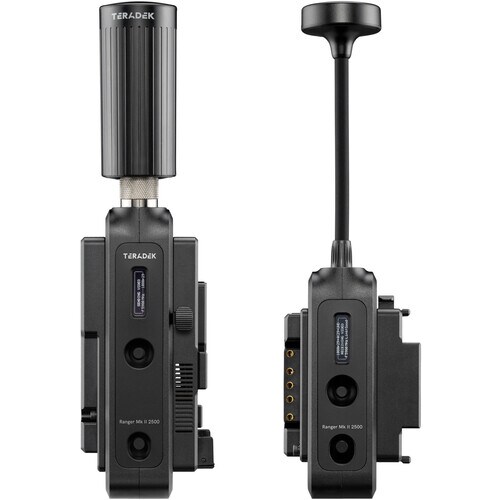

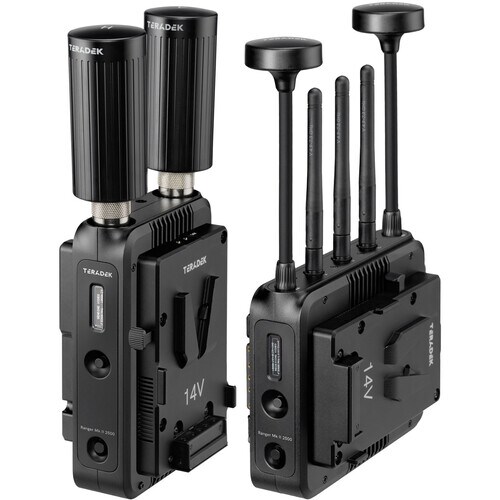

Teradek Ranger MK II 2500 12G-SDI/HDMI Wireless Transmitter/Receiver Set (V-Mount) Teradek Live

Video I/O
1x HDMI 2.0 Output
1x BNC (12G-SDI) Output

Embedded Audio
HDMI: 2-Channel
SDI: 2-Channel

Latency
< 0.01 ms

Video Format
HDMI (8/10-Bit 4:4:4/4:2:2 RGB, YCC)
UHD 4K: 60/59.94/50/30/29.97/25/24/23.98
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080PsF: 30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
576p: 50
480p: 60/59.94
576i: 60
480i: 59.94
SDI (10-Bit 4:2:2 YCC)
UHD 4K: 60/59.94/50/30/29.97/25/24/23.98
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
576p: 50
576i: 50
480p: 60/59.94
480i: 59.94

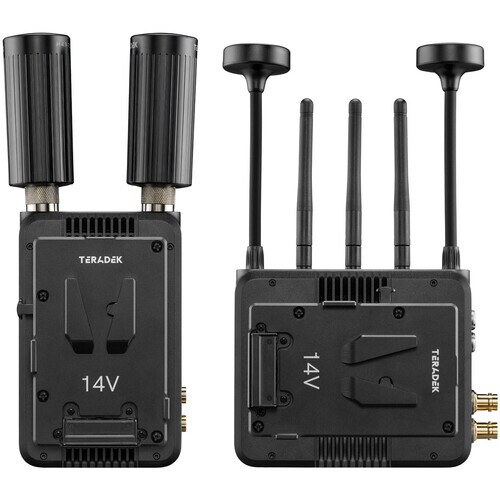

Battery Type
1x V-Mount

Power Consumption
18 W

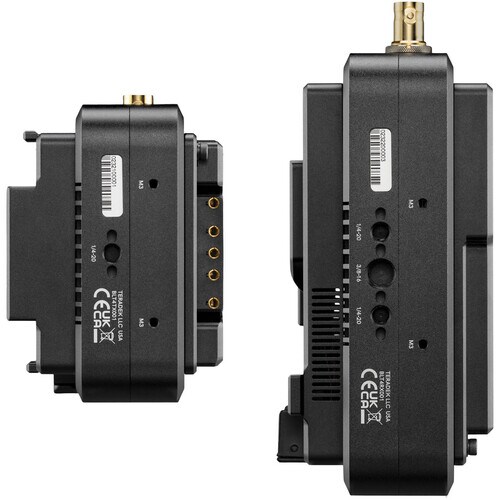

Mounting
1x 1/4"-20 Female
1x 3/8"-16 Female

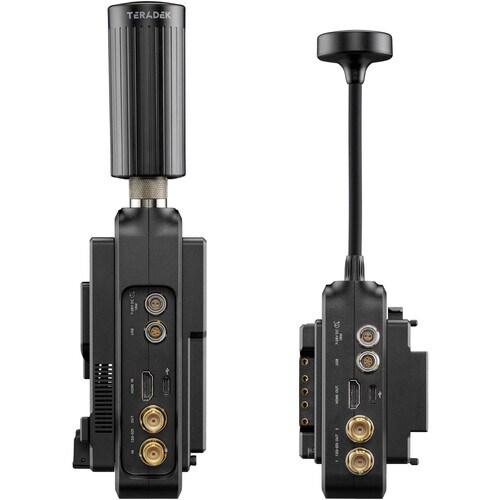

Inputs / Outputs

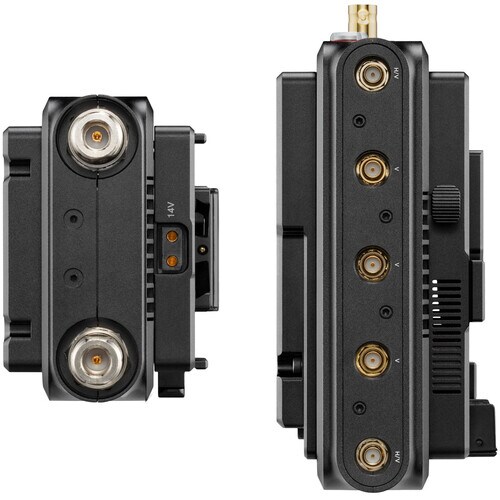

Antenna I/O
5x RP-SMA Female

Video I/O
1x HDMI 2.0 Output
1x BNC (12G-SDI) Output

Embedded Audio
HDMI: 2-Channel
SDI: 2-Channel

Audio I/O
No

Power I/O
1x LEMO 2-Pin (28 VDC) Input

Other I/O
1x USB-C (Firmware) Input

Encryption
256-Bit AES

Wireless
Wireless Range
2500' / 762 m (Line-of-Sight)

Channel Bandwidth
40 MHz, 20 MHz

Frequency Range
US: 5.92 to 6.42 GHz
US: 4.85 to 5.15 GHz
US: 5.35 to 5.47 GHz
US: 5.85 to 5.92 GHz
Non-DFS Frequencies
US: 5.15 to 5.25 GHz
US: 5.72 to 5.85 GHz
DFS Frequencies
US: 5.25 to 5.35 GHz
US: 5.47 to 5.72 GHz

Latency
< 0.01 ms

RF Power
21 dBm

Wi-Fi
No

Bluetooth
5.0 LE

Mobile App Compatible
Yes: Android & iOS
Functionality: Adjust Settings, Remote Control, Setup, View Live Feed

Cellular Support
No

Format Support
Video Format
HDMI (8/10-Bit 4:4:4/4:2:2 RGB, YCC)
UHD 4K: 60/59.94/50/30/29.97/25/24/23.98
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080PsF: 30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
576p: 50
480p: 60/59.94
576i: 60
480i: 59.94
SDI (10-Bit 4:2:2 YCC)
UHD 4K: 60/59.94/50/30/29.97/25/24/23.98
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
576p: 50
576i: 50
480p: 60/59.94
480i: 59.94

Video Standard Compliance
SMPTE ST-2082-1

Audio Format
2-Channel 24-Bit 48 kHz

Wireless Video Compression
Uncompressed

Timecode Support
Yes

Power
DC Input Power
6 to 28 VDC

Battery Type
1x V-Mount

Power Consumption
18 W

Mounting
Mounting
1x 1/4"-20 Female
1x 3/8"-16 Female

Environmental
Operating Temperature
32 to 72°F / 0 to 40°C

General
Material of Construction
Aluminum, Polycarbonate

Dimensions
5.5 x 5.2 x 1.2" / 140 x 133 x 30 mm

Weight
23.2 oz / 658 g

Teradek Ranger MK II 2500 12G-SDI/HDMI Wireless Transmitter/Receiver Set (V-Mount)
