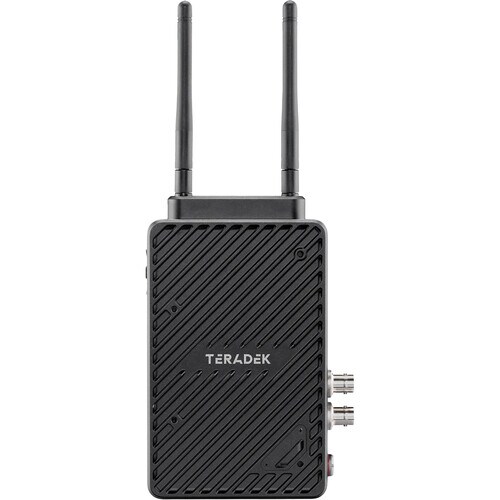

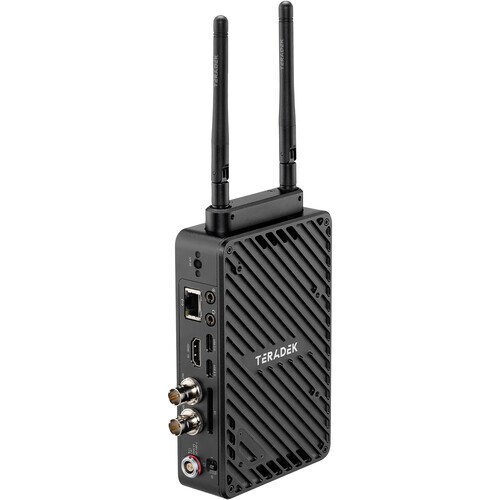

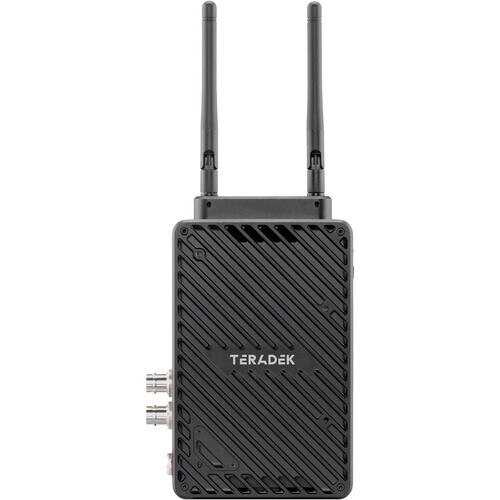

Teradek Serv 4K
Serv 4K is an all-in-one production streaming solution that unites next-gen hardware with simplified UI to easily manage and share 4K HDR streams in real time, whether you’re collaborating on set or around the world. Serv 4K allows both local and cloud-based streaming with Teradek’s free VUER app (iOS and Android) and Multiple Core Cloud Platforms (MacOS, iOS, Android and Web Browsers) as well as third-party integrations like Frame.io. During Local Streaming, up to four live camera feeds can be streamed to multiple local devices at once, even without an internet connection. Cloud-based streaming can be shared with an unlimited number of devices via MacOS, iOS, Android, or web browsers.
This next-gen hardware includes an updated fan for cooling efficiency, directional buttons for menu navigation and military-grade 256-bit encryption. Serv 4K (2024) continues to support up to 45mbps HEVC, 10bit 4:2:2 color, and DCI-P3 / PQ 2084 for consistent color-accuracy from first shot through final color.
Serv 4K is easy to set up, easy to manage, and comes with tools to keep every stakeholder in the loop, wherever they are.
Product Highlights
- 4K HDR with 10-bit 4:2:2 Streaming
- HEVC and AVC Compression
- 12G-SDI and Loop Through
- 256-bit Military-Grade Encryption
- Cellular Bonding with Serv App
Video -
Video Inputs
1x 12G/6G/3G/HD/SD-SDI (75 Ω BNC)
1 x HDMI 2.0 Type-A receptacle
Hdr Support
Yes
Sdi Compliance
Simultaneous bonding over up to 7 networks:
Ethernet
Wi-Fi
USB cellular modem
Up to 4 cellphones (iOS or Android)
Video Outputs
1x 12G/6G/3G/HD/SD-SDI (75 Ω BNC)
Bonding -
Bonding
Serv 4K App
Supported Resolutions -
Supported Resolutions
4K DCI p23.98/24/25/29.97/30/50/59.94/60 1080i 50/59.94/60
4K UHD p23.98/24/25/29.97/30/50/59.94/60
1080p 23.98/24/25/29.97/30/50/59.94/60
1080i 50/59.94/60
1080PsF 23/24/25/29/30
720p 50/59.94/60
576i
480i
Video Processing -
Video Compression
ISO MPEG-4 Part 10: Advanced Video Coding (AVC)/ITU H.264
AVC: Baseline, Main, High
SO MPEG-H Part 2: High Efficiency Video Coding (HEVC)/ITU H.265
HEVC: Main
Supported Video Bitrate
250 Kbps to 85 Mbps
Video Format Conversion Support
Built in video scaler and deinterlacer
Number Of Encoder Streams
Up to one 4KDCI p60 4:2:2 10bit
Color Correction
CDL/1024 1D LUT (supports 10-bit color)
33x33x33 3D LUT (supports 10-bit color)
Protocol Support -
Network Protocols
TCP/IP, UDP, HTTP, DHCP, NTP, SSL, IGMP
Supported Video Transport Protocols
Secure Reliable Transport (SRT), AirMix, Teradek bonding
Remote Control
Teradek Core
Audio Processing -
Audio Compression
AAC-LC
Inputs -
Audio Input
3.5mm Stereo Line Level Analog or Microphone in, adjustable gain
Outputs -
Audio Output
3.5mm Stereo Headphone output
Physical -
Dimensions
6.25”W x 3.6”D x 1.4”H [150 x 107 x 36mm]
Weight
1 lb [476g]
Construction
Milled Aluminum
Mountability

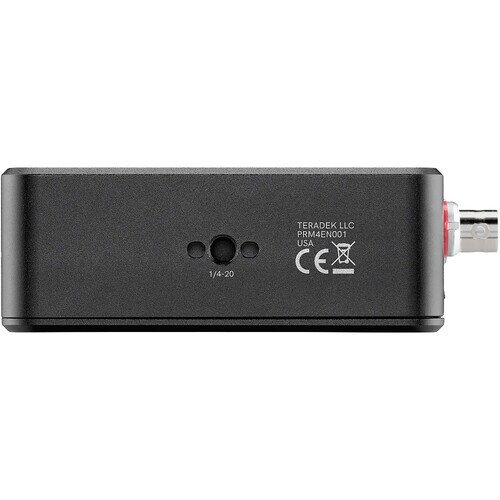

Can be mounted horizontally or vertically with
1/4" 20 mounting holes
Interfaces -
Configuration Interfaces
Feature-rich Web UI for local device management, configuration, and control,
Intuitive iOS/Android configuration app (Teradek Serv),

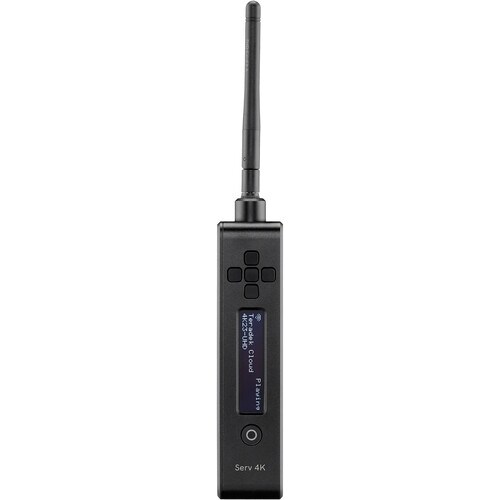

OLED Status Display w/ Nav control buttons,
Core for cloud-based device management
Switches
On/Off switch
Recording Storage
Full-size SD/SDXC (class 6 and above) formatted exFAT,
USB formatted FAT32, NFS
Mobile App
Teradek Serv for iOS and Android devices
Cloud Services
Teradek Core, Frame.io, Sony Ci, PIX
Usb Interface Functionality
2x Powered USB-C host ports with 3G/4G modem support
Network -
Ethernet
10/100/1000 BASE-T Gigabit Ethernet (RJ45)
Wireless
WiFi: 2.4/5GHz 802.11 a/b/g/n/ac/ax MiMo
Power -
Power Input
2-pin circular locking connector
Nominal Power Consumption
18W
Auxilary Power Input
6-28V DC
- 1x Serv 4K (2024)
- 2x Antenna 2dBi WiFi 2.4/5.8 GHz
- 1x PSU 2pin Conn. to 30W AC Adapter (Int) Cable - 6ft
- 1x Power adapters.
- 1x (Bit 118) 2pin to D-Tap Cable - 18in
- 1x SDI - BNC to BNC Cable - 10in"
