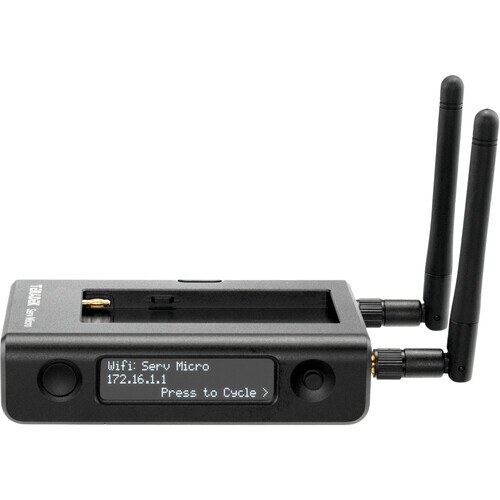

Teradek Serv Micro
Serv Micro is an HDMI-Only wireless video transmission system that can support local streaming up to 10 devices and, when backed by Teradek Core, allows users to access live streams and instant recordings on unlimited devices anywhere in the world. Productions can easily share their camera feeds and playback with off-set producers and clients, allowing for real-time remote collaboration at an accessible price point.
This low-latency wifi-based wireless streaming device is designed to meet your production needs, even while responding to the normal networking challenges productions typically face. For example, when wifi is lost, recordings are saved to an SD card, allowing for a secure upload once connection is restored.
Serv Micro is also designed for quick mastery, with intuitive tools and easy-to-use workflows available through Vuer app and Core cloud solution. Serv Micro comes equipped with HDMI in and loop-through, ethernet and wifi connectivity, an auxiliary audio input, USB type A connection for easy connection to cellular bonding options and a built-in L-Series battery plate.
Three ways to use Serv Micro
- Stream to iOS and Android devices on set without an internet connection using Teradek VUER app. This is recommended for on-set producers and clients using personal devices.
- Share live camera feeds with anyone in the world using Teradek Core. This allows for real-time collaboration with remote creatives, producers, and clients.
- Share instant recordings for remote playback and review. Remote viewers can access and scrub through takes instantly after they’ve been shot using Teradek Core or third-party cloud platforms including Frame.io and Sony Ci.
Video -

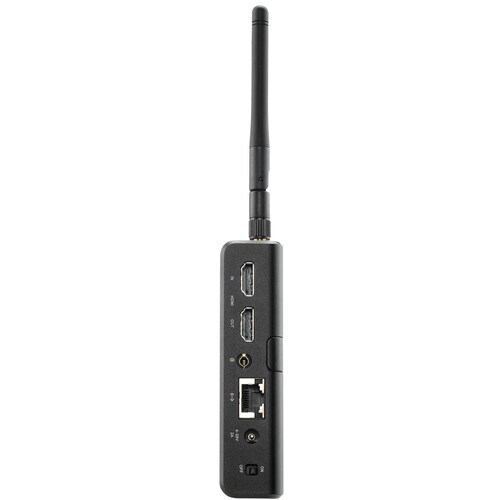

Video Inputs
1 x HDMI 2.0 Type-A receptacle
Video Outputs
1 x HDMI 2.0 Type-A receptacle
Bonding -
Bonding
Simultaneous bonding over up to 7 networks:
Ethernet
Wi-Fi
USB cellular modem
Up to 4 cellphones (iOS or Android)
Supported Resolutions -
Supported Resolutions
1080p 23.98/24/25/29.97/30/50/59.94/60
1080i 50/59.94/60
720p 50/59.94/60
Video Processing -
Video Compression
ISO MPEG-4 Part 10: Advanced Video Coding (AVC)/ITU H.264
AVC: Main
Supported Video Bitrate
300 Kbps to 15 Mbps
Video Format Conversion Support
Built in video scaler and deinterlacer
Protocol Support -
Network Protocols
TCP/IP, UDP, HTTP, DHCP, NTP, SSL, IGMP
Supported Video Transport Protocols
AirMix, Teradek bonding
Audio Processing -
Audio Compression
AAC-LC
Supported Audio Bitrate Details
48Kbps to 512Kbps
Inputs -
Audio Input
Embedded audio input (2 channel)
Analog line or Microphone in (2 channel)
Physical -
Dimensions
4.1”W x 2.9”D x 1.1”H [105 x 75 x 28mm]
Weight
190g (6.7 Oz)
Construction
Machined aluminum and ABS Plastic
Mountability
Can be mounted horizontally or vertically with 1/4” 20 or M3 mounting holes
Interfaces -
Configuration Interfaces
Feature-rich Web UI for configuration and control

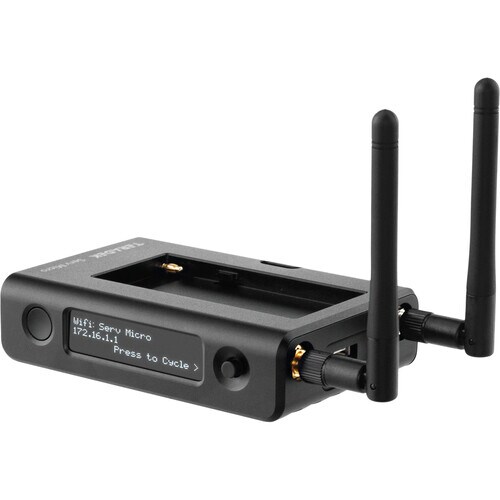

OLED Status Display w/5-way navigation joystick
Switches
On/Off switch

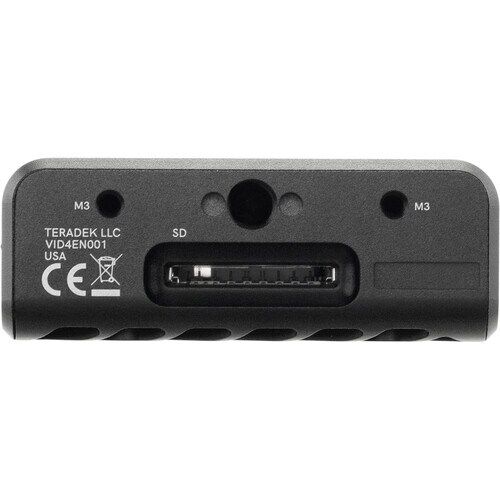

Recording Storage
Full size SD/SDXC (class 6 and above) formatted exFAT
USB formatted FAT32
Mobile App
Serv Manager for iOS and Android devices
Cloud Services
Teradek Core, Frame.io, Sony Ci
Usb Interface Functionality
Powered USB host port
Network -
Ethernet
10/100/1000 BASE-T
Wireless
WiFi 6: Dual Band MIMO 802.11 IEEE a, b, d, e, g, h, i, k, n, r, u, v, w, ac, ax

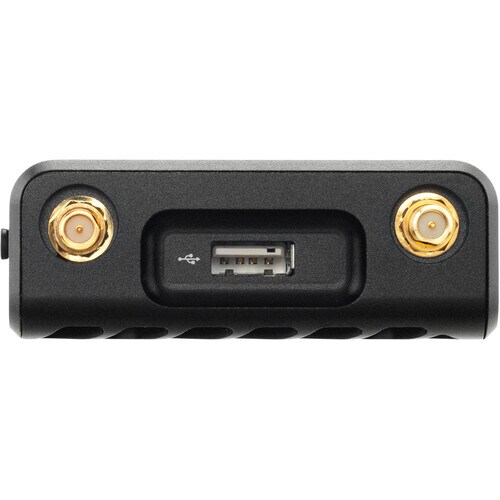

Usb
USB type A (host) for 3G/4G modem support
Rf Channel Selection
Auto with 3 modes: (2.4 or 5 GHz), Auto (2.4 GHz only), Auto (5 GHz only)
Manual: Configurable to specific channels
Power -
Power Input
6-28V barrel connector

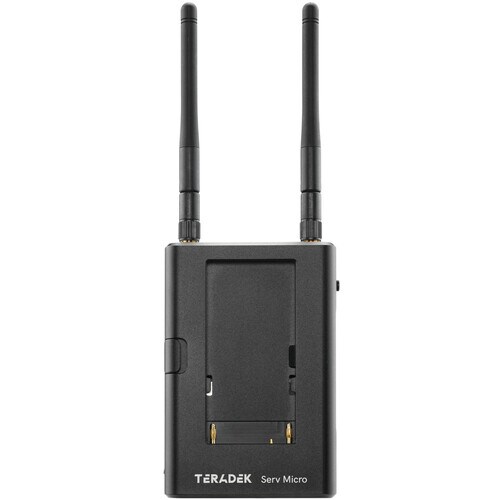

Sony L Series battery
Nominal Power Consumption
4.5W using Ethernet
6W using WiFi
- 1x Serv Micro
- 1x HDMI Male Type C (Mini) - HDMI Male Type A (Full) 18in Cable
- 1x Ethernet Cable
- 1x PSU 18W AC Adapter 12VDC (Int) - 6ft Cable
- 2x Antenna 2dBi WIFI 2.4/5.8GHz (Small Antenna)
- 1x Hot Shoe Adaptor "
