Teradek Spark 4K TX
Built on award-winning tech. Built for reliability. Built with your A/V needs in mind.
Spark 4K TX is a wireless transmitter that sends video signals up to 4Kp30 via HDMI, at a distance of up to 500 ft line-of-sight, with less than 1ms of delay.* Transport your 4K HDR video from source to screen with no perceivable delay.
Unleash high-quality, zero-delay wireless A/V transmission for conferences, live events, worship services, sports, and more.
Key features include dual-powering options for backup battery redundancy, lightweight design, signal status and pairing with the Launchpad desktop and mobile app, and multicast transmission.
Zero-Delay Signal Integrity
Transmit video with less than 1ms of delay.
Mobility
Get wireless coverage for up to 500 feet of range. Now, your computers, cameras, switchers, and gimbals are all within range with robust wireless connectivity.
4K HDR Color
Maintain premium video quality at 10-Bit 4:2:2 color sampling.
Smart Transmission
Transmit in crowded areas with confidence. Spark 4K uses the 5GHz frequency for less sensitivity to line-of-sight obstructions, and smart frequency hopping to automatically find a clear channel.
Lighter than lightweight
Spark TX weighs just 5.6oz, perfect for on-the-move camera work.
Video Processing
Visually Lossless
Audio Processing
48kHz 24-bit PCM
TX Internal Battery Life
Up to 2 hours.
Transmitter tested at 125 mins when transmitting at 1080i59, 104 mins when transmitting at 4Kp30.
Spark 4K TX is a wireless transmitter that sends video signals up to 4Kp30 via HDMI, at a distance of up to 500 ft line-of-sight, with less than 1ms of delay.* Transport your 4K HDR video from source to screen with no perceivable delay.
Unleash high-quality, zero-delay wireless A/V transmission for conferences, live events, worship services, sports, and more.
Key features include dual-powering options for backup battery redundancy, lightweight design, signal status and pairing with the Launchpad desktop and mobile app, and multicast transmission.
Zero-Delay Signal Integrity
Transmit video with less than 1ms of delay.
Mobility
Get wireless coverage for up to 500 feet of range. Now, your computers, cameras, switchers, and gimbals are all within range with robust wireless connectivity.
4K HDR Color
Maintain premium video quality at 10-Bit 4:2:2 color sampling.
Smart Transmission
Transmit in crowded areas with confidence. Spark 4K uses the 5GHz frequency for less sensitivity to line-of-sight obstructions, and smart frequency hopping to automatically find a clear channel.
Lighter than lightweight
Spark TX weighs just 5.6oz, perfect for on-the-move camera work.
Video Processing
Visually Lossless
Audio Processing
48kHz 24-bit PCM
TX Internal Battery Life
Up to 2 hours.
Transmitter tested at 125 mins when transmitting at 1080i59, 104 mins when transmitting at 4Kp30.
Video
Video Inputs
Color Sampling
Delay Tx To Rx
Supported Resolutions
Supported Resolutions
Video Processing
Video Compression
Audio Processing
Audio Compression
Audio Input
Physical
Dimensions
Weight
Construction
Mountability
Interfaces
Configuration Interfaces
Network
Wireless
Rf Channel Selection
Encryption
Rf Power
Range
Unicast Multicast
Noise Rejection
Power
Power Input
Battery
Nominal Power Consumption
Environmental
Operating Temperature
Video Inputs

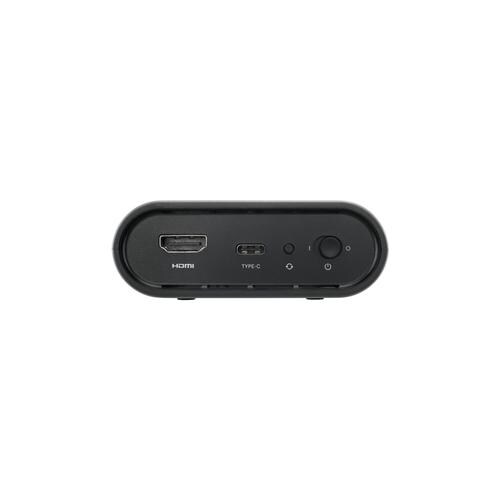

- 1x HDMI 1.4b Type-A receptacle
Color Sampling
- RGB 4:2:2, 10-bit
Delay Tx To Rx
- <0.001sec (without format conversions)
Supported Resolutions
Supported Resolutions
- 4Kp23.98/24/25/29.97/30 1080p23.98/24/25/29.97/30/50/59.94/60 1080i50/59.94/60 720p50/59.94/60 480p50 576p59.94/60
Video Processing
Video Compression
- Visually lossless
Audio Processing
Audio Compression
- 48kHz 24-bit PCM
Audio Input
- Embedded HDMI Audio Input (2 channel)
Physical
Dimensions
- 3.44” x 2.66” x 1.22” (87mm x 68mm x 31mm)
Weight
- 158g (5.6 oz)
Construction
- ABS Plastic
Mountability

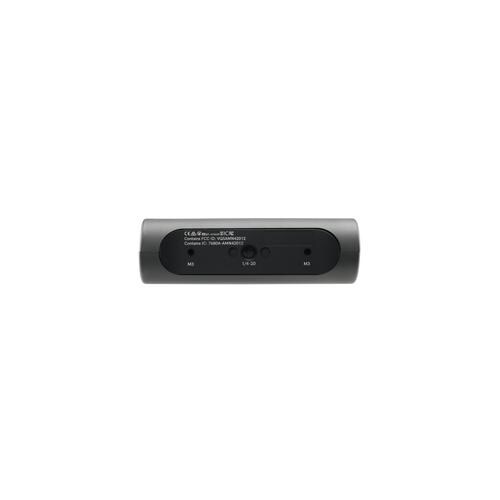

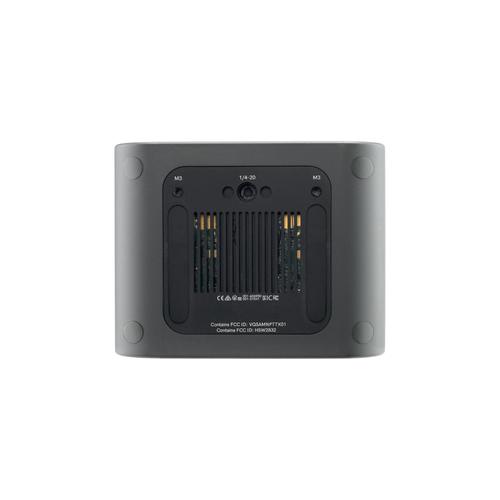

- Multiple mounting options with M3 and 1/4-20” holes
Interfaces
Configuration Interfaces

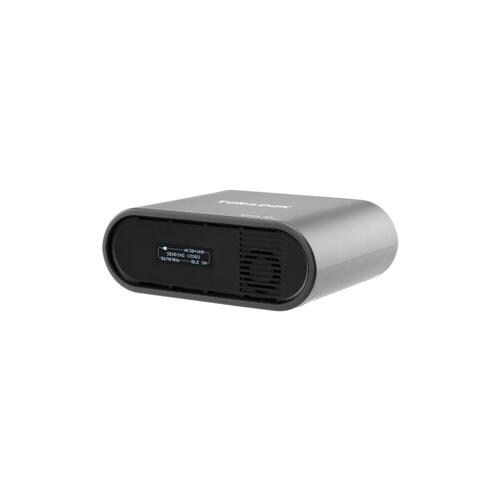

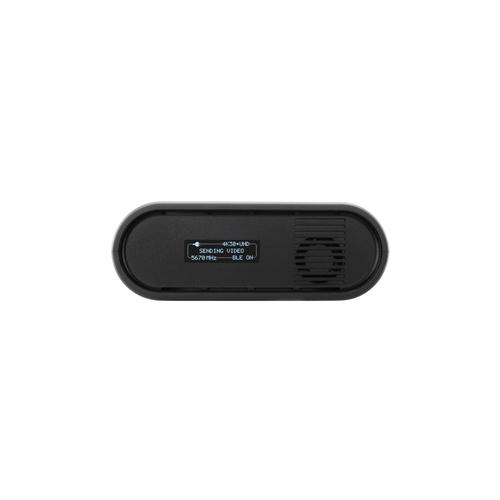

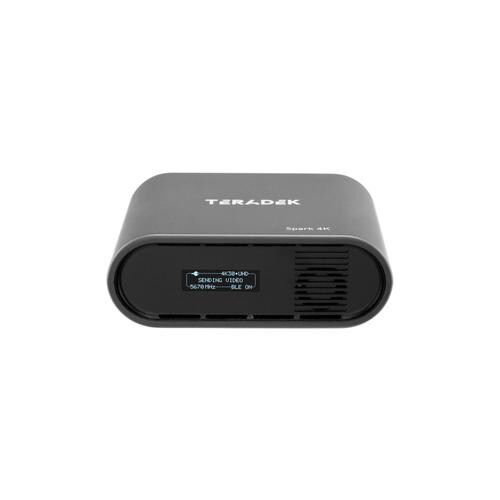

- OLED display - Input video format, Selected frequency, Video Quality % , Link status
- On/Off Switch
- Launchpad App
- Launchpad application for OSX & Windows
- Upgrade via Micro-USB
- Enable/disable Bluetooth
- 2.4 GHz
Network
Wireless
- DFS Frequencies: 5.270 ~ 5.670 GHz Non-DFS Frequencies: 5.190 ~ 5.230 GHz and 5.755 ~ 5.795 GHz
Rf Channel Selection
- Auto only, 40 MHz only, no blocked frequencies
Encryption
- AES-128, RSA-1024 key exchange
Rf Power
- 19 dbm EIRP (<80mW transmit power)
Range
- Up to 500 ft line of sight
Unicast Multicast
- Can connect one transmitter to up to 2 receivers
Noise Rejection
- Can coexist with Wi-Fi and 5GHz cordless phones, and can operate up to 4 sets in same location
Power
Power Input
- USB-C power input
Battery
- Internal 9.5Wh battery (1.5hr run time)
Nominal Power Consumption
- 5 Watts
Environmental
Operating Temperature
- 0~40 deg-C
- 1 x Spark 4K TX
- 1 x Hot Shoe Adapter
- 1 x Ultra Thin HDMI 18in Cable
- 1 x PSU 30W USB-C Power Adapter
- 1 x Quickstart Guide - Spark 4K
