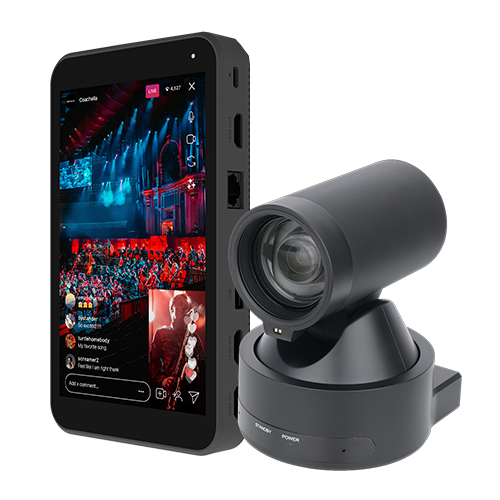

YoloLiv Instream and VertiCam Vertical Video Bundle
YoloLiv Instream and VertiCam Vertical Video Bundle
Instream is vertical streaming made easy. The first and only all-in-one multi-cam vertical livestreaming studio. YoloLiv Instream is the industry’s first vertical all-in-one encoder, switcher, monitor, and streamer. Create better content for Instagram, TikTok, and more. Add multi-cam, graphic overlays, picture-in-picture, chroma key, transition effects, lower thirds, countdown timer and more to elevate your vertical livestream to the next level.
Instream Features:
VertiCam is the industry’s first vertical PTZ camera for vertical content creation & live streaming. Store and recall 255 specific pan/tilt/zoom positions quickly with your cameras. 72.5° Wide-angle Lens With 12x Optical Zoom.
VertiCam Features
Instream is vertical streaming made easy. The first and only all-in-one multi-cam vertical livestreaming studio. YoloLiv Instream is the industry’s first vertical all-in-one encoder, switcher, monitor, and streamer. Create better content for Instagram, TikTok, and more. Add multi-cam, graphic overlays, picture-in-picture, chroma key, transition effects, lower thirds, countdown timer and more to elevate your vertical livestream to the next level.
Instream Features:
- All-in-One: Encoder, Switcher, Recorder, and Monitor
- Multiple Capture Sources: 2 HDMI + 1 USB In + SD Card
- Running on Android OS: No computer or OBS required
- 3 Ways to Connect: Wifi, 4G LTE, Ethernet
- Total Touch Screen Control: Operate intuitively as your smartphone
- Internal Battery: Lasts for 3+ hours
- Portable and Mobile: Compact size, fits into backpack
- Live On The Go: Entire mobile livestram studio, in one box
VertiCam is the industry’s first vertical PTZ camera for vertical content creation & live streaming. Store and recall 255 specific pan/tilt/zoom positions quickly with your cameras. 72.5° Wide-angle Lens With 12x Optical Zoom.
VertiCam Features
- 12x Optical Zoom
- 4:2:2 10 bit PRO color mode
- 1/2.8-inch HD CMOS sensor
- 2.07 million effective pixels
- 1920x1080 images
- Camera Noise Reduction
- Backlight Compensation
- Stunning low light performance
- Perfect for one-man show. No additional crew needed
- Support a wide rotation range of ±170° horizontally and of 30°~+90° vertically.
- Control the camera remotely for free angle rotation through the RS232 serial port.
INSTREAM
Dimensions & Weight
Height: 25mm
Width: 112.5mm
Length: 188mm
Weight: 600g
Ports
HDMI IN: Video input
HDMI IN: Video input
USB-C: Video input (Please note in some USB webcams, only video can be captured.)
1/4" Screw Hole: Mount Instream Mini with camera
ETHERNET PORT: Connect to Internet by Ethernet cable
HDMI OUT: Video out to monitor or computer for Zoom/Skype meetings
USB-C: Only for charging
AUDIO OUT: Connect with 3.5mm monitor headphones
LINE IN: Stereo, connect to electric guitar or synthesizer
MIC IN: Mono, connect to microphone for recording
SD Card Slot: Used for recording and loading graphics
SIM Card Slot: Insert SIM card to connect to Internet
Power Button: Turn on and turn off
Encoded Format
Video Encoded Format：H.264
Audio Encoded Format：（AAC)44.1K 2Ch 16bit
Video Recorded format：MP4
Audio Input Format：32KHZ/44.1KHZ/48KHZ :16bit
Live Broadcast Resolution：480P/720P/1080P
Frame Rate: Up to 60 fps
Video Storage
Storage Card Type：SD Card
Storage Card Type：SD Card
File System for SD Card: FAT32, exFAT, NTFS
Network Connection
WiFi: 2.4G/5G
4G Network: Global standard
SIM Card Size: Nano card
CPU
QualComm Snapdragon 845, 8-core Processor
Power
Power Interface：Type C, Quick Charge 3.0
Battery Capacity：10000mAh
Input power rating: DC5V 3A,9V 2A,12V 1.5A
Power Consumption: ＜18W
Transmission
Network Protocol：RTMP/RTMPS
Working Environment
Operating Temperature：0℃-40℃
Operating Humidity: 15%-85%, No Condensation
VERTICAM
Camera
Optical Zoom: 12x
Video System: 1080P60, 1080P50, 1080P30, 1080P25, 720P60, 720P50
Sensor: 1/2.8-inch, CMOS, Effective Pixel: 2.07M
Scanning Mode: Progressive
Lens: 12x, f=3.5mm ~ 42.3mm, F1.8 ~ F2.8
Digital Zoom: 16x
Minimum Illumination: 0.5 Lux @ (F1.8, AGC ON)
Shutter: 1/30s ~ 1/10000s
White Balance: Auto, Indoor, Outdoor, One Push, Manual, VAR
Backlight Compensation: Support
Digital Noise Reduction: 2D&3D Digital Noise Reduction
SNR: ≥55dB
Horizontal FOV: 72.5° ~ 6.9°
Vertical FOV: 44.8° ~ 3.9°
Pan Angle: ±170°
Tilt Angle: -25° ~ +30°
Pan Speed: 1.61° ~ 75.56°/s
Tilt Speed: 0.44° ~ 15°/s
Image Flip: Support
Image Freeze: Support
Preset Position: 255
Preset Accuracy: 0.1°
MIC Pick-up Distance: 6m
USB Features
Operate System: Windows 7, Windows 8, Windows 10, Mac OS X, Linux, Android
Color System/Compression: MJPG/YUY2
Video Format: YUY2 (ISOC): 1080P@60fps (max.)
MJPEG: 1080P@60fps (max.)
USB Audio: Support
USB Video Communication Protocol: UVC 1.1
UVC PTZ: Support
Interfaces
USB Interface: 1 x USB3.0: Type-B
HDMI Interface: 1 x HDMI 1.4b
Audio Interface: 1 x LINE IN, 3.5mm
Communication Interface: 1 x RS232 IN: 8pin min DIN; Max. Distance: 30m; Protocol: VISCA/Pelco-D/Pelco-P
1 x RS232 OUT: 8pin min DIN; Max. Distance: 30m; Protocol: VISCA network use only
Power Jack: JEITA type (DC IN 12V)
General
Input Voltage: DC 12V
Input Current: 1.5A (max.)
Operating Temperature: -10°C ~ 40°C
Storage Temperature: -40°C ~ 60°C
Power Consumption: 12W (max.)
Dimension: 128mm x 118mm x 157.9mm
Net Weight: 1.0Kg
Dimensions & Weight
Height: 25mm
Width: 112.5mm
Length: 188mm
Weight: 600g
Ports
HDMI IN: Video input
HDMI IN: Video input
USB-C: Video input (Please note in some USB webcams, only video can be captured.)
1/4" Screw Hole: Mount Instream Mini with camera
ETHERNET PORT: Connect to Internet by Ethernet cable
HDMI OUT: Video out to monitor or computer for Zoom/Skype meetings
USB-C: Only for charging
AUDIO OUT: Connect with 3.5mm monitor headphones
LINE IN: Stereo, connect to electric guitar or synthesizer
MIC IN: Mono, connect to microphone for recording
SD Card Slot: Used for recording and loading graphics
SIM Card Slot: Insert SIM card to connect to Internet
Power Button: Turn on and turn off
Encoded Format
Video Encoded Format：H.264
Audio Encoded Format：（AAC)44.1K 2Ch 16bit
Video Recorded format：MP4
Audio Input Format：32KHZ/44.1KHZ/48KHZ :16bit
Live Broadcast Resolution：480P/720P/1080P
Frame Rate: Up to 60 fps
Video Storage
Storage Card Type：SD Card
Storage Card Type：SD Card
File System for SD Card: FAT32, exFAT, NTFS
Network Connection
WiFi: 2.4G/5G
4G Network: Global standard
SIM Card Size: Nano card
CPU
QualComm Snapdragon 845, 8-core Processor
Power
Power Interface：Type C, Quick Charge 3.0
Battery Capacity：10000mAh
Input power rating: DC5V 3A,9V 2A,12V 1.5A
Power Consumption: ＜18W
Transmission
Network Protocol：RTMP/RTMPS
Working Environment
Operating Temperature：0℃-40℃
Operating Humidity: 15%-85%, No Condensation
VERTICAM
Camera
Optical Zoom: 12x
Video System: 1080P60, 1080P50, 1080P30, 1080P25, 720P60, 720P50
Sensor: 1/2.8-inch, CMOS, Effective Pixel: 2.07M
Scanning Mode: Progressive
Lens: 12x, f=3.5mm ~ 42.3mm, F1.8 ~ F2.8
Digital Zoom: 16x
Minimum Illumination: 0.5 Lux @ (F1.8, AGC ON)
Shutter: 1/30s ~ 1/10000s
White Balance: Auto, Indoor, Outdoor, One Push, Manual, VAR
Backlight Compensation: Support
Digital Noise Reduction: 2D&3D Digital Noise Reduction
SNR: ≥55dB
Horizontal FOV: 72.5° ~ 6.9°
Vertical FOV: 44.8° ~ 3.9°
Pan Angle: ±170°
Tilt Angle: -25° ~ +30°
Pan Speed: 1.61° ~ 75.56°/s
Tilt Speed: 0.44° ~ 15°/s
Image Flip: Support
Image Freeze: Support
Preset Position: 255
Preset Accuracy: 0.1°
MIC Pick-up Distance: 6m
USB Features
Operate System: Windows 7, Windows 8, Windows 10, Mac OS X, Linux, Android
Color System/Compression: MJPG/YUY2
Video Format: YUY2 (ISOC): 1080P@60fps (max.)
MJPEG: 1080P@60fps (max.)
USB Audio: Support
USB Video Communication Protocol: UVC 1.1
UVC PTZ: Support
Interfaces
USB Interface: 1 x USB3.0: Type-B
HDMI Interface: 1 x HDMI 1.4b
Audio Interface: 1 x LINE IN, 3.5mm
Communication Interface: 1 x RS232 IN: 8pin min DIN; Max. Distance: 30m; Protocol: VISCA/Pelco-D/Pelco-P
1 x RS232 OUT: 8pin min DIN; Max. Distance: 30m; Protocol: VISCA network use only
Power Jack: JEITA type (DC IN 12V)
General
Input Voltage: DC 12V
Input Current: 1.5A (max.)
Operating Temperature: -10°C ~ 40°C
Storage Temperature: -40°C ~ 60°C
Power Consumption: 12W (max.)
Dimension: 128mm x 118mm x 157.9mm
Net Weight: 1.0Kg
YoloLiv Instream
YoloLiv VertiCam
YoloLiv VertiCam
- 1 USB Charge Cable
- 1 Remoter
- 1 Adopotor
- 1 HDMI
- 1 Manuel
