YoloLiv YoloBox Smart Multi-Camera Live Streaming Studio, Encoder Switcher Recorder Monitor, All-In-One


YoloLiv YoloBox Smart Multi-Camera Live Streaming Studio, Encoder Switcher Recorder Monitor All in One
Small in Size, Big in Pro Capabilities .
The industry’s first REALLY All-IN-ONE live production system that doesn’t require anything external. It’s simple, portable, reliable and affordable.
  • Encoder, switcher, recorder, monitor, in One

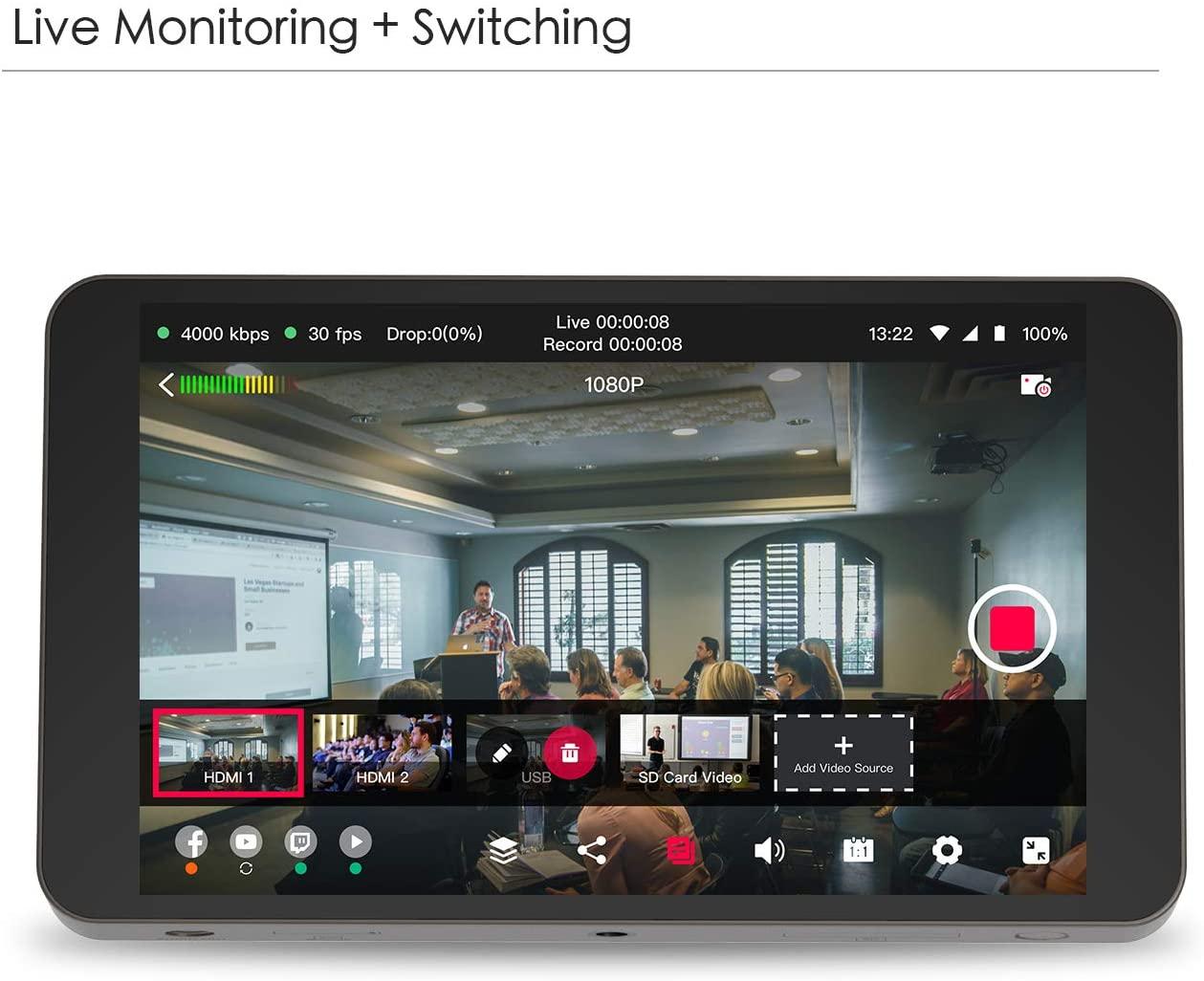

  • Live switch up to 6 video sources
  • No computer/desk workstation required
  • Great ease to operate, touchscreen control
  • Super portable, fit into your pocket
  • Support 4G LTE & built-in battery - Live On the Go


Premium Features are FREE

Additional software features will be continuously added by our dedicated engineering team.

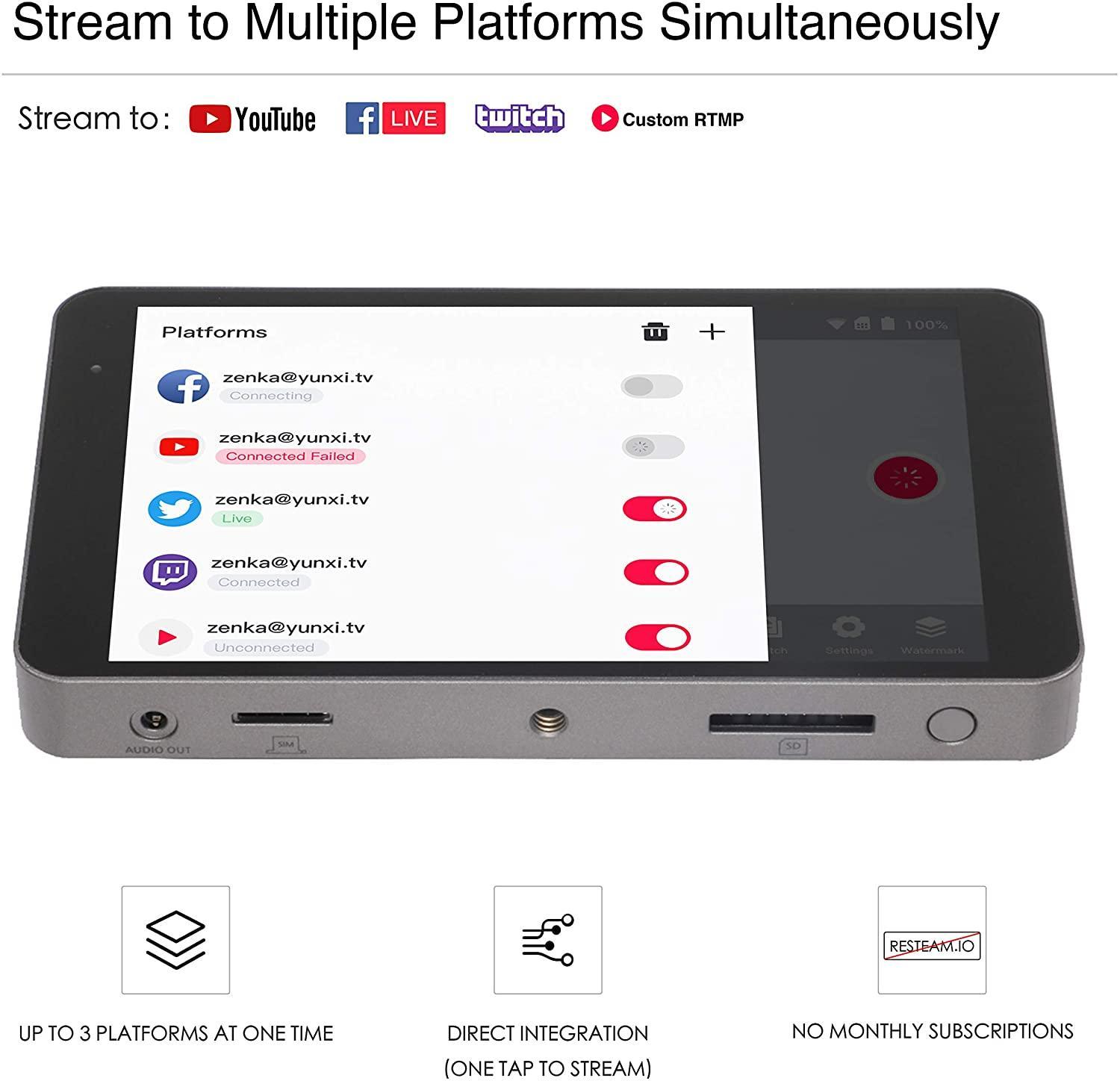

  • Stream Simultaneously to Multiple Destinations
    Stream to Facebook, YouTube, and any other RTMP(S) websites at the same time to get more views
  • Add Video Sources From Local SD Card
    Roll in pre-recorded video for intro, countdown, B-rolls or special segments
    Load PDF as an Extra Source Locally
    Enhance the storytelling by one extra source


Add Overlays For a Pro Look

Now you can even have Side-By-Side and Split-View directly on YoloBox.

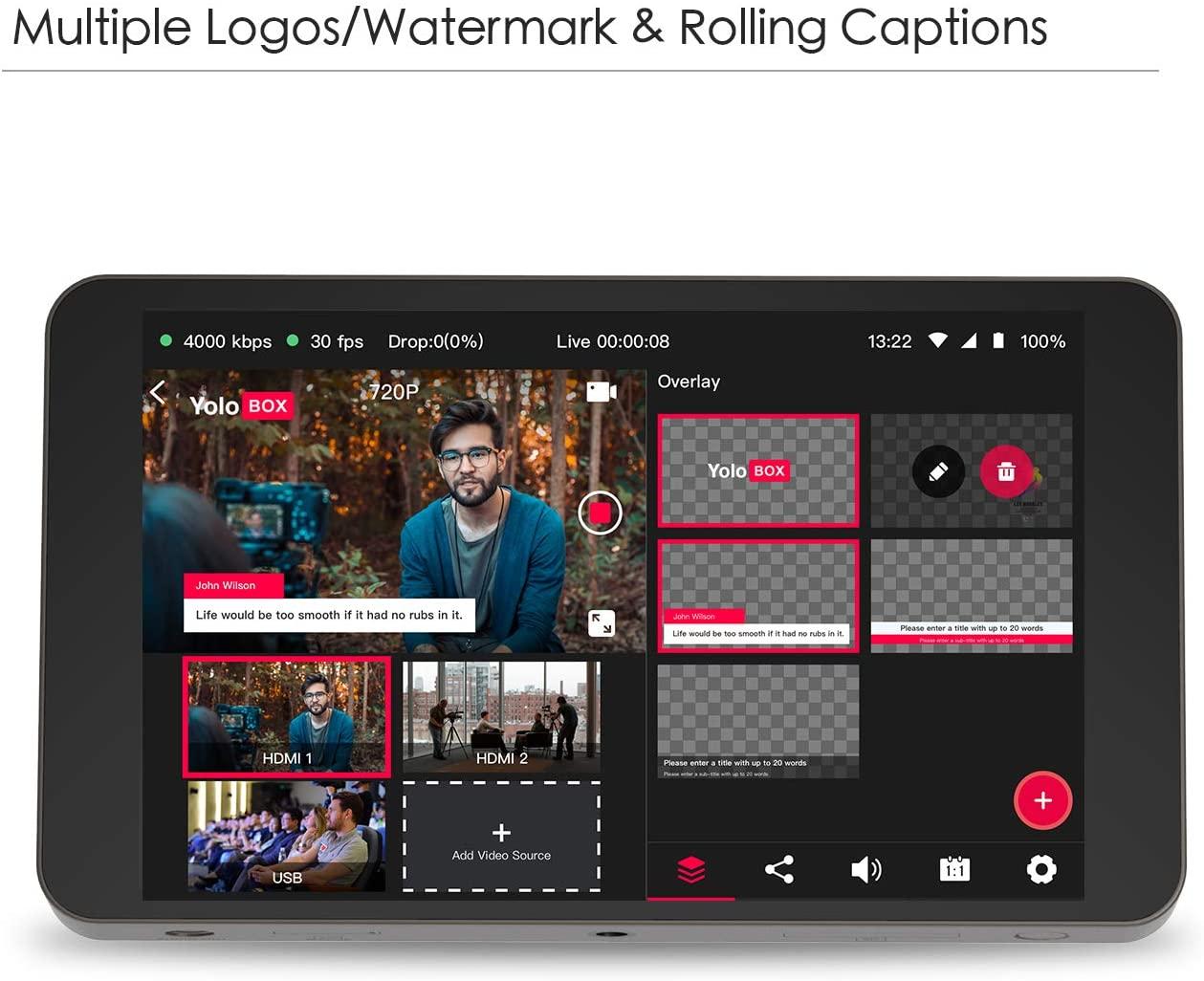

  • Brand Your Live Stream By Adding Logos/Watermarks/Rolling Captions
    An even more professional look with customized PiP options including Interview Mode
  • Feature Comment Overlays to the Stream
    Engage with your audience in real time

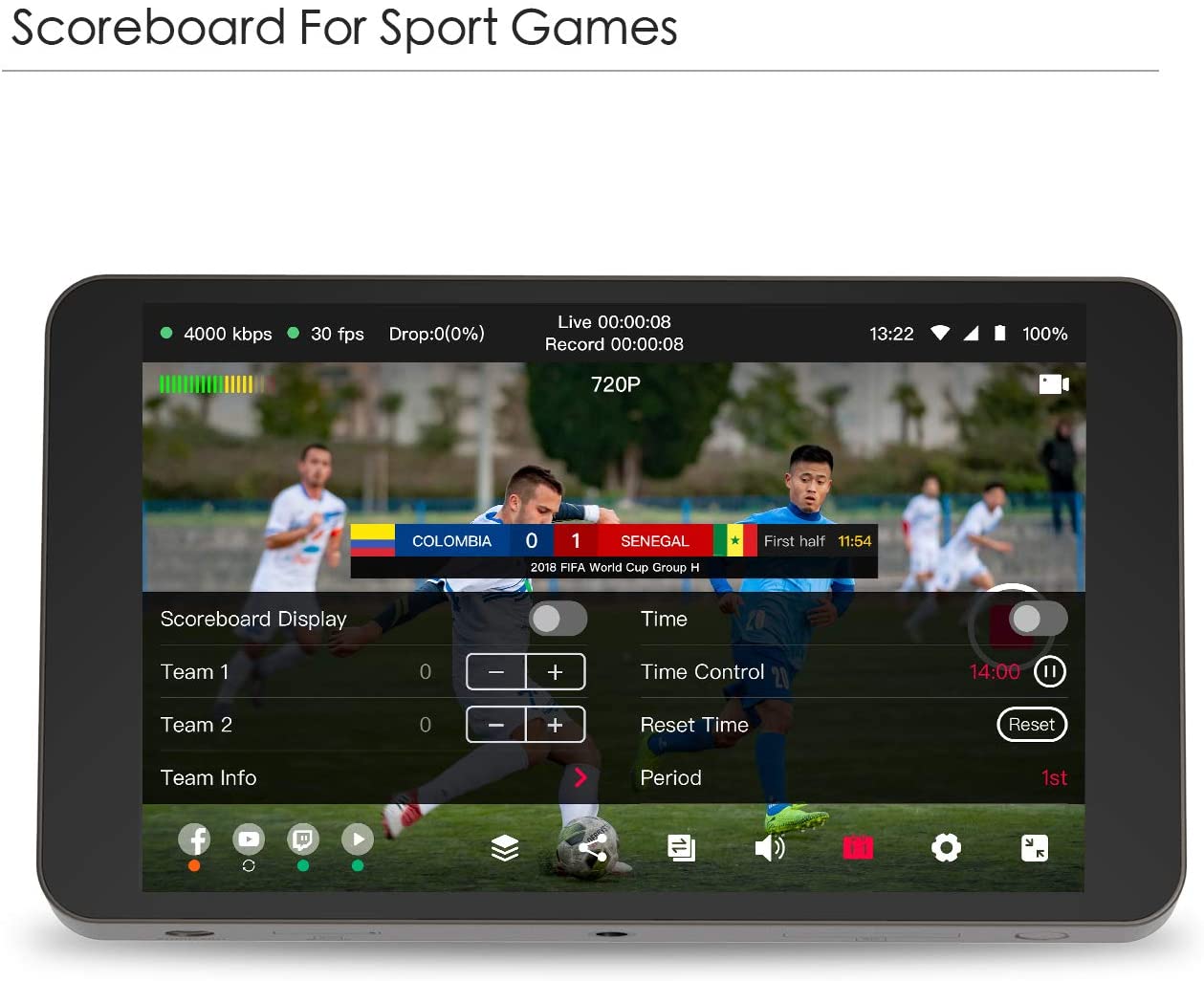

  • Add Customizable Scoreboard
    Display real-time controlled scoreboard to make your game look professional
  • Add and Edit on the Built-In Lower-Thirds Templates
    Be it an intro of the speaker or Call-To-Action messages to drive viewers’ actions

3 Simple Steps

YoloBox helps you start live broadcasting events with unprecedented scale and effectiveness

    Connect to the internet via Ethernet/WiFi/4G, sign up your YoloLiv account, then plug your camera into YoloBox, you are way to go.
    YoloBox can acquire video from numerous sources including cameras, GoPro, drone, local library, etc.
    Boost your viewership in cross-channels like Facebook, YouTube, Twitch, or any other RTMP(s) supported websites.

YoloLiv provides you an innovative experience of livestreaming
Yolobox is an intelligent solution which can be used in many diversified livestreaming activities, you can start your livestream from anywhere to anytime.

Whatever you live stream for, YoloBox will improve your overall production. Take a look at what makes YoloBox a fit for your use case.

With YoloBox you could livestream and record a sermon all yourself, no profesional team required, without the need for a big budget. Let YoloBox take your worship service beyond the bounds of the building to reach out more with your community.

Whether you’re working on a project for a corporation, organization or wedding, YoloLiv can make your livestream events easier by providing integrated live product. With reduced costs and setup times, YoloLiv allows you to add a new dimension to your business.

Livestreaming local government meetings ensures that all members of a community are able to "attend," whether they can be physically present or not.

From high school games to performance training to sports evaluation, YoloBox is a must-have in the world of sports. And with multiple angles and a multi-view view being streamed live, both the fans and players will be asking you to see the highlights.

Now your school can host live, multi-angle livestreams of the classroom, pep rallies, special performances, club activities – whatever’s going on that week. And at the center of it all is YoloBox.

Take corporate events to the next level by streaming quarterly meetings from multiple angles and with minimal effort. YoloBox makes it easy for your company to create live-switched, multi-angle video from almost anywhere.

What else you can do with YoloBox
  • Real Estate
  • Cooking
  • Marketing
  • Sales
  • Nonprofit
  • Events

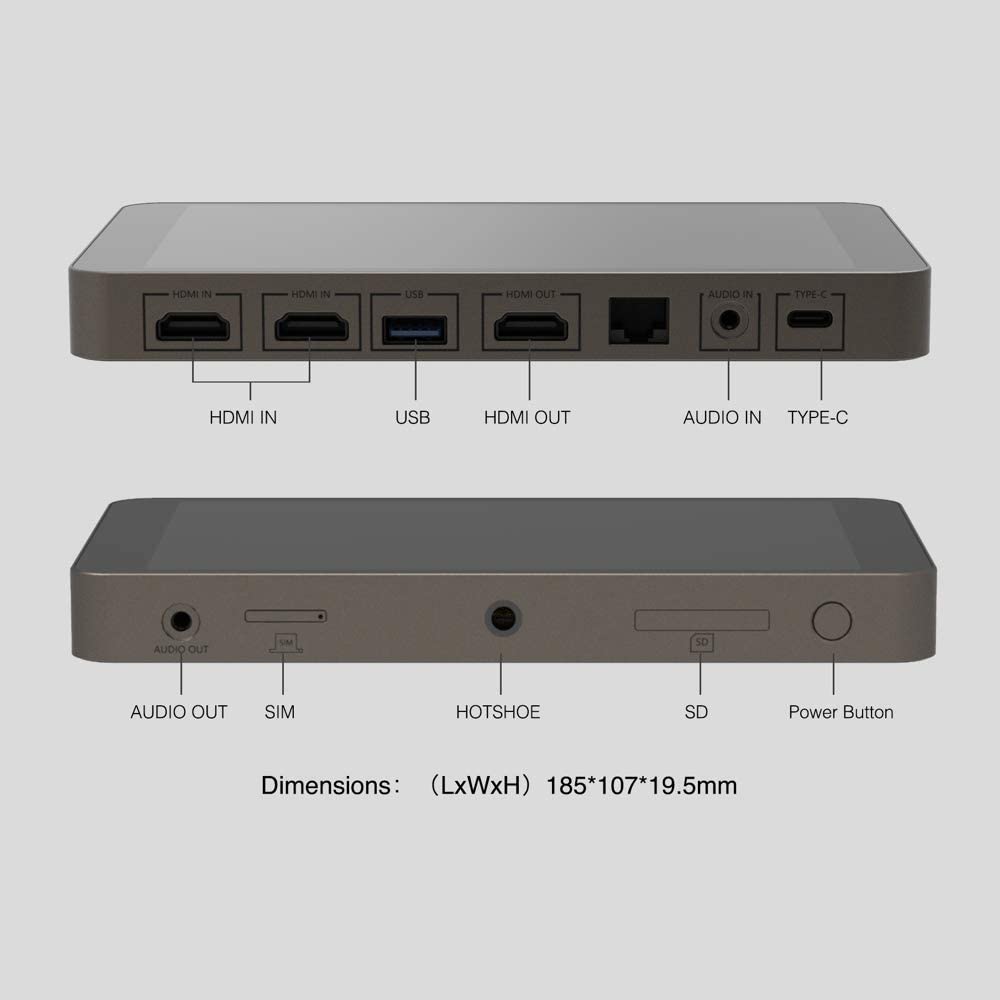

  • HDMI IN: Video input
  • (Please note in some usb webcams, only video can be captured.)
  • HDMI OUT: Video output
  • Ethernet: Connect to Internet by Ethernet cable
  • AUDIO IN: Connect with lavaliar microphone or mixer
  • TYPE-C: Power connector
  • AUDIO OUT: Connect with headphone for sound monitor
  • SIM Card Slot: Insert SIM Card to connect to Internet
  • 1/4" Screw Hole: Mount YoloBox with camera
  • Insert SD card as video sources (video & PDF) & for recording
  • Power Button: Turn on and turn off

Dimensions and Weight

  • Length:185mm
  • Width:107mm
  • Height:19.5mm
  • Weight:480g

Encoded Format

  • Video Encoded Format:H.264
  • Audio Encoded Format: AAC (48k)
  • Video Recorded format: MP4
  • Audio Input Format: 32kHz, 44.1kHz, 48kHz, 16-bit
  • Video Input Format: 1080i/ 720p/ 1080p
  • Live Broadcast Resolution: 480P/720P/1080P

Video Storage

  • Storage Card Type: SD Card
  • Storage Card Capacity: Expanded to 128G


Network Connection

  • WiFi: 2.4G/5G, Support 802.11a/b/g/n/ac
  • 4G Network Countries & Frequency Band
    For US/Canada/Mexico Users:
    For Non-US/Canada/Mexico Users:
  • SIM Card Size: Standard SIM Card


  • Power Interface: Type C, Quick Charge 3.0
  • Battery Capacity: 3.7V/5700mAh


  • Network Protocol: RTMP(S)


Working Environment

  • Operating Temperature:-10℃-40℃
  • Storage Temperature: 5℃-40℃
  • YoloBox
  • Instruction Book
  • Tripod mount
  • Power Adapter
  • 2x HDMI Cables
  • USB Modem
  • Carrying case
