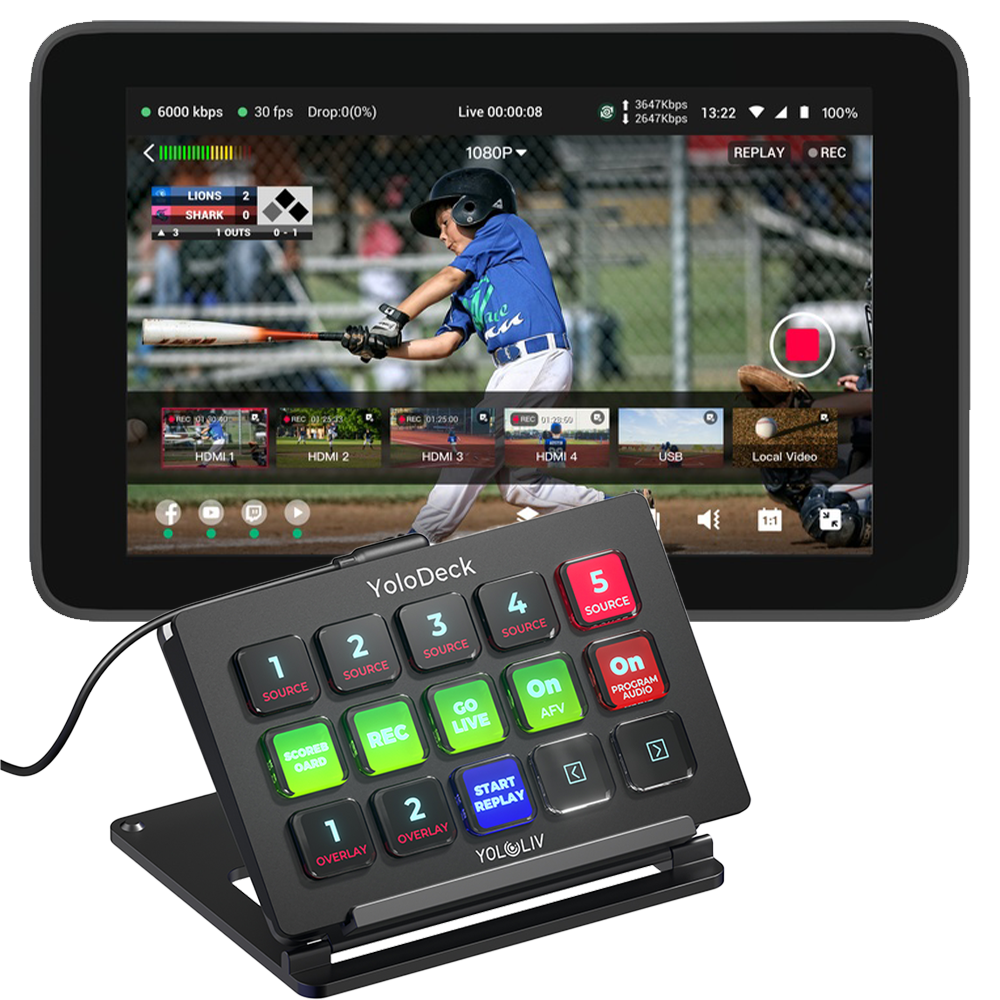

YoloLiv YoloBox Ultra and YoloDeck Bundle
YoloLiv YoloBox Ultra and YoloDeck Streaming Bundle is your go-to streaming controller companion for YoloBox Ultra. Add your favorite features and tools for instant, seamless control.
YoloBox Ultra:
Elevate your live stream production with the YoloBox Ultra, a Portable Multi-Camera Live Streaming Studio that combines an encoder, switcher, monitor, and recorder in one device. It supports 4K streaming, ISO recording of all inputs, and horizontal and vertical streaming. Stream to platforms like Facebook, YouTube, Twitch, Instagram, and TikTok. Enhanced features include 4 HDMI inputs, 2 USB inputs, a Qualcomm 865 processor, H.265 encoding, a 20,000mAh battery, and an 8" LCD touchscreen. The YoloLiv YoloBox Ultra and YoloDeck Streaming Bundle also offers customizable graphics, chroma key, instant replay, multi-views, audio mixing, and more, providing a comprehensive tool for professional live streaming.
YoloLiv YoloDeck Control Panel with 15 Macro Keys:
15 LCD keys poised to trigger unlimited actions. One-touch tactile operation lets you start/end live stream, start recording, switch video source, add graphics, adjust audio, launch instant replay, adjust scoreboard and so much more, while visual feedback confirms your every command.
Dimensions & Weight
Height: 27.1 mm
Width: 140 mm
Length: 219 mm
Weight: ≈ 981 g
Ports
- HDMI IN 1: Video input
- HDMI IN 2: Video input
- HDMI IN 3: Video input
- HDMI IN 4: Video input
- HDMI OUT: Video out to monitor or computer for Zoom/Skype meetings
- ETHERNET PORT: Connect to Internet by Ethernet cable
- USB Type-A 3.0: Video input( Support: webcam; portable storage device ; wireless usb dongle.)
- USB Type-A 3.0: Video input ( Support: webcam; portable storage device ; wireless usb dongle.)
- USB Type-C: Only for charging
- LINE IN(3.5mm): Stereo, connect to electric guitar or synthesizer
- MIC IN(3.5mm): Mono, connect to microphone for recording
- AUDIO OUT(3.5mm): Connect with monitor headphones
- USB Type-C: A fully functional interface supports input
- 1/4'' Screw Hole: Mount Ultra with camera
- Nano-SIM Card Holder: Insert SIM card to connect to Internet
- SD Card Holder: Used for recording and loading graphics
- Power Button: Turn on and turn off
Input Power
DC5V/9V/, 12V/15V
Power Consumption
45W
Power Supply
USB Type-C
USB Rated Output
USB-A:5V/1A
Battery Capacity
6800mAh
Monitor Screen Size
8inch LCD Resolution: 1200*1920; Brightness: 650nits; Contrast ratio(1500:1), Viewing Angle (full viewing Angle), NTSC 80%
Local Video Inputs
HDMI,USB-A
Video Over Ethernet
RTMP/RTMPS/SRT
Video Input Connectors
HDMI,USB-A,RJ-45,USB Type-C
Video Input Aspect Ratios
16:9; 4:3; 1:1
Video Input Deinterlacing
No
Live Broadcast Video input Resolution
480p/720p/1080p(up to 60fps)/4k 30fps
Video Encoded Format
H.264 H.265
Video processing Bitrate control
CQ, VBR, CBR
Hardware-Accelerated Video Encoding
Optional
Video Output Signal Types
FLV-RTMP,HDMI,UVC
Video Output Connectors
HDMI OUT, USB-C
Video Output Streaming protocols
RTMP, RTMPS, MJPEG, SRT
Live Broadcast Video Output Resolution
480p/720p/1080p(up to 60fps)/4k 30fps
Analog Audio Input Connectors
Line In, Mic In, 3.5mm
Digital Audio Inputs
USB, HDMI, RTMP(From internet), Local video(From SD card)
Digital Audio Input Connectors
USB-A, HDMI, USB-C
Audio Input Mute
Yes
Audio Input Format
32KHZ/44.1KHZ/48KHZ :16bit
Audio Encoded Format
(AAC)44.1K/48KHZ 2Ch 16bit
Analog Audio Output
3.5mm headphone jack
Digital Audio Outputs
HDMI audio (Embedded), USB Audio (Embedded)
Record Formats
MP4
Wi-Fi
2.4G/ 5G（Support WiFi6）
4G Network
4G Network Countries & Frequency Band For Users: [Variant for North America（US/Canada/Mexico)]
B2/B4/B5/B7/B12/B13/B14/B17/B25/B26/B41/B66/B71
Notes: Mexico B4 For Non-US/Canada/Mexico
Users: (EU: Variant for EMEA/India/Korea/Taiwan/South
Asia/Latin/America/Australia/New Zealand)
Users: B1/B3/B7/(B8) Notes: Thailand B1/B3
Please note that the certification of Yolobox Mini is in line with the mainstream open 4G band requirements of operators in this country or region. For details, please refer to the approval report of this country or region.
USB Communication Standard
USB 2.0 and USB 3.0
Ethernet Data Rate
10/100/1000M, half/full duplex with autodetect
SIM Card Size
Nano-SIM Card
SDCard format
FAT32(Under 128G), NTFS, EX-FAT
Operating Temperature
0℃-40℃
Operating Humidity
15%-85%, No Condensation
YoloDeck:
- Height: 132 mm
- Width: 91 mm
- Length: 20 mm
- Interface: USB-C
- Input Voltage: 5V
- Working Power Consumption: 3W
- Standby Power Consumption: 0.75W
- Hardware Keyboard Numbers: 15
- Screen Luminance: 800
- Screen Contrast Ratio: 450
- Keyboard Icon Resolution 126 * 126
- Startup Logo Resolution: 800 * 480
- Keyboard bare weight: 188g
- Compatible with YoloBox Ultra
- YoloBox Ultra
- USB Charging Cable (2x)
- Hotshoe Mount
- User Manual
- SIM Card Eject Pin
- YoloDeck
- USBC Cable
- User manual
- Adjustable Stand
