PTZOptics 4K Action Bundle

(0)No Reviews yet
SKU: PT12X4KACTIONSJOY

PTZOptics 4K Action Bundle

Back

Capture All the Action

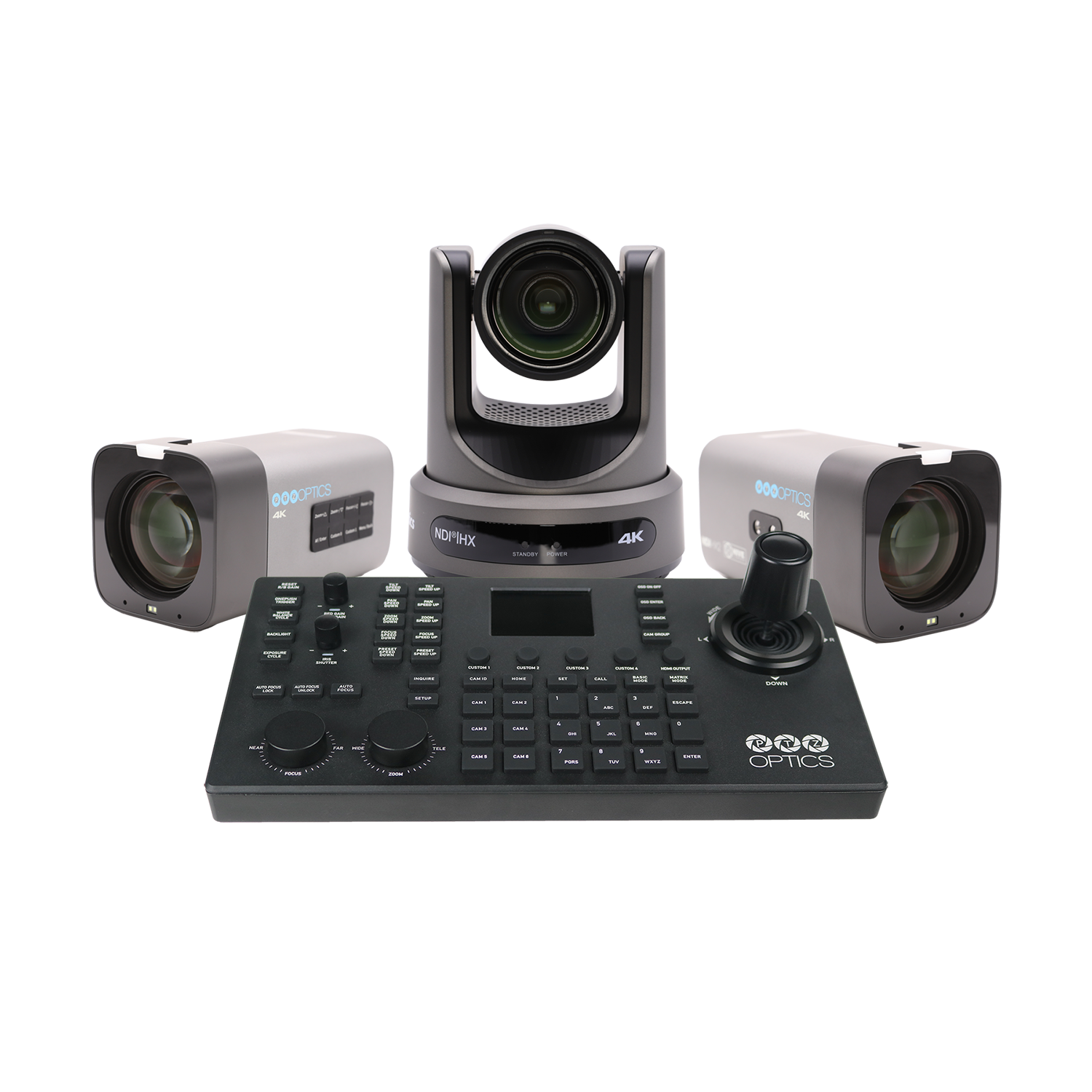

Head out to the field or arena with this sports-friendly setup designed by the PTZOptics team to optimize your coverage of the game. The PTZOptics Action Bundle comes with one Move 4K 12X PTZ camera, two Studio 4K 12X fixed cameras and a SuperJoy controller.

Connect Everywhere
Every Move 4K camera features SDI, HDMI, USB, and IP output, and comes native with NDI® HX3 for unparalleled performance and versatility. The Move 4K offers built-in auto-tracking capabilities – no need to run software on another computer and no camera operator required!

The Power of PTZ
Robotically controlled PTZ (pan-tilt-zoom) cameras give you the advantage of being able to manage your camera’s movements without a dedicated camera operator. Cinematic techniques are placed right at your fingertips to make sure your viewers catch all the action. With the included Move 4K, you’ll have the flexibility to cover the entire field, court or diamond with studio-quality camera controls.

Easy Control
In addition to the Move 4K’s auto-tracking features, users also have access to PTZOptics’ latest Web UI – updated to provide everything you need in one simple menu. Nearly every feature in the Web UI has a tutorial function, perfect for novice producers navigating the settings for the first time.

Fixed Camera Creativity
Never miss a scoring shot with your Studio 4K fixed cameras capturing the action at each goal line, net or basket. The power of 12K optical zoom helps you capture the up-close action and player reactions. The Studio 4K provides crystal-clear 4K resolution, 12X or 20X optical zoom and conveniently Hive-Linked™ to our easy-to-use online platform, Hive Studio, delivering future-ready connectivity and control from anywhere. The Studio 4K features SDI, HDMI, USB, and IP output and comes native with NDI® HX3.

Controller at Your Command
The SuperJoy joystick controller offers an intuitive, tactile interface, simplifying and streamlining even the most complex production setups. The SuperJoy’s HDMI video output provides a 1080p video preview for any camera connected to the SuperJoy that has an RTSP video feed available for use. This HDMI video output is ideal for viewing cameras over a local area network. In this way, a SuperJoy controller can be set up anywhere on a network to gain PTZ camera controls with a low-latency, live video preview.

Hive Studio and the Hive-Linked™ Advantage
PTZOptics Hive Studio revolutionizes video production by merging professional-grade camera control with real-time recording. This unified platform allows for seamless connection, control, and creation from anywhere, and allows for seamless integration into various video production setups, connecting directly to a live production switcher, streaming over a network, or recording through an SDI interface. All PTZOptics 4K cameras are Hive-Linked (now in beta!), providing instant connection to Hive Studio.

Unrivaled Warranties
With robust warranties included standard on every product, you can trust PTZOptics solutions to deliver high performance from day one, and for many years to follow. PTZOptics cameras come with a 5-year limited parts and labor warranty, and our joysticks come with a 2-year limited parts and labor warranty. PTZOptics stands by our promise to protect your investment by providing repairs or replacement products for the duration of your warranty

Why Action Bundles?

  • Easy Setup
  • PoE+
  • Stunning 4K Resolution
  • Seamless Integration
  • Lifetime Support
  • Best-in-Class Warranties
  • Up to 4K @ 60 FPS Resolution
  • USB 2.0 (Type A)
  • PoE+
  • NDI® HX3 Native**
  • Auto-Tracking
  • Serial Control (RS-232/RS-485)
  • SRT
  • RTSP/RTMP(S)
  • 3.5mm Audio Embedding Connection
  • Built-In Tally Light
  • Joystick Cabling: RS-232, RS-485, RS-422, RJ-45
  • Joystick Multiple Control Types: IP AND Serial (simultaneous connection)
  • Joystick HDMI Output
Back

Move 4K Camera

Image Sensor & Lens

Optical Zoom

  • 12x

Video Sensor and Frame Rate

  • HDMI: 3840x2160p-60/59.94/50/30/29.97/25, 1920x1080p60/59.94/50/30/29.97/25, 1920x1080i-60/59.94/50, 1280x720p-60/59.94
  • SDI: 1920x1080p-60/59.94/50/30/29.97/25,1920x1080i-60/59.94/50, 1280x720p-60/59.94

Digital Zoom

  • Off (3840x2160), 2X (1920x1080), 3X (1280x720), 4X (960x540), 8X (480x270), 16X (256x144)

Field of View

  • 12x: Horizontal: 6.9° (tele) ~ 72.5° (wide), Vertical: 3.9° (tele) ~ 44.8° (wide)
  • 20x: Horizontal: 3.5° (tele) ~ 60.7° (wide), Vertical: 1.9° (tele) ~ 34.1° (wide)

Min. Lux

  • 0.5 Lux @ (F1.8, AGC ON)

Shutter

  • 1/30s ~ 1/10000s


Pan/Tilt Movement

Pan Speed

  • 1.7° ~ 100°/s

Tilt Movement

  • +90° to -30

Tilt Speed

  • 1.7° ~ 69.9°

Presets

  • 255 Presets

Video Tracking

  • Supported

Image Flip, Mirror and Freeze

  • Supported


Power Options
Power Supply

  • DC 12V / PoE+ (802.3at)

Input Power

  • 18W (Max)


Physical Specifications
Material

  • Aluminum, Plastic

Color

  • Gray

Dimensions (W x D x H)

  • 5.57 W x 5.94 x 7.91 in., 168.4 x 141.5 x 164.5 mm

Weight

  • 3.25 lbs (1.47 kg)

Working Environment

  • Indoor

Operating Temperature

  • 14°F ~ 104°F (-10°C to 40°C)

Storage Temperature

  • -40°F ~ 140°F (-40°C to 60°C)


Rear Board Connectors

HD Video Output

  • 1x RJ45: 10/100/1000M Adaptive Ethernet Port424M standard
  • 1x HDMI: version 2.0
  • 1x USB 2.0: type A
  • 1x 3G-SDI: BNC type, 800mVP-p, 75Ω, Along to SMPTE 424M standard

Audio Interface

  • 1x 3.5mm Line level Input

Communication Interface

  • 1x 8 pin Mini-din RS232 input, Max distance: 98.5ft / 30m, protocol: VISCA / Pelco-D / Pelco-P
  • 1x 8 pin Mini-din RS232 output, Max distance 98.5ft / 30m, protocol: VISCA / Pelco-D / Pelco-P
  • 1x 2 pin Phoenix port, RS485 input / output, Max distance 3,937ft / 1200m, protocol: VISCA / Pelco-D / Pelco-P

Network Interface

  • RJ45: 10/100/1000M Adaptive Ethernet Port, supports PoE

Power Jack

  • JEITA type (DC IN 12V)

Studio 4K Camera

  • Lens
    (12X) 1/2.8 inch, CMOS
    (20X) 1/2.8 inch, CMOS
  • Image Sensor
    (12X & 20X) 8MP, Effective Pixels: 8.4M
  • Digital Zoom 16X
  • Resolution and Frame Rate
    HDMI: 3840x2160p-60/59.94/50/30/29.97/25,
    1920x1080p-60/59.94/50/30/29.97/25,
    1920x1080i-60/59.94/50, 1280x720p-60/59.94
    SDI: 1920x1080p-60/59.94/50/30/29.97/25,
    1920x1080i-60/59.94/50, 1280x720p-60/59.94/50
  • Optical Lens Focal Length (Zoom)
    (12X) f = 4.1mm ~ 49.2mm, F1.8 ~ F2.68
    (20X) f = 4.7mm ~ 94mm, F1.6 ~ F3.6
  • Optical Lens Field of View
    (12X) H 6.9° ~ 72.5° | V 3.9° ~ 44.8°
  • Horizontal & Vertical
    (20X) H 3.5° ~ 60.7° | V 1.9° ~ 34.1°
  • Display Field of View
    (12X) 80°
    (20X) 67.8°
  • Min Lux
    0.5 Lux @ (F1.8, AGC ON)
  • Shutter
    1/30s ~ 1/10000s
  • 255 Presets with Preset Accuracy of 0.1⁰
  • Image Flip Supported
  • Image Mirror Supported
  • Image Freeze Supported

PHYSICAL

  • Material
    Aluminum, Plastic
  • Dimensions (L x W x H)
    5.7” L x 2.99” W x 3.09” H | 145 mm L x 76 mm W x 78.5mm H
  • Weight
    (12X) 1.5 lbs | 0.68kg
    (20X) 1.4 lbs | 0.64kg
  • Working Environment: Indoor
  • Humidity Range: 10% - 80%
  • Operating Temperature - 14°F ~ 104°F (-10°C ~ 40°C )
  • Storage Temperature - -40°F ~ 140°F (-40°C ~ 60°C)

CONNECTIONS

  • HD Video Output
    1x RJ45: 10/100/1000M Adaptive Ethernet Port | NDI HX2 enabled
    1x HDMI: version 2.0
    1x USB: 3.0 Type C
    1x 3G-SDI: BNC type, 800mVP-p, 75Ω, Along to SMPTE 424M
  • Audio Interface
    1x 3.5mm Line level Input
    1x 3.5mm Line level Output
  • Video Formats
    USB
    •YUY2: Max resolution: 1920x1080p@30
    •MJPEG: Max resolution: 3840x2160p@30
    •H.264 AVC & SVC: Max resolution: 3840x2160p@30
    H.265: Max resolution: 3840x2160p@30 ( RSTP/NDI HX2 only)
  • Compression Standards
    H.264 / H.265 / MJPEG / YUY2 (H.265 HEVC via RTSP/NDI HX2 only)
  • UVC Version Supported
    UVC 1.1 ~ 1.5
  • Supported Protocols
    TCP/IP, UDP, HTTP, RTSP, RTMP/RTMPS, ONVIF, NDI HX2, SRT, Multicast, etc.
  • 4x IR Addresses, Max distance 30ft / 9m
  • Power Supply
    JEITA type (DC IN 12V) / PoE (802.3at)
  • Current Consumption: Max 2A
  • Power Consumption: Max. 18W

SuperJoy Joystick Controller

Technical Specifications

  • Connections: RS-232, RS-485, RS-422, RJ-45
  • Control Protocols:VISCA, VISCA over IP, PELCO-D, PELCO-P, Sony, & NDI
  • Max Cameras: 28 cameras total
    (4 groups of 7 channels)
  • Recommended Max Distance:
    RS-232 / RS-422: 50 ft | 15m
    RS-485: 3,937 ft | 1200m
    Ethernet: 328 ft | 100m
  • Baud rate: 1200 ~ 19200 bps

Operation Specifications

  • Power: 6W | 12VDC / PoE (802.3af)
  • (Only use one (1) power source at a time.)
  • Working Temp: 14° F ~ 122° F | -10° C ~ +50° C
  • Working Humidity: 10% ~ 90% (non-condensation)
  • Weight 3.75 lbs | 1.70 kg
  • Dimensions (in.): 13.94 W x 7.05 D x 3.98 H
  • Dimensions (mm.): 370 W x 180 D x 101 H
Back
  • 1x Move 4K 12x PTZ Camera
    • AC Power Supply
    • USB A-A Cable
    • RS232 Cable
    • Quick Start Guide
    • IR Remote
    • 2 AA Batteries
  • 2x Studio 4K 12x PTZ Cameras
    • 12V 2A International Power Supply
    • Lens Cap
    • USB A-C Cable
    • Quick Start Guide
    • IR Remote
    • 2 AAA Batteries
  • 1x SuperJoy Joystick Controller
    • 12V 2A DC International Power Supply
    • RS-232C cable 8ft (2.4m)
    • Quick Start Guide
