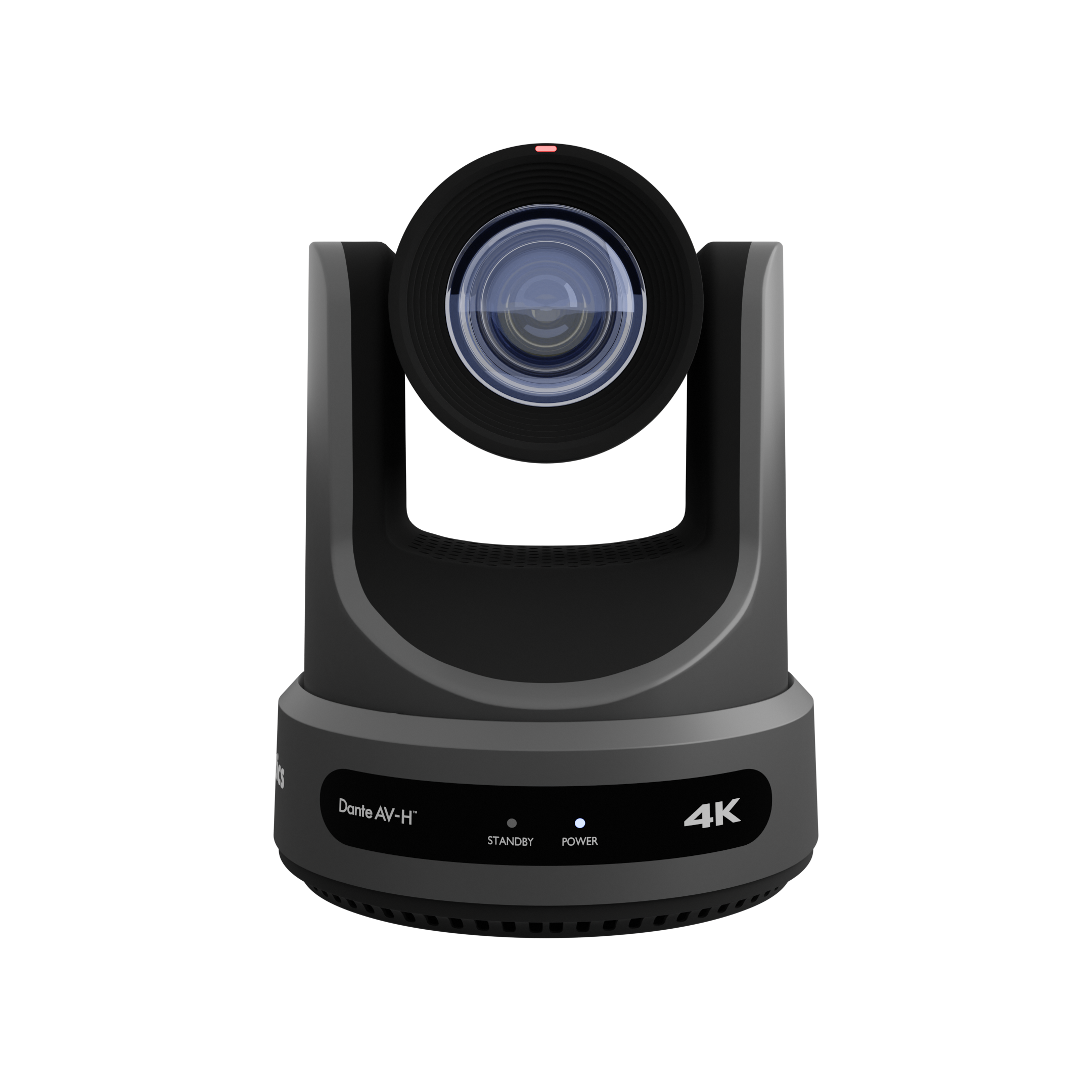

PTZOptics Link 4K 20x PTZ Camera - Gray

SKU: PT20XLINK4KGY
PTZOptics Link 4K 20x PTZ Camera - Gray

Back
The PTZOptics 4K Link offers built-in auto-tracking at 4K at 60fps (1080p at 60fps over SDI) and features Dante AV-H™ and a built-in tally light. Available outputs include SDI, HDMI and USB for unrivaled performance and versatility. Compatible with most video production software, including
OBS, vMix, Wirecast and more.

Features
  • 72.5° (12X) or 60.7° (20X) or 59.2° (30X) horizontal field of view
  • High performance in low light scenarios with Wide Dynamic Range
  • Ultra HD 3840x2160p resolutions up to 60 FPS
  • 3D noise reduction with our latest low noise CMOS sensor
  • Serial (RS232 & RS485) & IP control (LAN/WAN)
  • H.264, H.265, & MJPEG video compression when IP streaming
  • USB 2.0, HDMI 2.0 / 3G-SDI (HDMI & SDI are not simultaneous)
  • PoE+ (Power over Ethernet) or 12VDC power supply
  • Beamforming microphone
  • AI Video based auto tracking
  • Dante AV-H™ (Limited to 1080p60)
  • Built in tally light
  • Photobooth capable
  • 5-year warranty
Back
Image Sensor & Lens

Video Sensor
  • Sony 1/2.5 inch, CMOS, Effective pixels:
Lens Zoom
  • (20x) ) f = 6.25 ~ 125mm, F1.58 ~ F3.95
Resolution and Frame Rate
  • HDMI: 3840x2160p-60/59.94/50/30/29.97/25, 1920x1080p-60/59.94/50/30/29.97/25, 1920x1080i-60/59.94/50,280x720p-60/59.94
  • SDI: 1920x1080p-60/59.94/50/30/29.97/25,
    1920x1080i-60/59.94/50, 1280x720p-60/59.94
Field of View
  • ) H 2.5° ~ 59.2° | V 1.4° ~ 34.6°
Min Lux
  • 0.5 Lux @ (F1.8, AGC ON)
Shutter
  • 1/30s ~ 1/10000s

Pan / Tilt Movement

Pan Movement
  • ±170°
Pan Speed
  • -1.7° ~ 100°/s
Tilt Movement
  • -30° ~ +90°
Tilt Speed
  • 1.7° ~ 69.9°
Presets
  • 255 Presets
Preset Accuracy
  • 0.1⁰
Image Flip, Mirror and Freeze
  • Supported

Electrical Index
Power Supply
  • DC 12V / PoE+ (802.3at)
Current Consumption
  • 2A (Max)

Physical Specifications

Material
  • Aluminum, Plastic
Dimensions (W x D x H)
  • 5.57” W x 6.65” D x 7.91” H / 141.5 W x 169 D x 201 H mm
Weight
  • 3.25 lbs (1.47 kg)
Working Environment
  • Indoor
Operating Temperature
  • -10°C ~ 40°C (14°F ~ 104°F)
Storage Temperature
  • -40°C ~ 60°C (-40°F ~ 140°F)

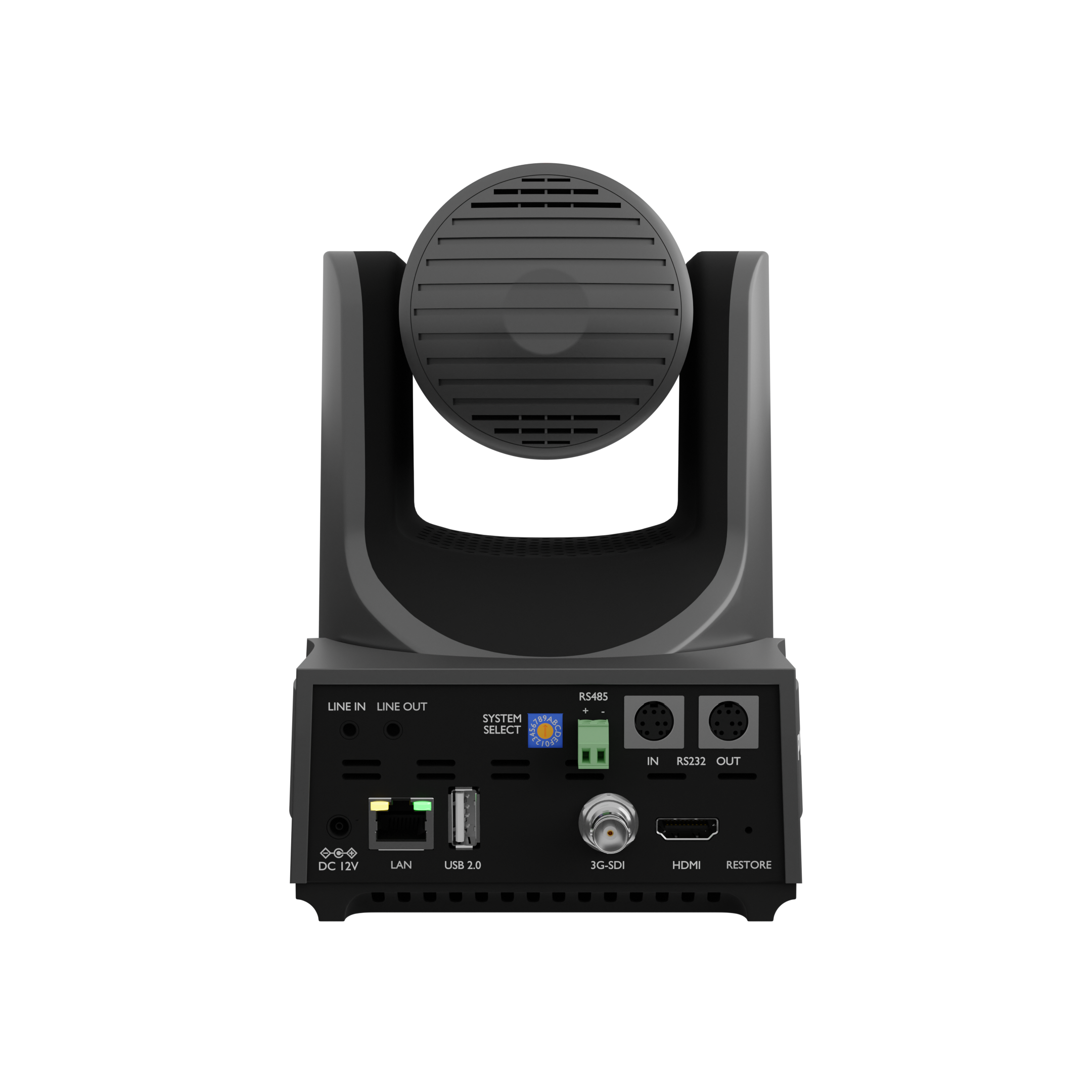

Rear Board Connectors

HD Video Output
  • 1x RJ45: 10/100/1000M Adaptive Ethernet Port
  • 1x HDMI: version 2.0
  • 1x 3G-SDI: BNC type, 800mVP-p, 75Ω, Along to SMPTE 424M,
    standard,
  • 1x USB 2.0 type A
LINE IN
  • Interface 1x 3.5mm Line level Input
Communication Interface
  • 1x 8-pin Mini DIN RS232 Input, Max distance: 98.5ft / 30m,
    Protocol: VISCA / Pelco-D / Pelco-P
  • 1x 8-pin Mini DIN RS232 Output, Max distance: 98.5ft / 30m,
    Protocol: VISCA / Pelco-D / Pelco-P
  • 1x 2-pin Phoenix port RS485 Input / Output, Max distance: 3,937ft
    / 1200m, Protocol: VISCA / Pelco-D / Pelco-P
IR
  • 4x IR Addresses, Max distance 30ft / 9m
Power Jack
  • JEITA type (DC IN 12V)
Back
  • Camera
  • AC Power Supply
  • USB A-A Cable
  • RS232C Cable
  • Quick Start Guide
  • IR Remote
  • 2 AA Batteries
