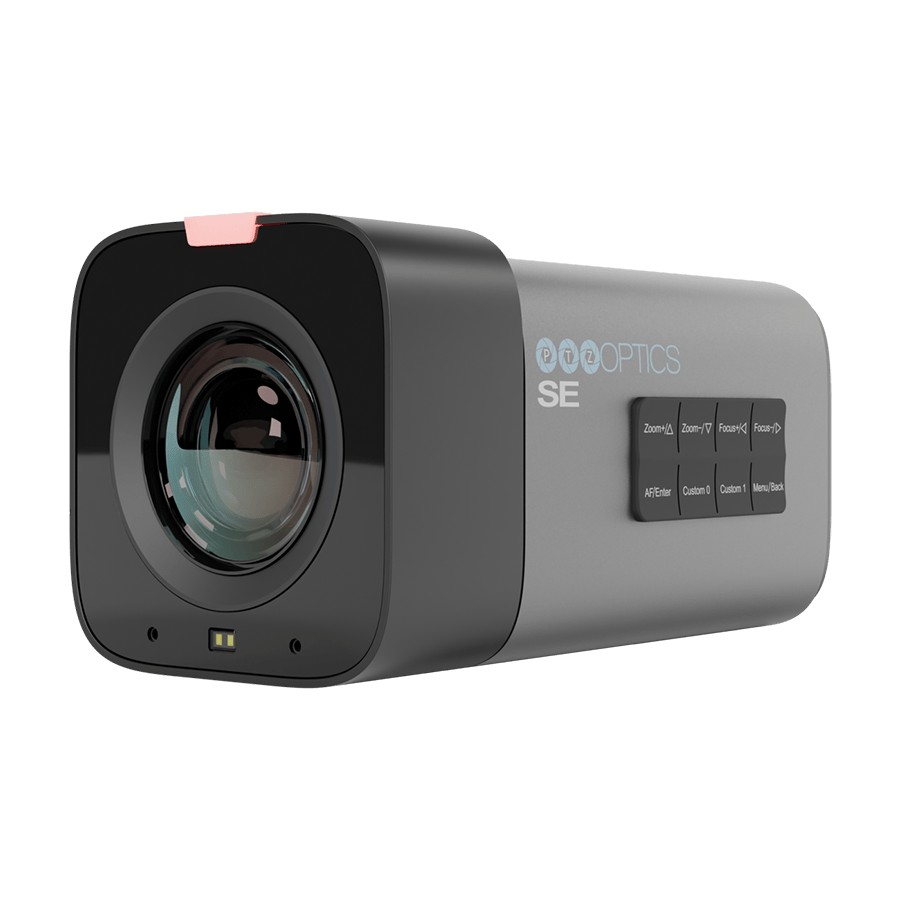

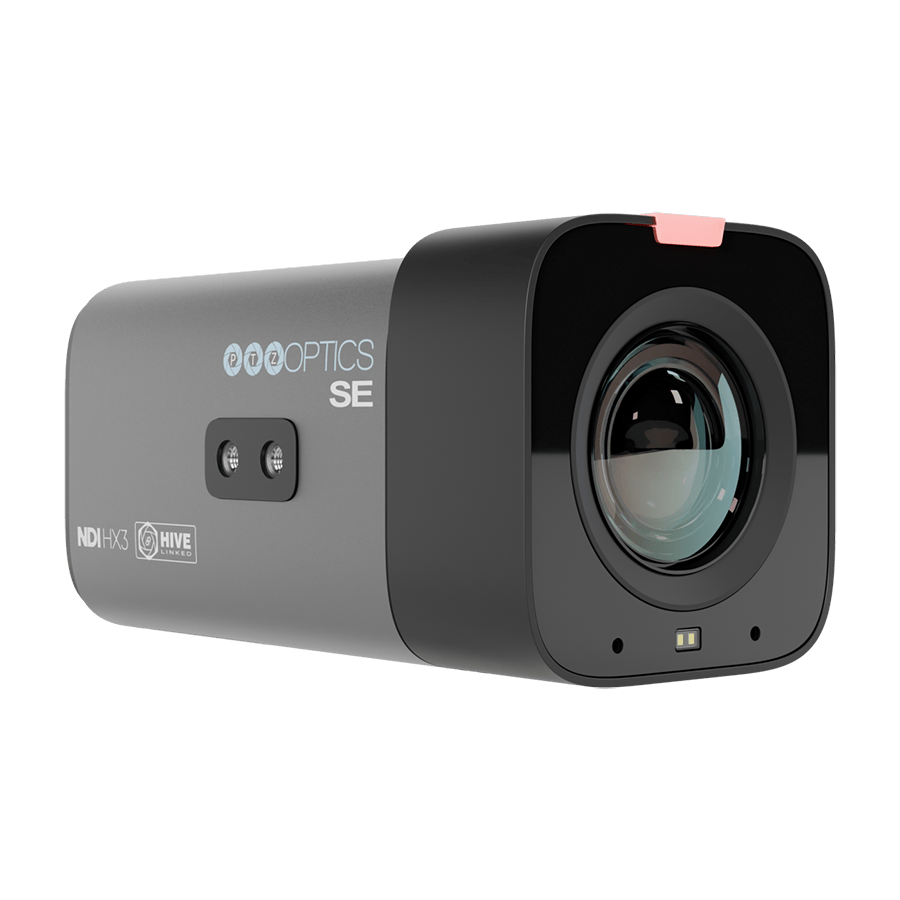

PTZOptics Studio SE 20x (Gray)
Meet the perfect entry into the high-definition fixed camera experience. Whether you’re adding to an existing studio setup or just getting started in videography, PTZOptics’ Studio SE is the perfect choice, providing crisp 1080p resolution and 12X or 20X zoom. Even better, the Studio SE is Hive Linked™ for instant connection to our easy-to-use online platform, Hive Studio, which provides future-ready connectivity and camera control from anywhere. The Studio SE features SDI, HDMI, USB, and IP output and comes native with NDI® HX3, making it simple to add to video production setups, connect directly to a live production switcher, stream over a network, or record through an SDI interface.
Features and Benefits
- 1080p 60fps Resolution
- 12x or 20x Optical Zoom
- Compact & Modern Fixed Design
- Hive-Linked™ for Smooth Integration
- SDI, HDMI, USB, and IP Outputs with NDI® HX3
Camera & Lens
Lens
(12X) 1/2.8 inch, CMOS
(20X) 1/2.8 inch, CMOS
Image Sensor
(12X & 20X) 8MP, Effective Pixels: 8.4M
Digital Zoom
Off (3840x2160), 2X (1920x1080), 4X (960x540) 8X (480x270), 16X (256x144)
Resolution and Frame Rate
HDMI: 1920x1080p-60/59.94/50/30/29.97/25, 1920x1080i-60/59.94/50, 720-60/ 59.94/ 50/ 30/ 29.97
SDI: 1920x1080p-60/59.94/50/30/29.97/25, 1280x720p-60/59.94/50/30/29.97
Optical Lens Focal Length (Zoom)
(12X) f = 4.1mm ~ 49.2mm, F1.8 ~ F2.68
(20X) f = 4.7mm ~ 94mm, F1.6 ~ F3.6
Optical Lens Field of View - Horizontal & Vertical
(12X) H 6.9° ~ 72.5° | V 3.9° ~ 44.8°
(20X) H 3.5° ~ 60.7° | V 1.9° ~ 34.1°
Display Field of View
(12X) 80.2°
(20X) 67.8°
Min Lux
0.5 Lux @ (F1.8, AGC ON)
Shutter
1/30s ~ 1/10000s
Presets
255 Presets
Preset
Accuracy 0.1⁰
Image Flip
Supported
Image Mirror
Supported
Image Freeze
Supported
Physical Specifications
Material
Aluminum, Plastic
Dimensions (L x W x H)
5.7” L x 2.99” W x 3.09” H | 145 mm L x 76 mm W x 78.5mm H
Weight
(12X) 1.5 lbs | 0.68kg
(20X) 1.4 lbs | 0.64kg
Working Environment
Indoor
Humidity Range
10% - 80%
Operating Temperature
14°F ~ 104°F (-10°C ~ 40°C )
Storage Temperature
-40°F ~ 140°F (-40°C ~ 60°C)

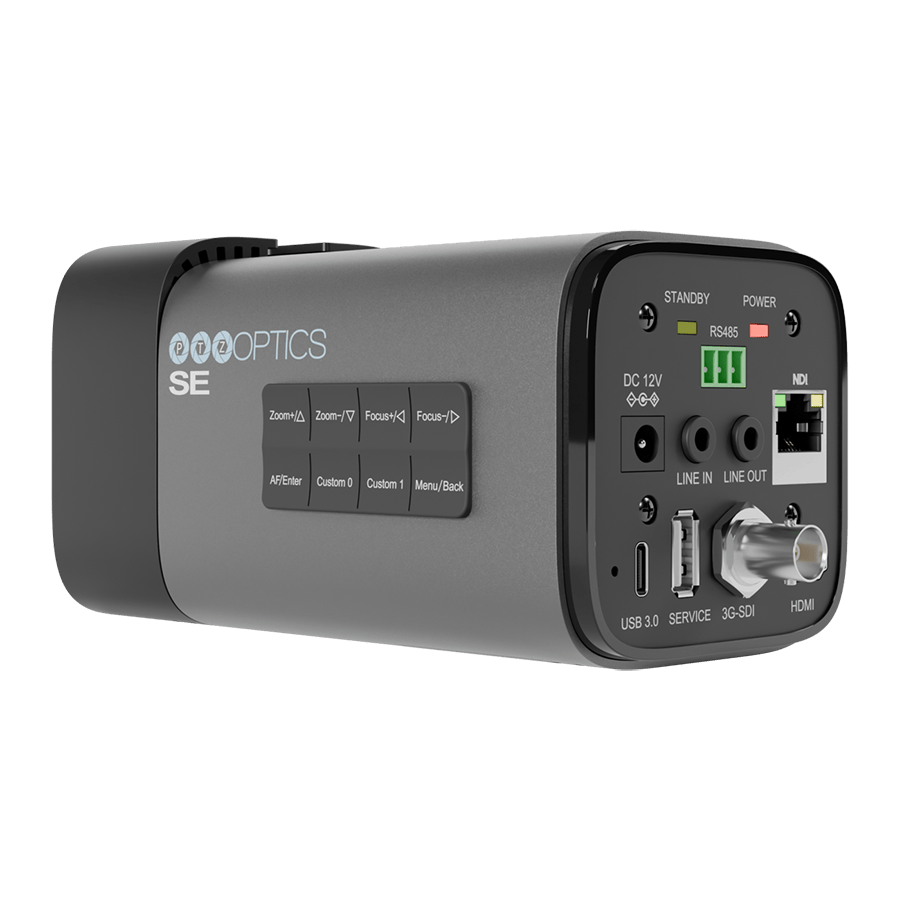

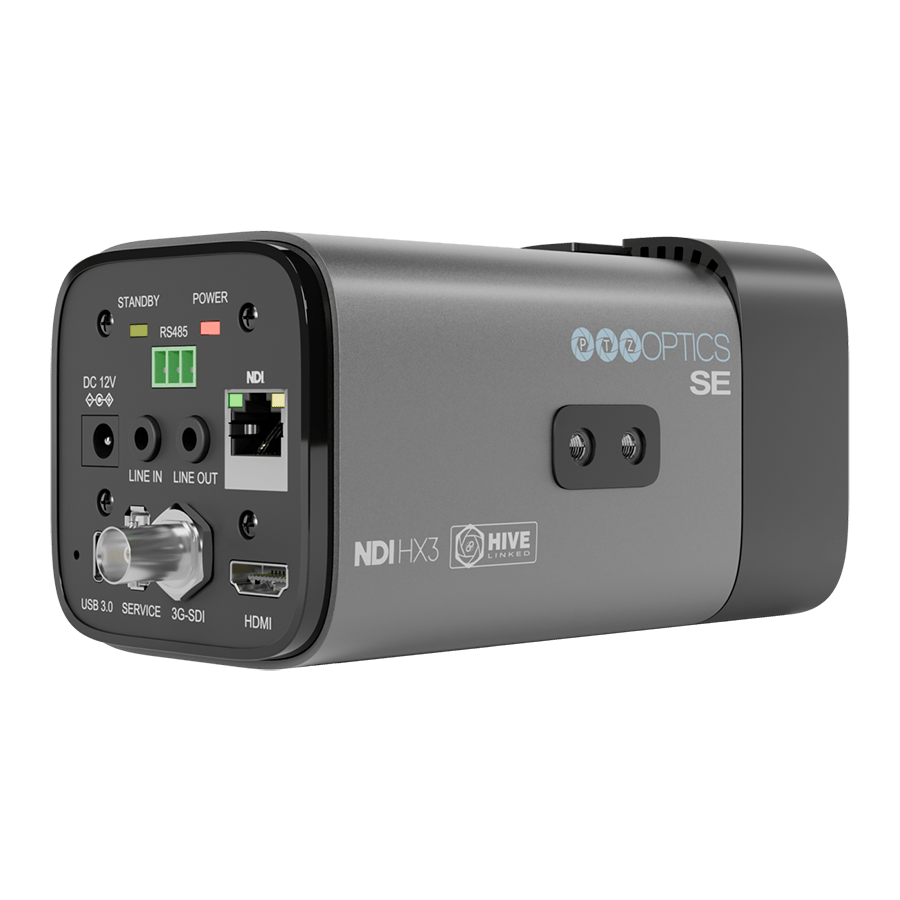

Connections
HD Video Output
1x RJ45: 10/100/1000M Adaptive Ethernet Port | NDI HX2 enabled
1x HDMI: version 2.0
1x USB: 3.0 Type C
1x 3G-SDI: BNC type, 800mVP-p, 75Ω, Along to SMPTE 424M
Audio Interface
1x 3.5mm Line level Input
1x 3.5mm Line level Output
Video Formats
USB
YUY2: Max resolution: 1920x1080p@30
MJPEG: Max resolution: 1920x1080p@30
H.264 AVC & SVC: Max resolution: 1920x1080p@30
H.265: Max resolution: 1920x1080p@30 ( RSTP/NDI HX3 only)
Compression Standards
H.264 / H.265 / MJPEG / YUY2 (H.265 HEVC via RTSP/NDI HX3 only)
UVC Version Supported
UVC 1.1
Supported Protocols
TCP/IP, UDP, HTTP, RTSP, RTMP/RTMPS, ONVIF, NDI HX2, SRT, Multicast, etc.
IR
4x IR Addresses, Max distance 30ft / 9m
Power Supply
JEITA type (DC IN 12V) / PoE (802.3at)
Current Consumption
Max 2A
Power Consumption
Max. 18W
NDAA Compliant
YES
- Studio SE
- AC Power Supply
- Quick Start Guide
- IR Remote
- 2 AAA Batteries
- USB C-A Cable
- Camera Lens Cap
