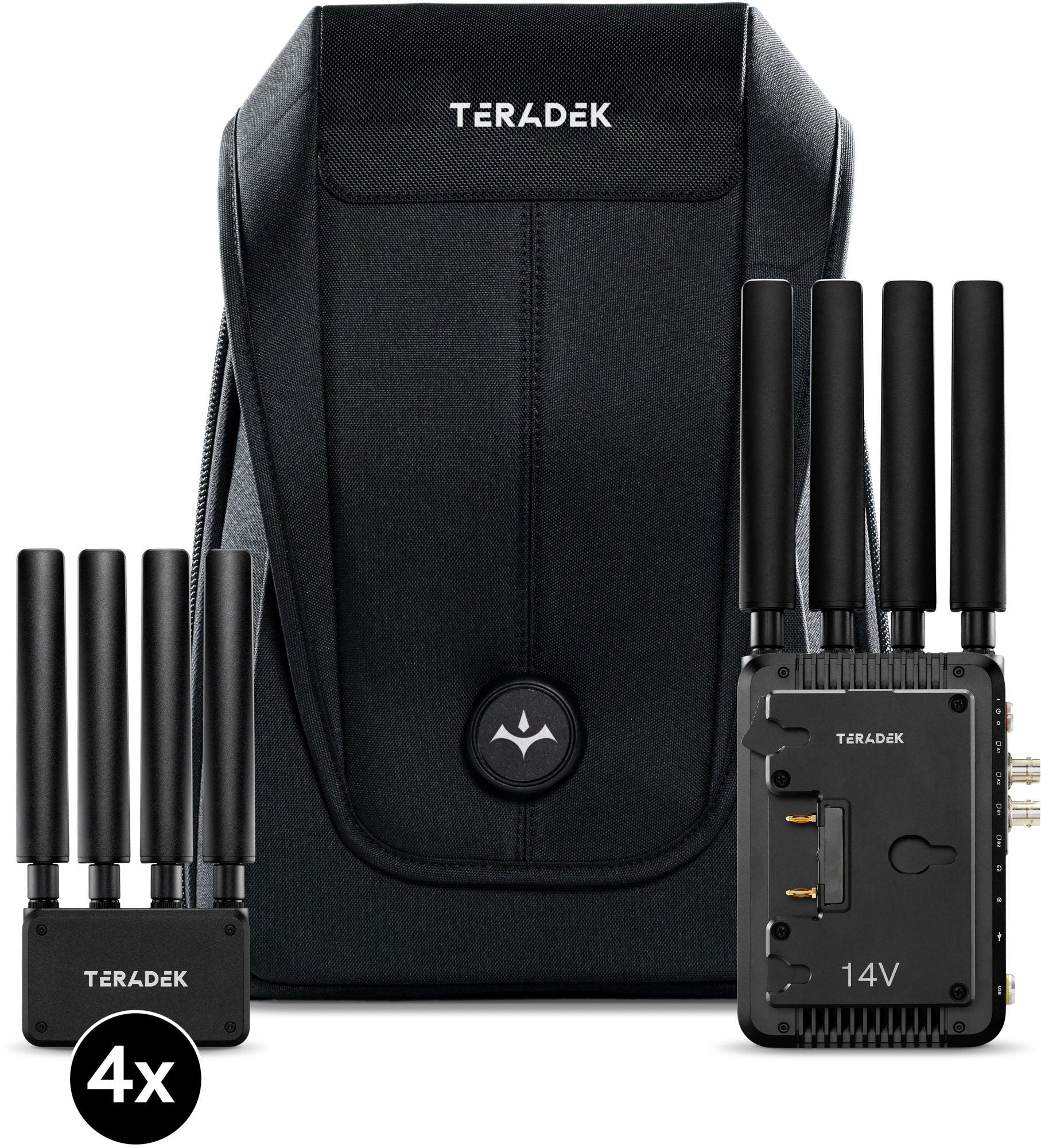

Teradek Prism Mobile Backpack Mk II 4G Gold Mount 4x 5G
Expand your Prism Mobile's capabilities with the Prism Mobile Backpack, the essential accessory to expand your cellular streaming by up to 4 additional 5G modems. Combined with Prism Mobile's built-in cellular connectivity, the backpack provides up to 6 simultaneous cellular connections for super robust streaming from any location. The backpacks are compatible with all Prism Mobiles.
Video
Video Inputs
1 x SD/HD/3G/6G/12G-SDI (75 Ω BNC)
1 x HDMI 2.0 Type-A
Hdr Support
Yes (2020-PQ, 2020-HLG, P3D65-PQ)
Video Outputs
1 x SD/HD/3G/6G/12G-SDI (75 Ω BNC)
Supported Modes
Single Encode, Bi-directional Encode/Decode (additional license)
Bonding
Bonding
Teradek Bonding Protocol, Teradek Reliable Transport (TRT)
Supported Resolutions
Supported Resolutions
4K DCI p23.98/24/25/29.97/30/50/59.94/60
4K UHD p23.98/24/25/29.97/30/50/59.94/60
1080p 23.98/24/25/29.97/30/50/59.94/60
1080i 50/59.94/60
1080PsF 23/24/25/29/30
720p 50/59.94/60
576i 480i
Video Processing
Video Compression
ISO MPEG-4 Part 10: Advanced Video Coding (AVC)/ITU H.264
AVC: Baseline, Main, High
ISO MPEG-H Part 2: High Efficiency Video Coding (HEVC)/ITU H.265
HEVC: Main
Supported Video Bitrate
250 kbps to 85 Mbps
Video Format Conversion Support
Built in video scaler and deinterlacer
Number Of Encoder Streams
Up to one 4KDCI p60 4:2:2 10bit
Color Correction
CDL/1024 1D LUT (supports 10-bit color)
33x33x33 3D LUT (supports 10-bit color)
Protocol Support
Network Protocols
TCP/IP, UDP, HTTP, DHCP, NTP, TLS, IGMP
Supported Video Transport Protocols
Teradek Reliable Transport (TRT)
Secure Reliable Transport (SRT)
RTMP/RTMPS
MPEG-TS, DASH (UDP, TCP, TCP Server, Multicast)
RTSP/RTP
RIST
HLS Client
Integrated CDNs (YouTube, Facebook, Vimeo),
WHIP
Remote Control
Teradek Core Cloud, Private SDK
Audio Processing
Audio Compression
AAC-LC
Audio Bitrate
32kbps to 512kbps
Inputs
Audio Input
Embedded over SDI
3.5mm Stereo Line Level Analog or Microphone in, adjustable gain
Outputs
Audio Output
3.5mm Stereo Headphone output
Analog 3.5mm Line Level, USB-A Headset or Audio Interface (< 1.5A)
Physical
Dimensions
5.9"W x 3.9"D x 1.3"H [162 x 92 x 35mm]
Weight
23.4oz [664g] without plates; 30.5oz (864g) with plates
Construction
Milled Aluminum
Mountability
Camera-back, Gold, Gold 26V and V-Lock mounts. Can be mounted with 1/4" 20 mounting hole
Interfaces
Configuration Interfaces
Core Cloud for remote device management
Feature-rich Web UI for local device management
Intuitive iOS configuration app
OLED Status Display w/ Nav control buttons
Cellular
2x Internal Node II LTE Modems (CBRS supported)
Recording Storage
SD Card - Full size, USB Drive, NFS
Cloud Services
Native Sync with the following:
Core Cloud
Frame.io
Sony Ci
Sony C3 Portal
Avid
PIX
Moxion
Usb Interface Functionality
1 x Powered LEMO with Node Modem support
1 x Powered USB-A with Node and external storage support
Network
Ethernet
2 x 10/100/1000 BASE-T Gigabit Ethernet (RJ45)
Wireless
WiFi: 2.4/5GHz 802.11 a/b/g/n/ac/ax MIMO - BLE for Network Configuration
Power
Power Input
2 Pin Circular Locking Connector
Nominal Power Consumption
20W Nominal, 36W Max
Auxilary Power Input
6-28V DC
- 1 x Prism Mobile Mk II Gold Mount
- 1 x Backpack Bonding Assembly with Cabling
- 4 x Node 5G
- 12 x Long Multi-band SMA Antenna
- 12 x Short Multi-band SMA antenna
- 1 x 3.0A PTAP power supply
