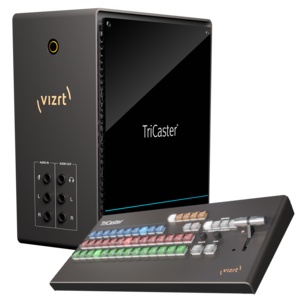

Vizrt TriCaster® TC410 Plus
True broadcast-quality shows and more,
anywhere production takes you.
TriCaster® TC410 Plus is an integrated video production system designed to create multi-platform productions live and on-demand. Your shows will be polished, engaging to viewers through social and second-screen experiences, deliver revenue opportunities, and extend your brand. TriCaster 410 Plus is scaled for smaller racks and mobile units and gives you an end-to-end IP workflow from acquisition to delivery.
TriCaster® TC410 Plus is an integrated video production system designed to create multi-platform productions live and on-demand. Your shows will be polished, engaging to viewers through social and second-screen experiences, deliver revenue opportunities, and extend your brand. TriCaster 410 Plus is scaled for smaller racks and mobile units and gives you an end-to-end IP workflow from acquisition to delivery.
Revolutionize your mobile and studio productions with:
- Mid-size production power including 4 M/E mixing, up to 8 external inputs, and 4 mix outputs
- NDI® integration for video, audio, and data transmission over IP
- Real-time social media publishing
- Streaming to Facebook Live, Twitch, and more
- Multi-channel recording and internal storage
- Video playback without any additional hardware
- Integrated multiviewers for monitoring
- Multi-channel audio mixing
- Built-in video playback, data-driven graphics, compositing, effects, and more.
- Mid-size production power including 4 M/E mixing, up to 8 external inputs, and 4 mix outputs
- NDI® integration for video, audio, and data transmission over IP
- Real-time social media publishing
- Streaming to Facebook Live, Twitch, and more
- Multi-channel recording and internal storage
- Video playback without any additional hardware
- Integrated multiviewers for monitoring
- Multi-channel audio mixing
- Built-in video playback, data-driven graphics, compositing, effects, and more.
Reach Diverse Viewers
Live stream to multiple destinations simultaneously, including Facebook Live, Microsoft Azure, Periscope, Twitch, Ustream, YouTube Live, and more
Share media to multiple user accounts on your favorite social networks, like Facebook, Imgur, LinkedIn, Twitter, Vimeo, YouTube, and more
Customize Workflows
- Connect cameras directly or expand your available live sources over IP
- Flex your workspace and control to suit a single operator or a small team
- Output to one or multiple destinations simultaneously—on site or across the network
- Connect cameras directly or expand your available live sources over IP
- Flex your workspace and control to suit a single operator or a small team
- Output to one or multiple destinations simultaneously—on site or across the network
Automate Tasks
Record common moves with macros, and expand your production possibilities while reducing any on-air mistakes.
Streamline sequences with a single action when they’re too complicated to execute live. Use MIDI control, on-camera hotspots, and PTZ cameras to make smaller productions look like larger shows.
World-Class Live Virtual Sets
Save on studio and set expenses without sacrificing production value. With integrated LiveSet™ technology, TriCaster® TC410 Plus can transport your talent into professionally-designed virtual environments, complete with multiple angles, virtual camera movements, real-time reflections, specular highlights, animated lens flares and stunning augmented reality effects that blur the line between virtual and reality. Select from more than 30 included virtual sets, purchase your choice of premium ready-made sets, or create endless custom environments with the optional Virtual Set Editor software (sold separately).
Save on studio and set expenses without sacrificing production value. With integrated LiveSet™ technology, TriCaster® TC410 Plus can transport your talent into professionally-designed virtual environments, complete with multiple angles, virtual camera movements, real-time reflections, specular highlights, animated lens flares and stunning augmented reality effects that blur the line between virtual and reality. Select from more than 30 included virtual sets, purchase your choice of premium ready-made sets, or create endless custom environments with the optional Virtual Set Editor software (sold separately).
- 1080p: 59.94, 50, 29.97, 25, 24, 23.976
- 1080i: 59.94, 50
- 720p: 59.94, 50, 29.97, 25
- 576i 25
- 480i 59.94
1Available frame rates determined by session video standard (NTSC or PAL)
1 x HDMI multiviewer
1 x DisplayPort multiviewer
- 1 x Mix/Effect channel per bus with support for up to 2 sources
- 2 x KEY layers per bus
- 2 x DDR
- 2 x GFX
- 1 x Sound
- 5 x animation buffers
- 10 x graphic buffers
- 8 x input keyers
- 4 x media player keyers
- 4 x M/E keyers
- 1 x PREVIZ keyer
- 15 x buffer keyers
- 16 x configurable COMP presets per bus
- Attach to control panel buttons, keyboard shortcuts, hotspots, MIDI, and X-keys® buttons or GPI triggers
- Attach to internal events and state changes, including audio, media playback, tally, and specific switcher actions
- Supports control via web-based interface
- 4 x QuickTime® archival video recorders (XDCAM HD compatible, 4:2:2 encoding, 24-bit audio, with timecode)2
- 2 x H.264 local video recorder (multiple profiles)
- Ability to trigger up to 6 additional recordings on select NDI-enabled devices
- 1 x MP3 audio recorder
- Capacity varies by format, resolution, and file specification
- Supports recording to external storage via USB 3.0
- Supports shared storage integration and third-party partner solutions
1 x Balanced XLR stereo pair (Line)
3 x Balanced 1/4” stereo pairs Line)
Support for USB audio device input via compatible WDM audio drivers
1 x Balanced XLR stereo pair
1 x Balanced 1/4” stereo pair
1 x Stereo ¼” (phones)
Embedded audio supported for all NDI® input and output video signals
Integrated support3 for Dante® networking protocol from Audinate® Support for AES67 protocol via compatible WDM audio drivers 3 Requires Dante Virtual Soundcard license from Audinate (sold separately) 4Requires third-party virtual sound card license (sold separately)
- Video: AVI, DV, DVCPro, DVCProHD, FLV, F4V, H.263, H.264, MOV, MKV, MJPEG, MPEG, MP4, WMV, WebM, and more
- Image: PSD, PNG, TGA, BMP, JPEG, JPEG-XR, JPEG2000, EXR, RAW, TIF, WebP, and more
- Audio: AIFF, MP3, WAV, and more
System Drive 250GB SSD
- 19.0 x 3.5 x 19.57 in (48.3 x 8.9 x 49.7 cm) with rack ears attached
